Condenser Fan: Testing and Inspection

Condenser Fan Motor Inspection

Condenser Fan Motor Inspection:

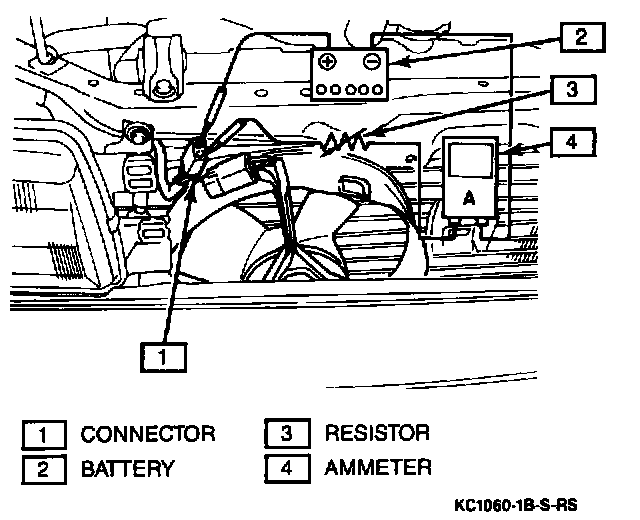

Disconnect the two-cavity connector from the fan, and using a wire harness and ammeter, apply battery voltage to the connector. Confirm a smooth fan rotation with a specified current flow of 6.7±0.7 amps. Relace the motor if it is found to be defective.
