Compressor Clutch Controls

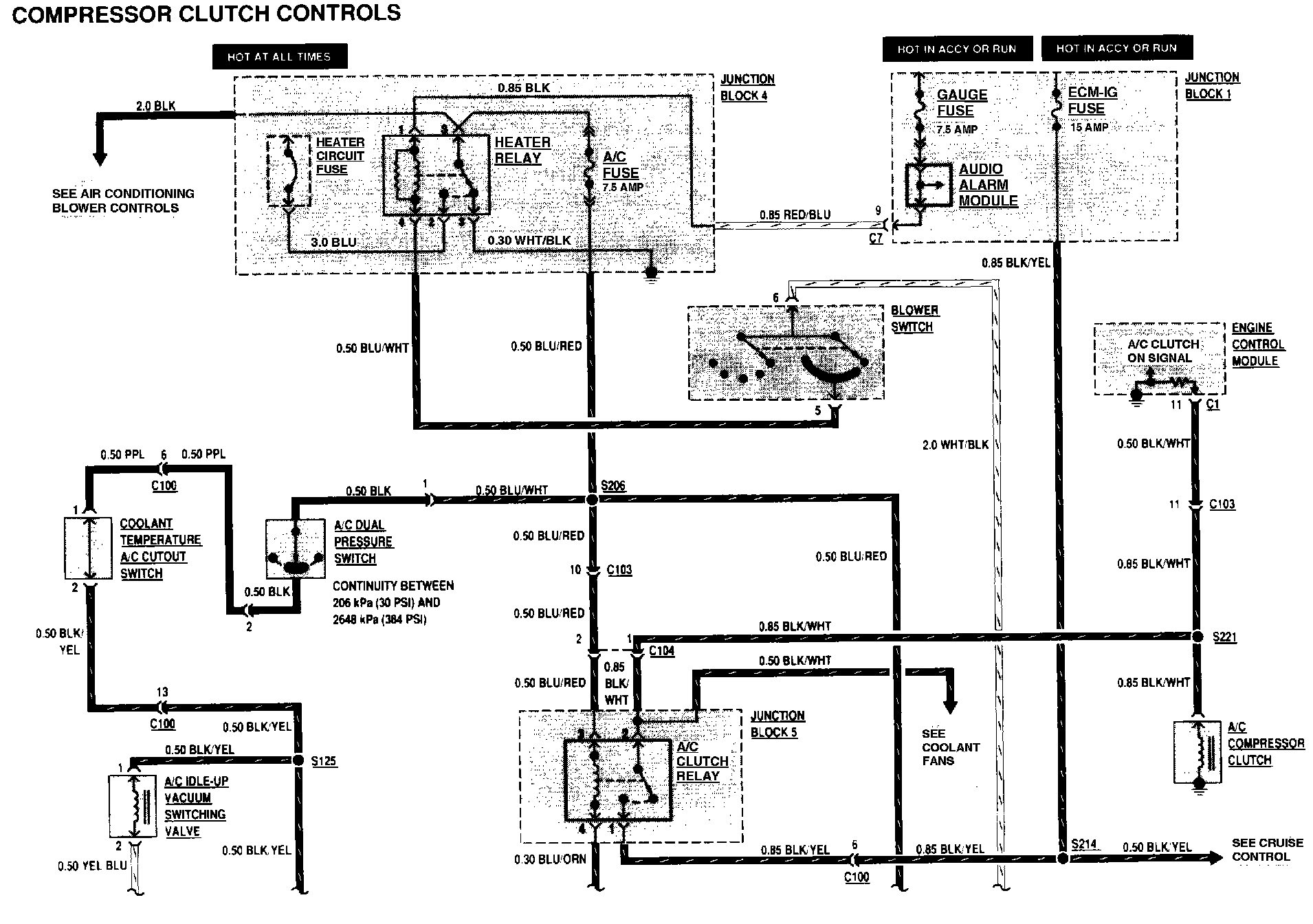

Compressor Clutch Controls (1 Of 2):

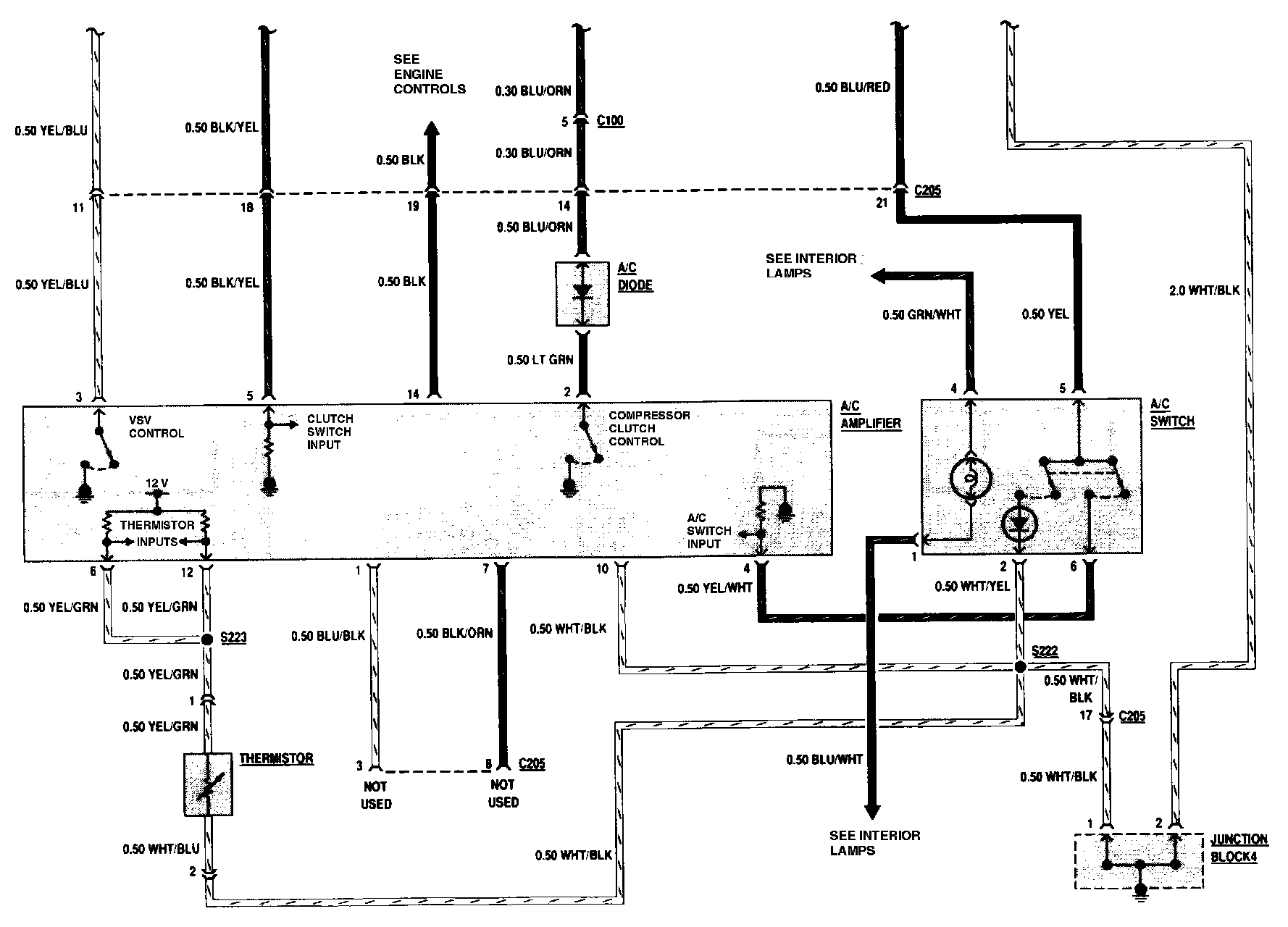

Compressor Clutch Controls (1 Of 2):
