Home >> Geo >> 1990 >> Prizm L4-1600cc 1.6L DOHC VIN 5 >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> System Diagnosis

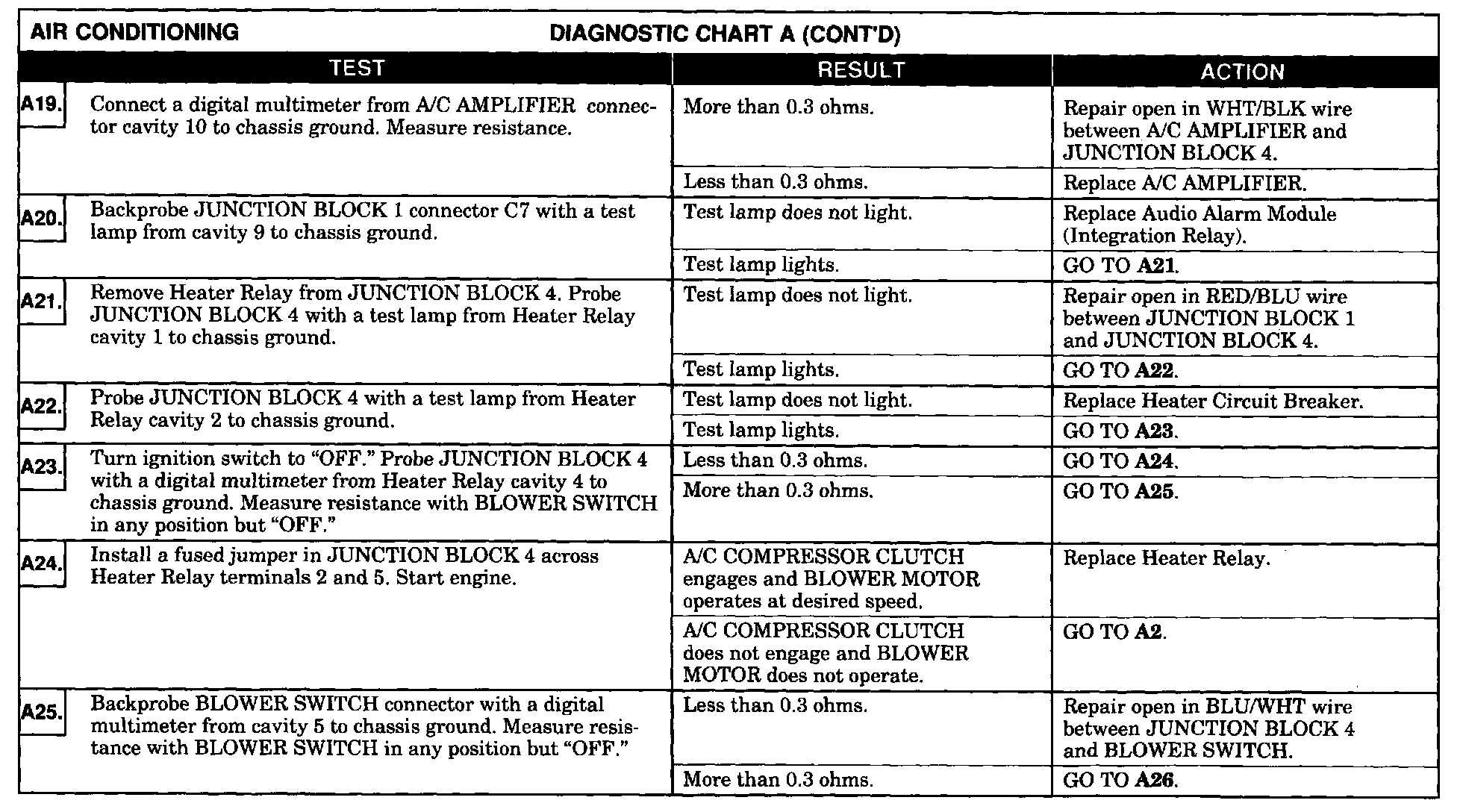

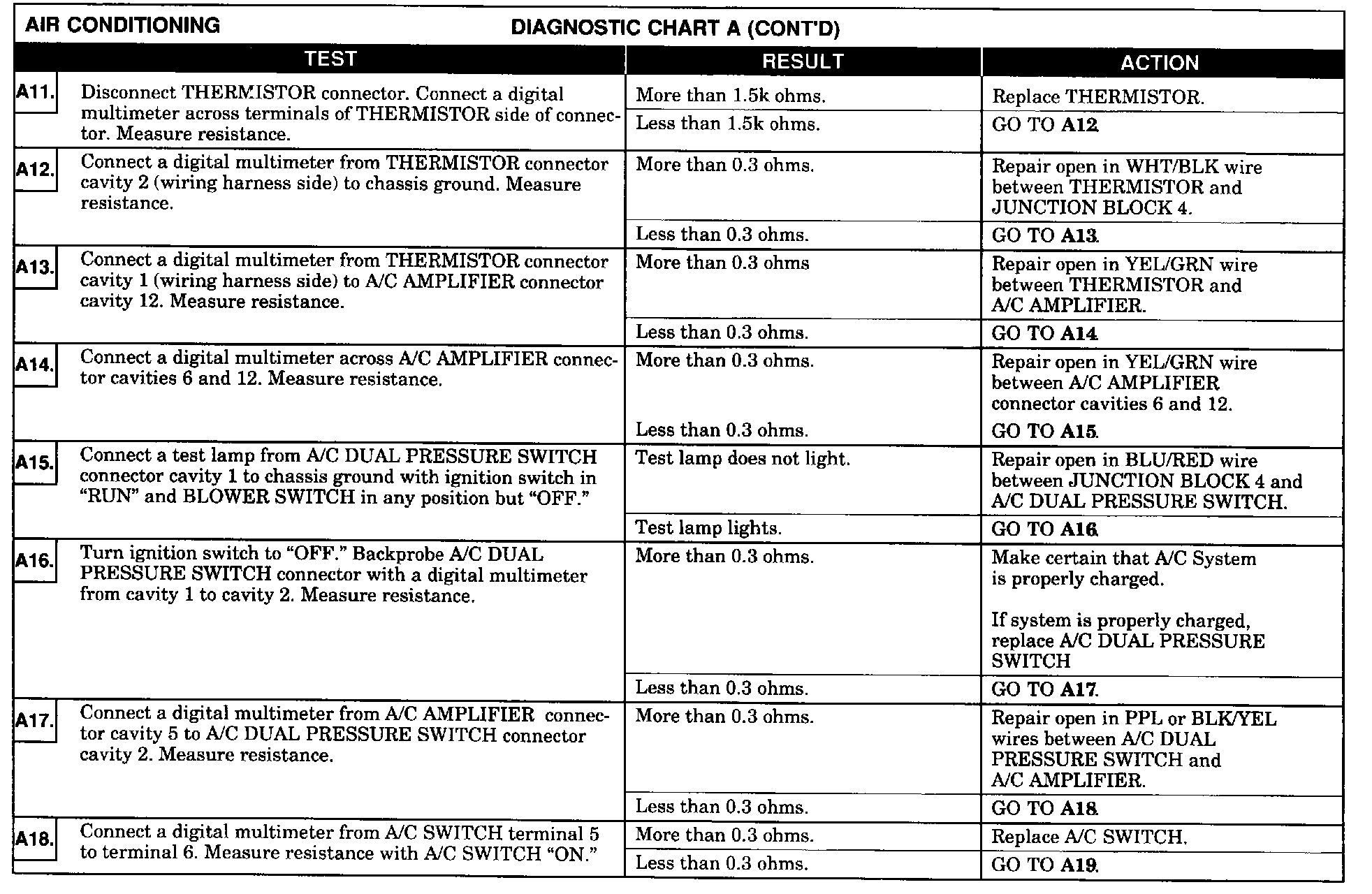

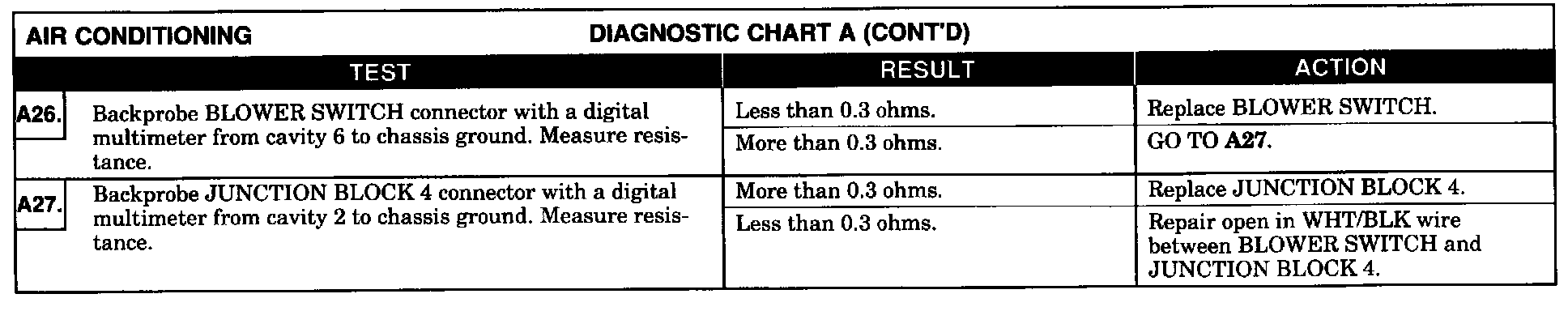

System Diagnosis

1 Of 5:




2 Of 5:




3 Of 5:




4 Of 5:




5 Of 5:
