Home >> Geo >> 1990 >> Prizm L4-1600cc 1.6L DOHC VIN 5 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Standard

Standard

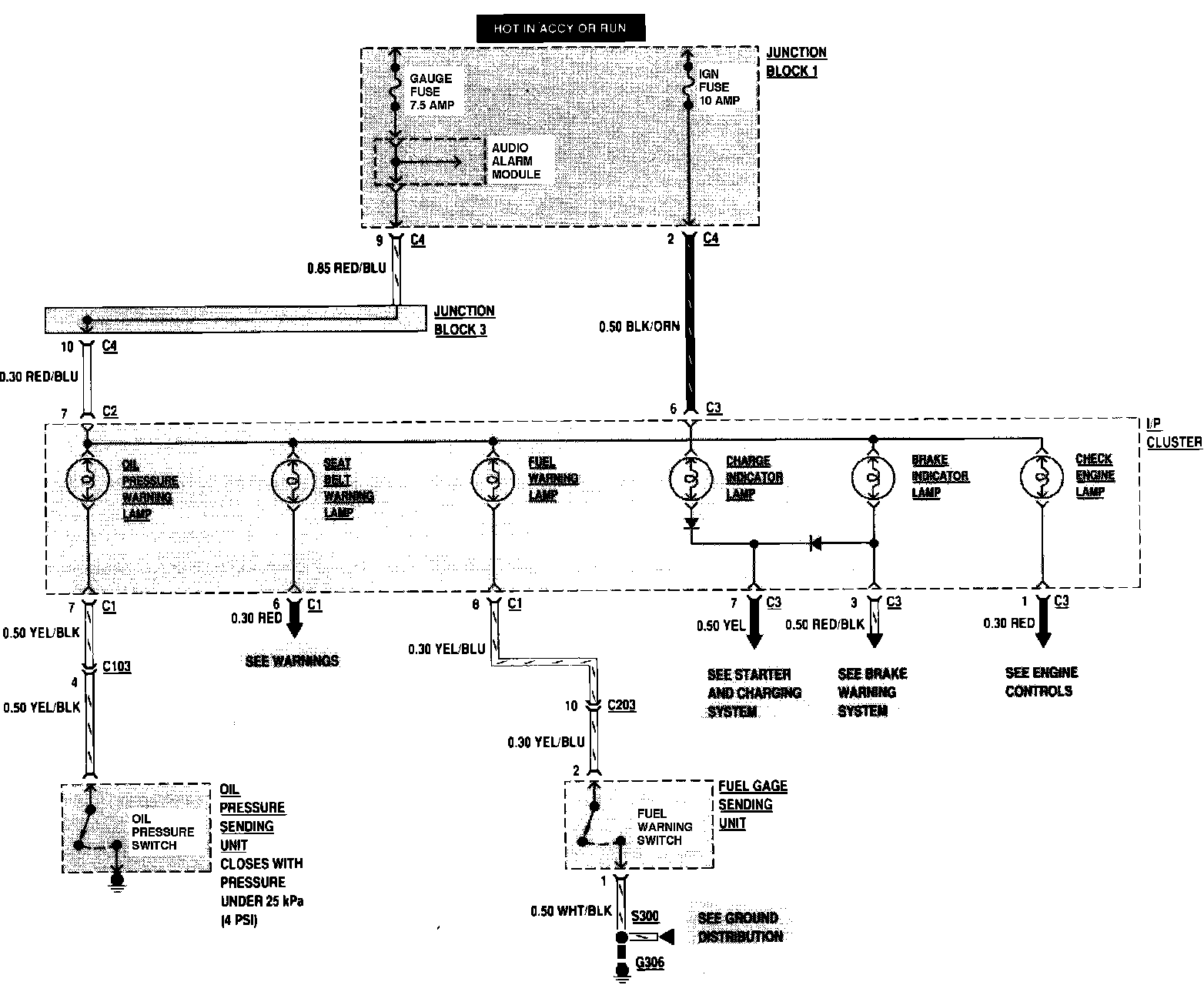

Warnings/Indicators (Standard):

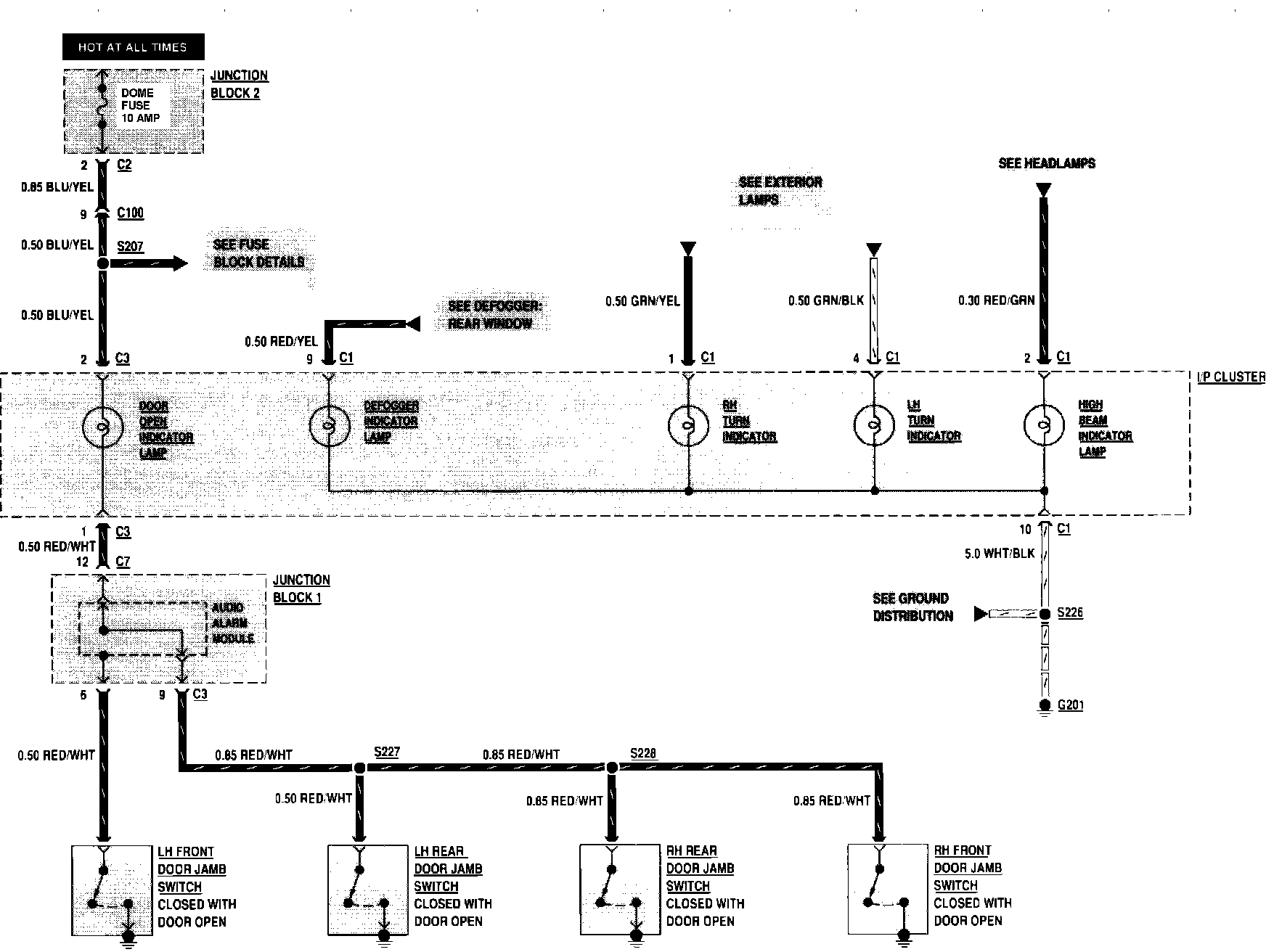

Instrument Panel: Indicators (Standard):



Instrument Panel: Indicators (Standard):
