Timing Component Alignment Marks: Locations

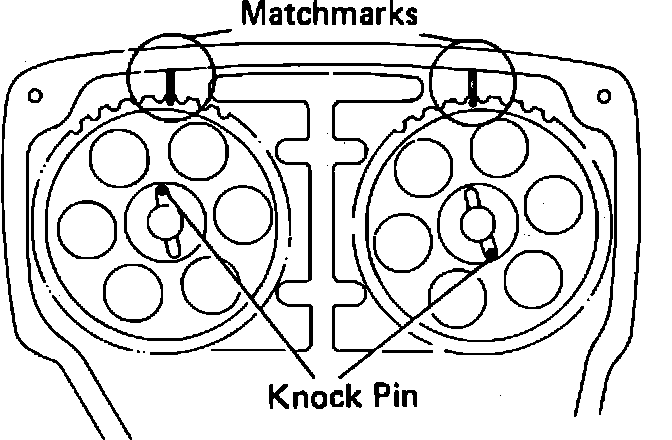

Fig. 27 Camshaft Timing Pulley Alignment.:

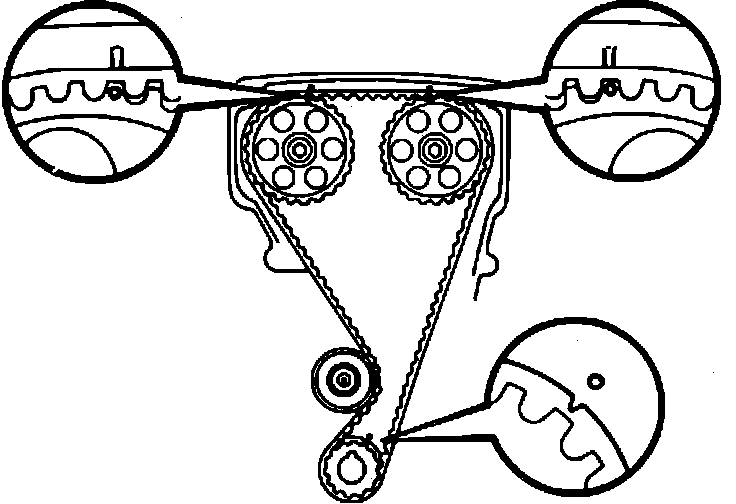

Fig. 28 Belt & Pulley Alignment.:

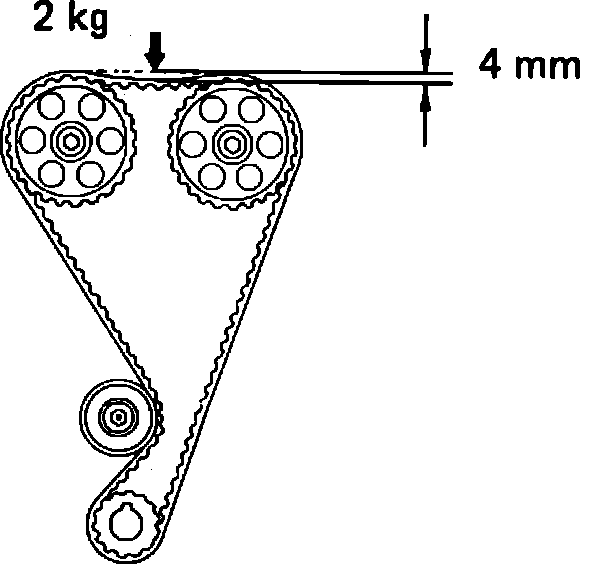

Fig. 29 Measuring Belt Deflection. GSi Models w/16 Valve Engine:

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

For complete Timing Belt Removal and Installation information, Service and Repair
