Home >> Geo >> 1990 >> Prizm L4-1600cc 1.6L DOHC VIN 5 >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Ignition Controls

Ignition Controls

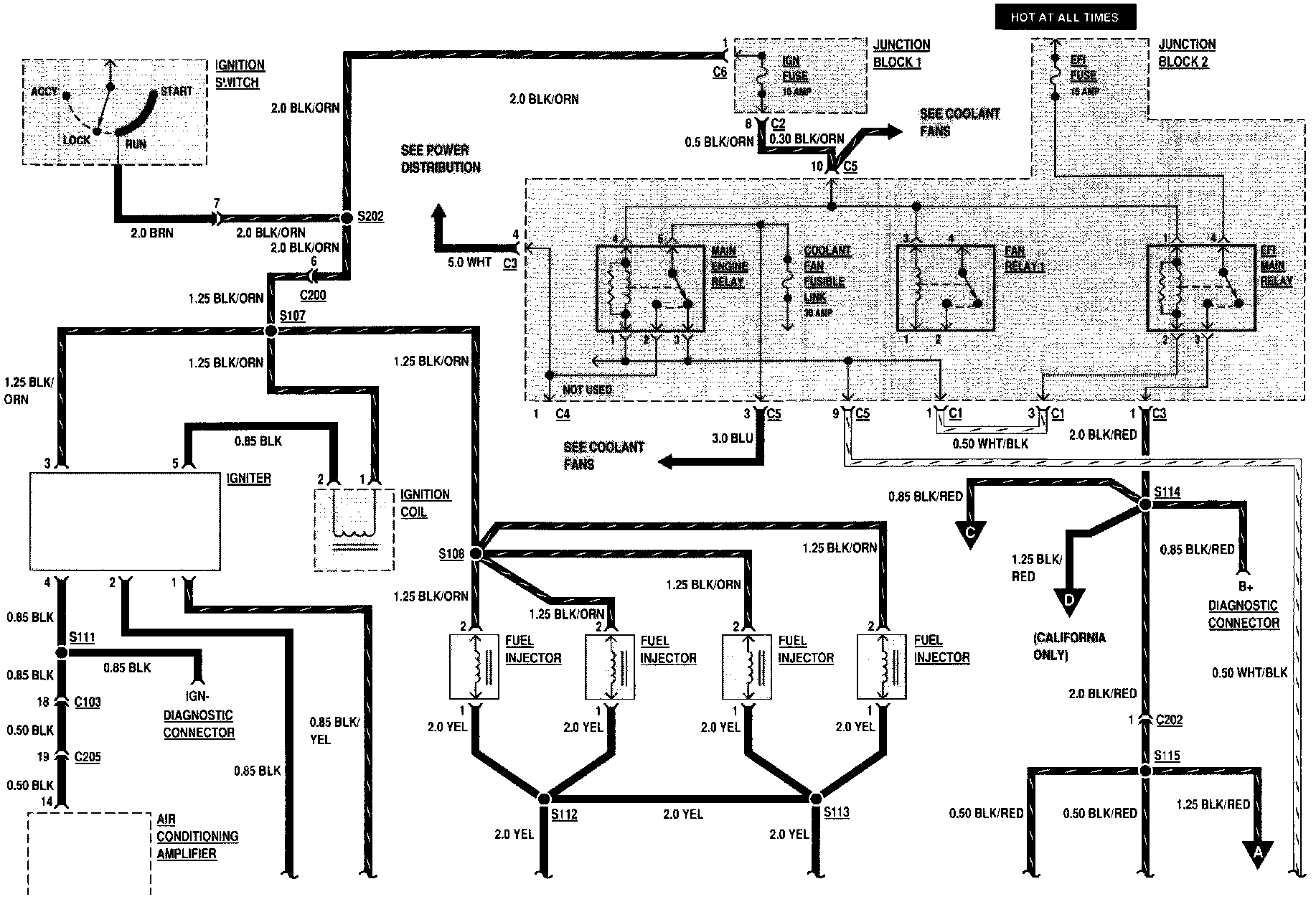

Fuel Injector Controls and Ignition System Wiring Diagram:

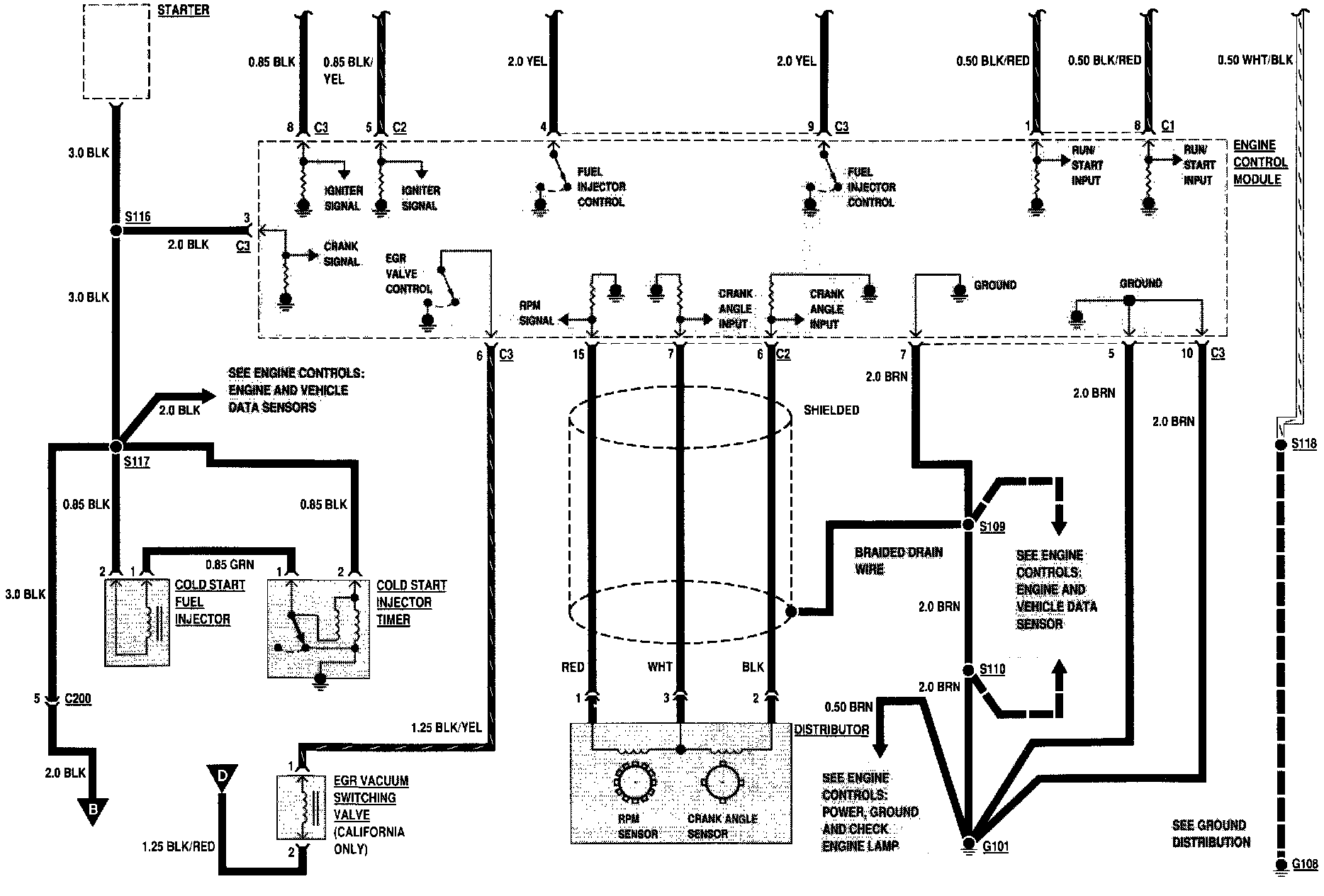

Fuel Injector Controls and Ignition System Wiring Diagram:
