Positive Crankcase Ventilation: Testing and Inspection

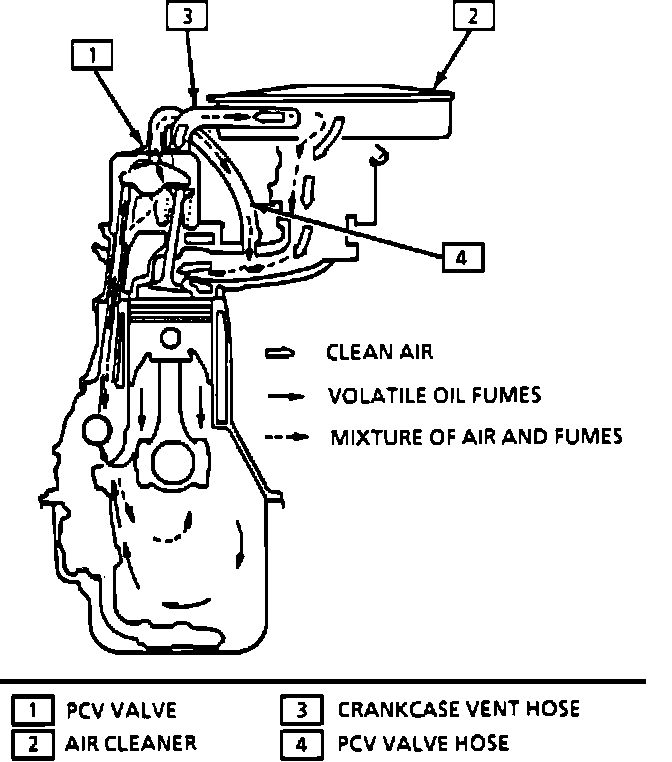

Positive Crankcase Ventilation (PCV) System:

1. Remove PCV valve from the valve cover.
2. Run the engine at idle.
3. Place your thumb over end of valve to check for vacuum. If there is no vacuum at valve, check for plugged hoses, manifold port or PCV valve. Replace plugged or deteriorated hoses.
4. Turn the engine "OFF" and remove PCV valve. Shake valve and listen for the rattle of needle inside the valve.
5. If valve does not rattle, replace valve.

NOTE With this system, any blow-by in excess of the system capacity (from a badly-worn engine, sustained heavy load, etc.) is exhausted into the air cleaner and is drawn into the engine. Proper operation of the PCV system is dependent upon a sealed engine. If oil slugging or dilution is noted, and the PCV system is functioning properly, check engine for possible cause and correct to ensure that system will function as intended.
