Home >> Geo >> 1990 >> Prizm L4-1600cc 1.6L DOHC VIN 6 >> Repair and Diagnosis >> Cruise Control >> Cruise Control Switch >> Testing and Inspection >> Engage Switch "Resume/Accel" Circuit

Engage Switch "Resume/Accel" Circuit

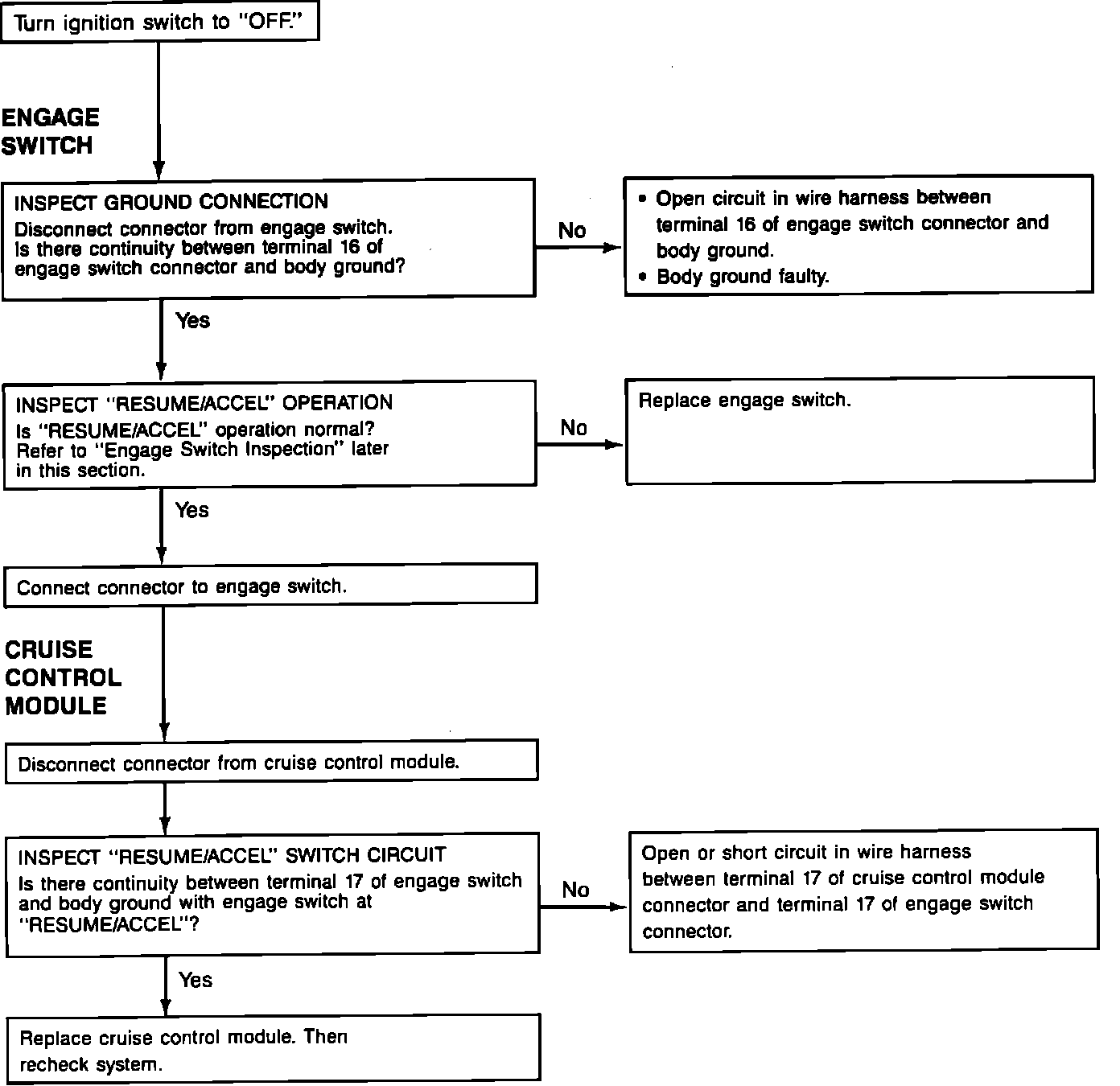

Fig. 6 Engage Switch ``Resume/Accel'' Circuit Diagnosis:
