Home
>>
Geo
>>
1990
>>
Storm L4-1600cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Air Bag Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

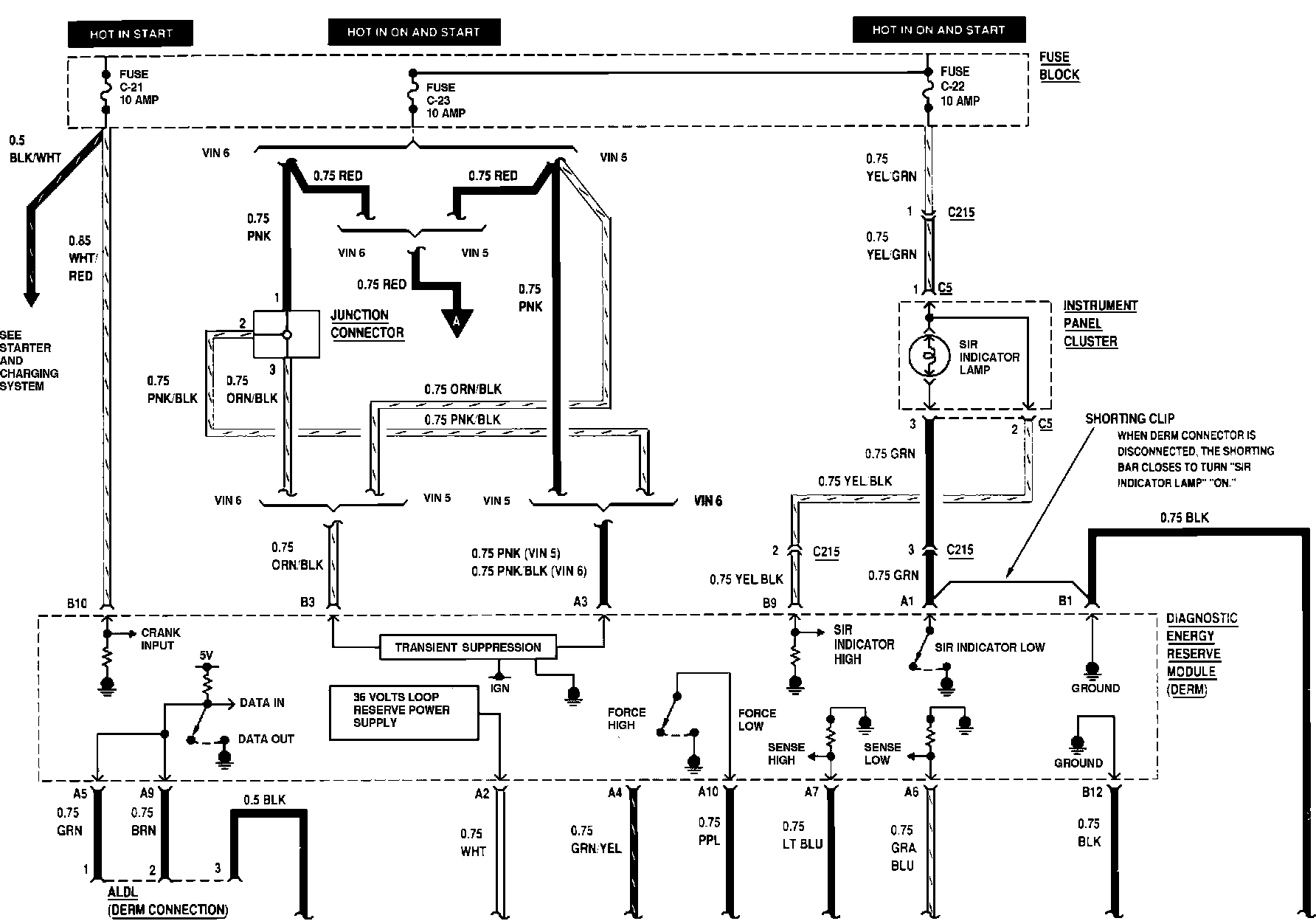

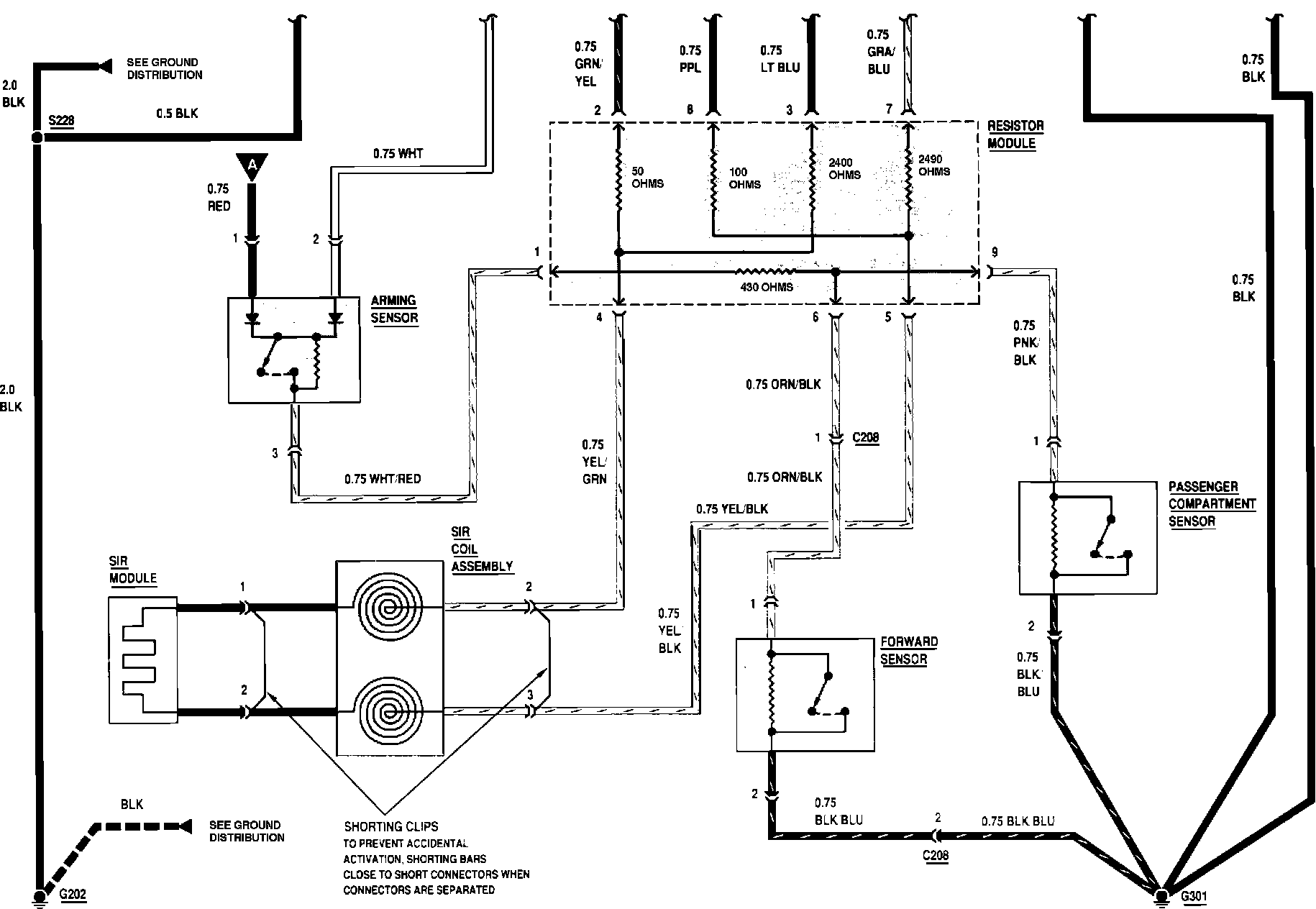

Air Bag (SIR):
Air Bag (SIR):
