System Specifications

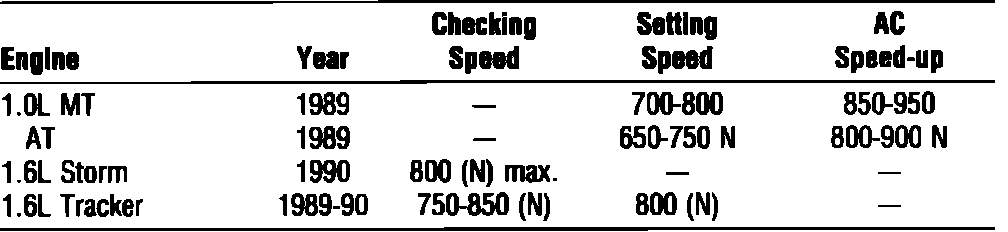

IDLE SPEED W/COMPUTER CONTROL:

1.0L TBI: Install a fuse into diagnostic connector in fuse block. Set idle to specified value. Turn AC on and adjust speed-up to specified value
1.6L Tracker: Set idle to specified value.
