M/T - Shift Light Check Chart 8C Revised

9218chevy08

Number: 90-288-6E

Section: 6E

Date: July 1990

Corporate Bulletin No.: 016524


Subject:
DRIVEABILITY AND EMISSIONS REVISED CHART C-8B FACING PAGE


Model and Year:
1990 STORM WITH 1.6L (VIN CODE 5) ENGINE


TO: ALL CHEVROLET DEALERS

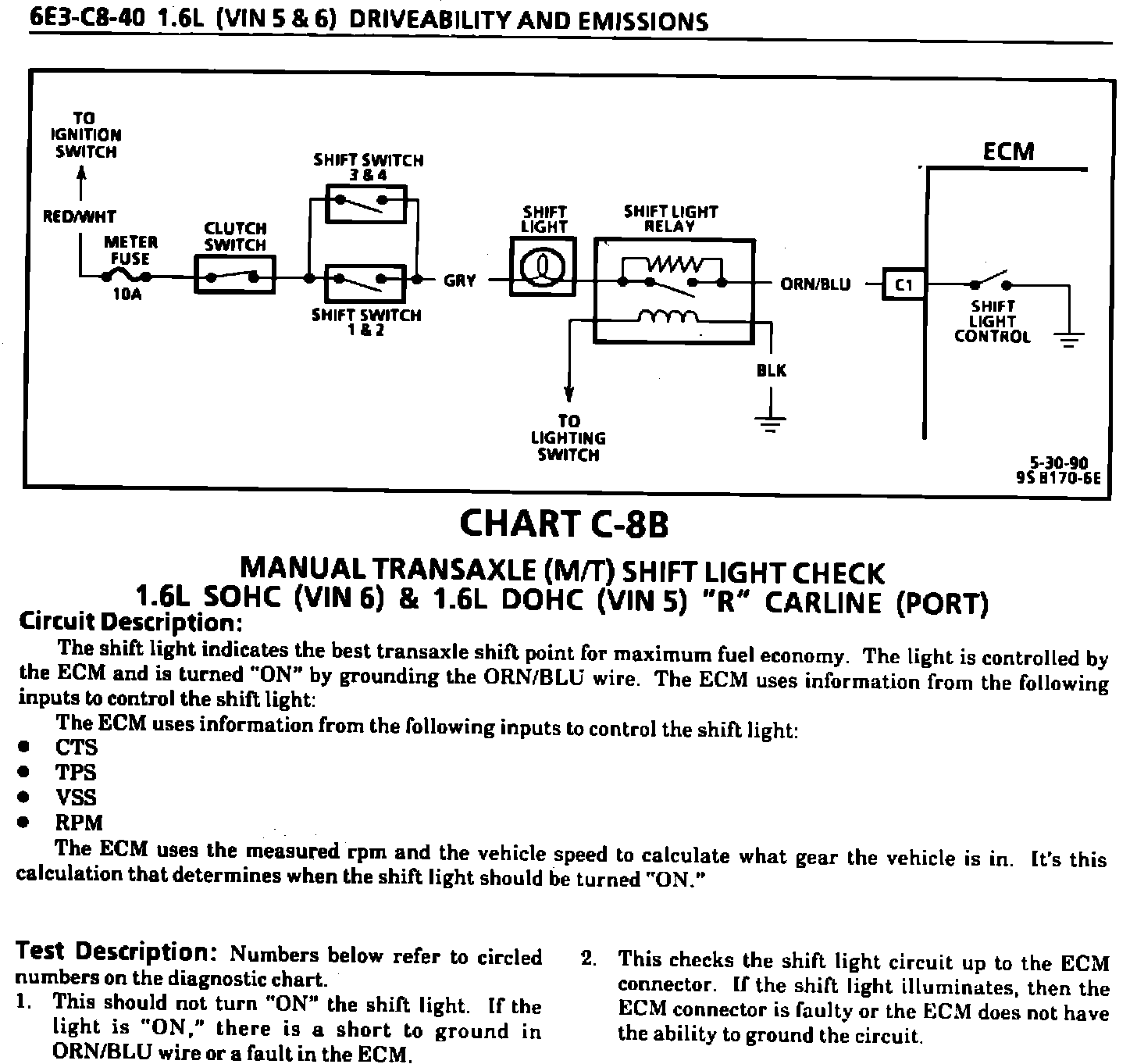

This bulletin serves to revise the Chart C-8B facing page on Page 6E3-C8-40 in "Driveability And Emissions" Section 6E3 in the 1990 Geo Storm 1.6L (VIN 5 and 6) "R" Carline (Port) Service Manual.

The chart reflects the correct shift light diagram and replaces the existing page in the 1990 Geo Storm Service Manual.
