SIR - Revised Chart A-1 for DTC's 23/24/31/34/42/51

9218chevy06

Number: 90-185-9

Section: 9

Date: March 1990

Corporate Bulletin: 019006


Subject:
SUPPLEMENTAL INFLATABLE RESTRAINT REVISED CHART A-1, CODES 23/24/31/34/42/51


Model and Year:
1990 R CAR WITH 1.6L (VIN CODE 5) ENGINE


TO: ALL CHEVROLET DEALERS

This bulletin serves to revise pages in Section 9J-A "Supplemental Inflatable Restraint (SIR) System Diagnosis" in the 1990 Geo Storm 1.6L DOHC (VIN 5) "R" Carline Service Manual.

The revised pages are listed below:








Page 9J-A-13 - Chart A-1

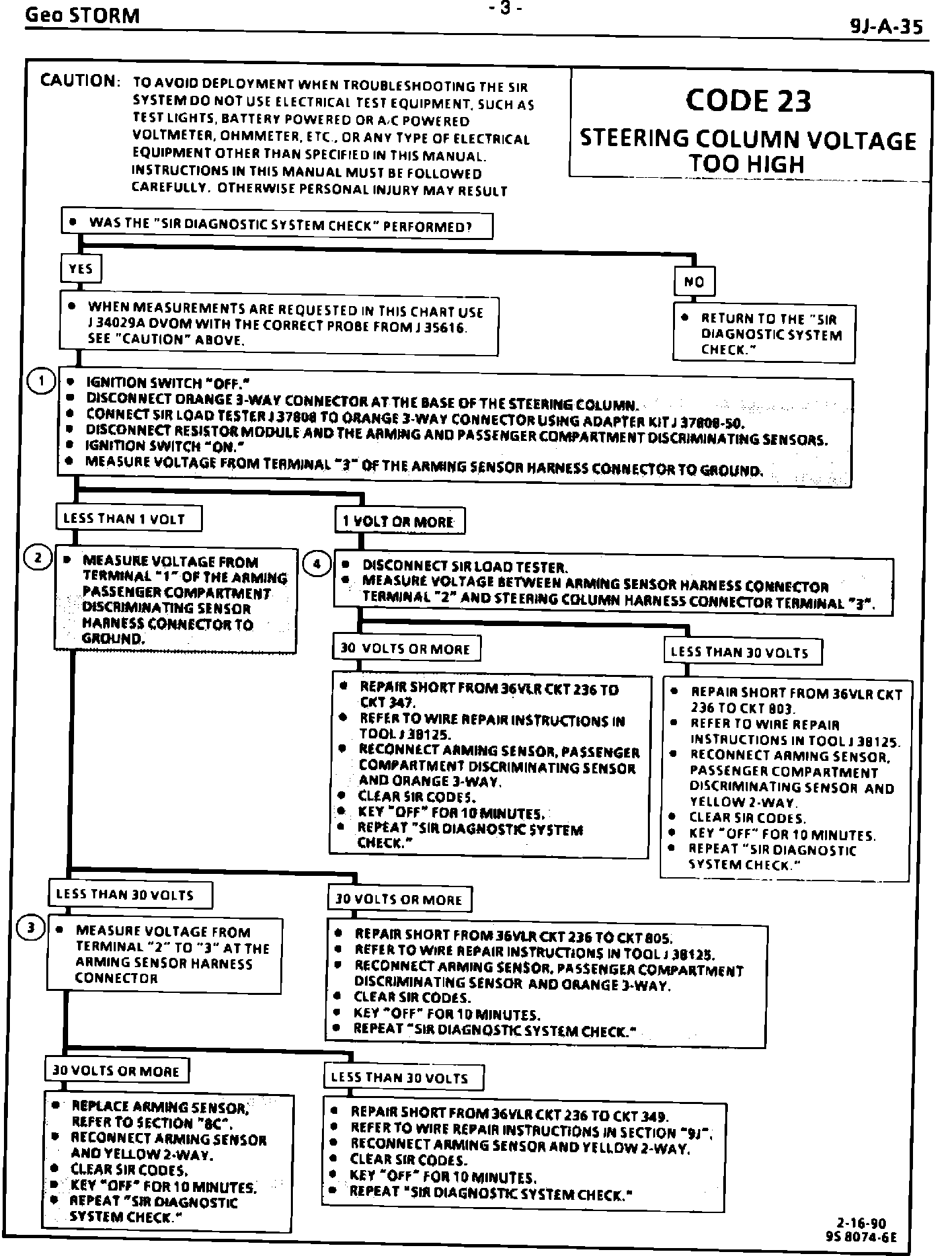

Page 9J-A-35 - Code 23





Page 9J-A-37 - Code 24

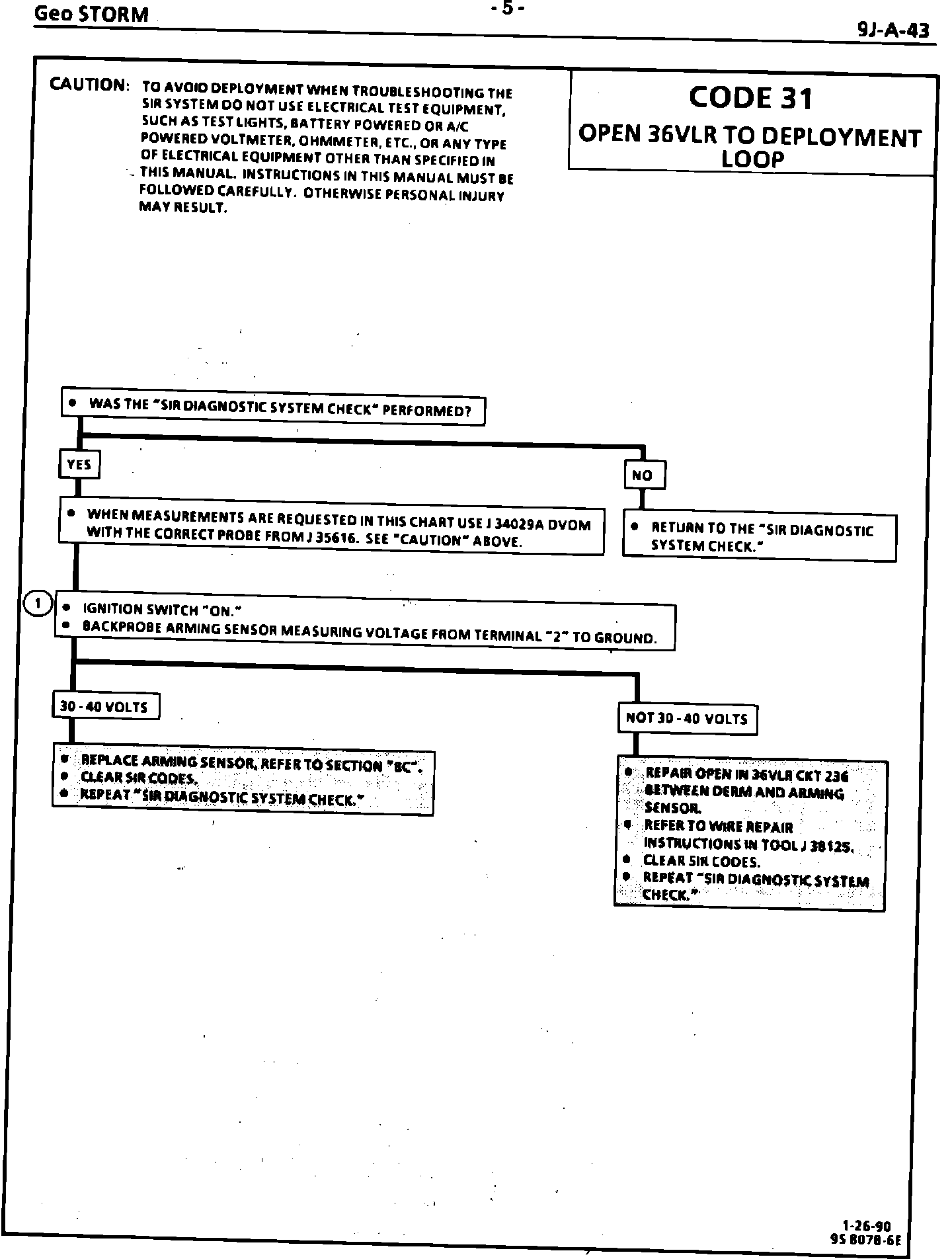

Page 9J-A-43 - Code 31

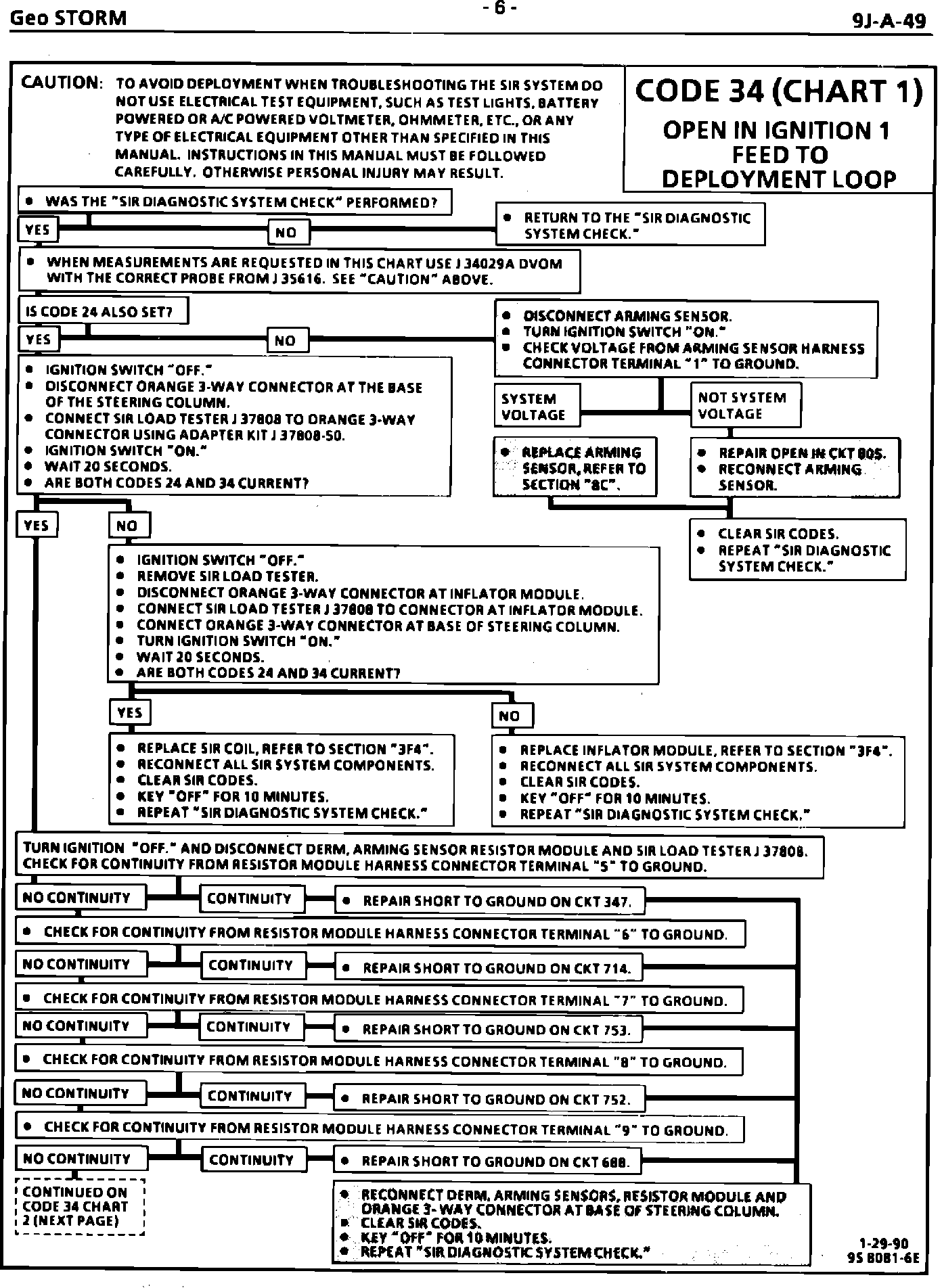

Page 9J-A-49 - Code 34





Page 9J-A-59 - Code 42

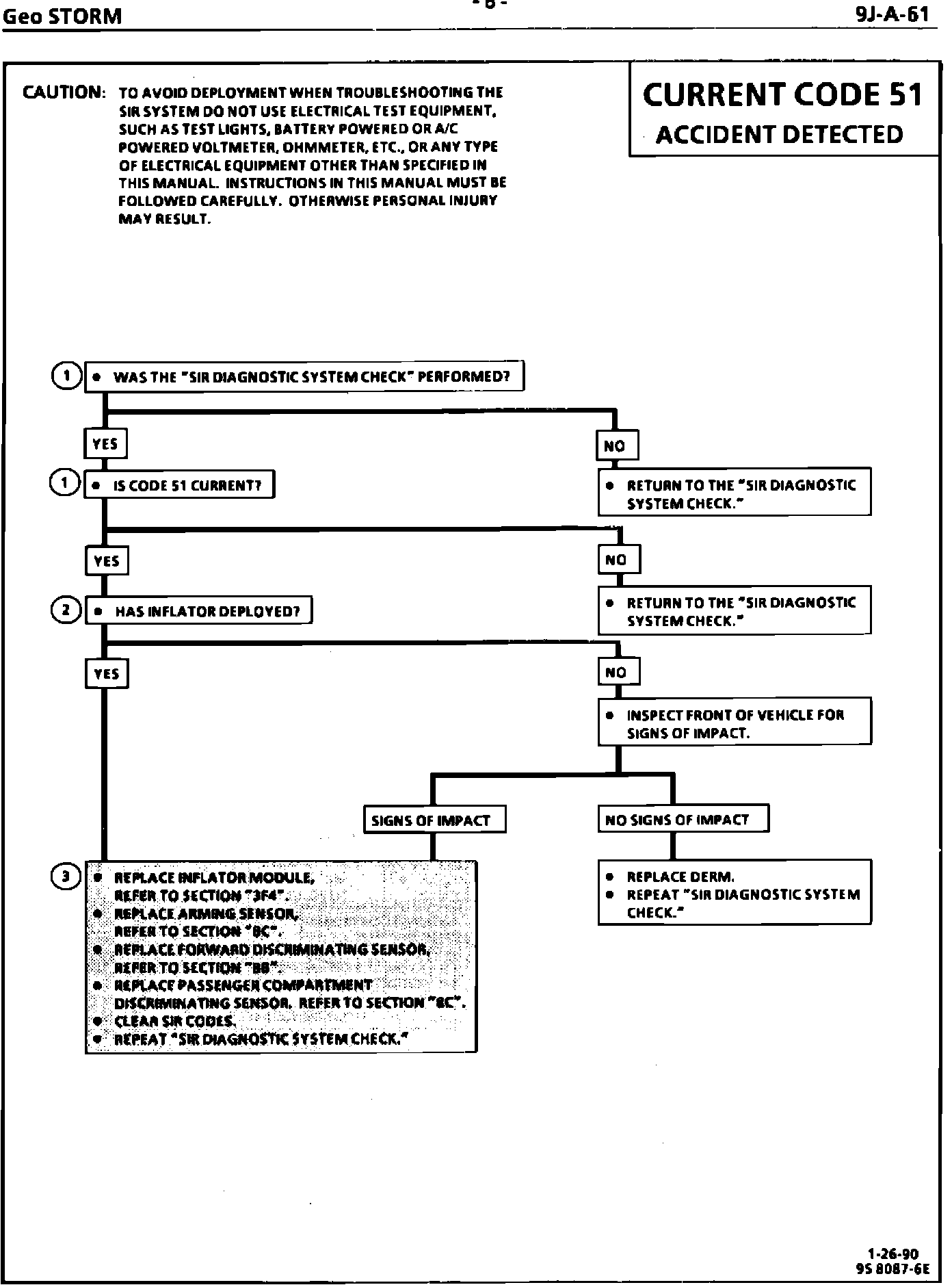

Page 9J-A-61 - Code 51
