Operation CHARM
: Car repair manuals for everyone.
Home
>>
Geo
>>
1990
>>
Storm L4-1600cc 1.6L DOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Without Pulse
Without Pulse

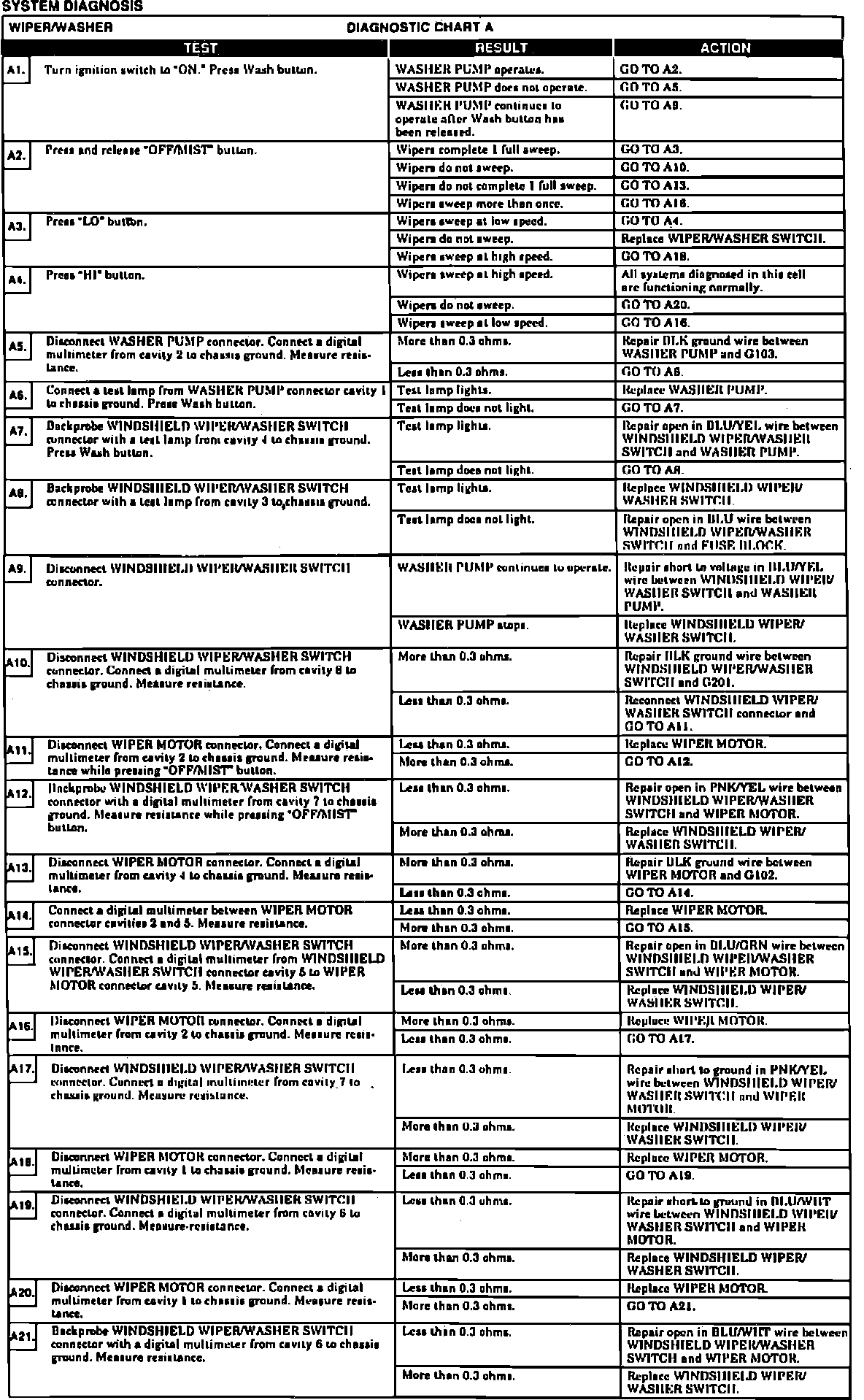

Fig. 33 System Diagnosis Chart. Less Pulse Wiper:
