1990
>>
Storm L4-1600cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Seat Belt Reminder Lamp
>>
Testing and Inspection
>>
Test E: Indicator Short Test
Test E: Indicator Short Test

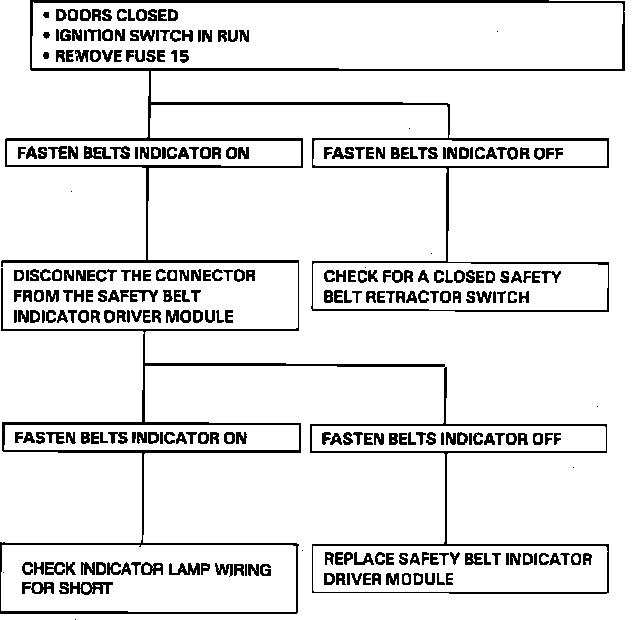

Fig. 18 Automatic Safety Belt Diagnosis, Indicator Short Test:
