Emission Control Systems: Locations

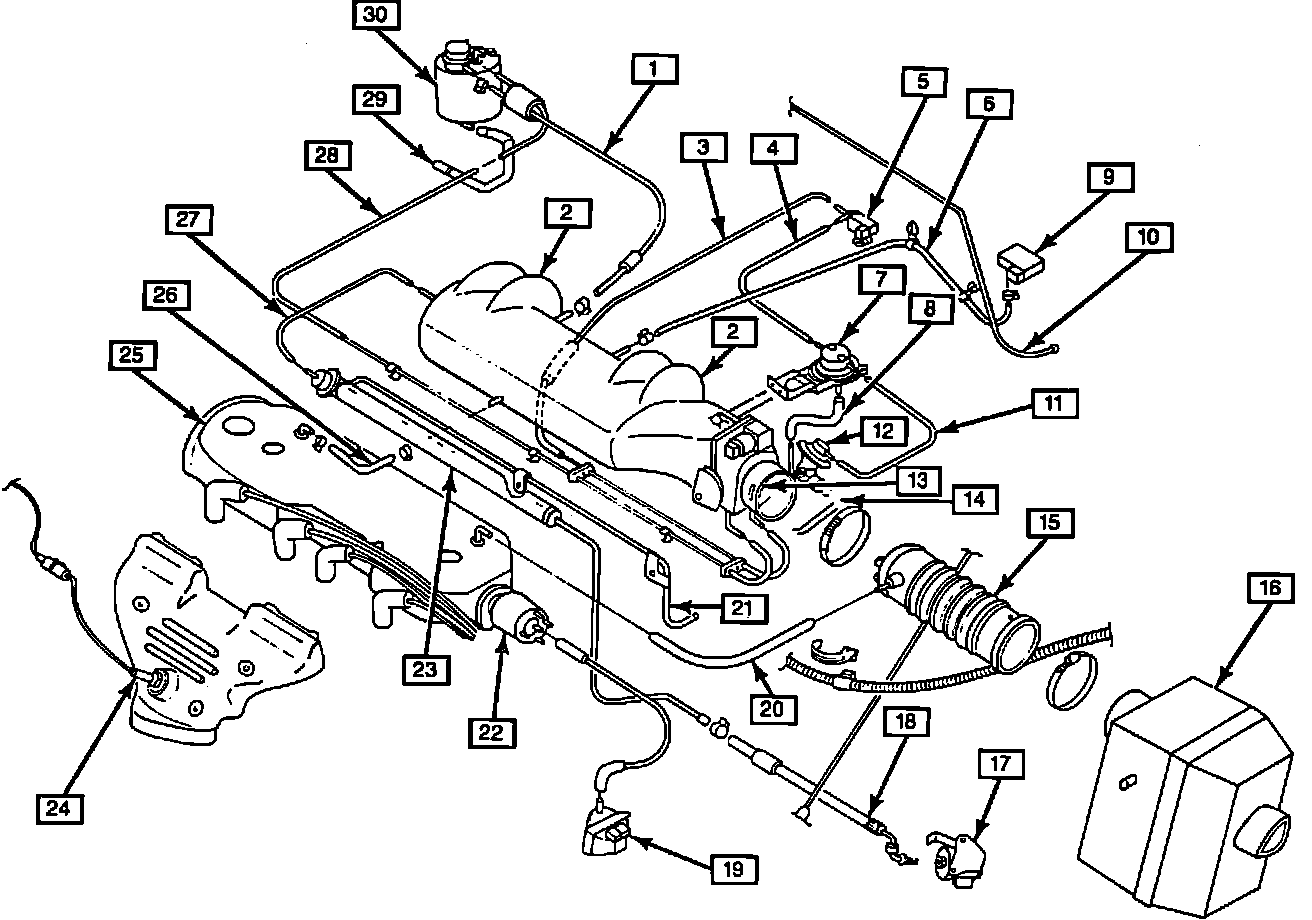

SOHC Emission Component Locations:

1. CANISTER HOSE TO COMMON CHAMBER
2. COMMON CHAMBER
3. EGR HOSE: THROTTLE VALVE TO VSV
4. EGR HOSE: VSV TO MODULATOR
5. EGR VSV
6. MAP SENSOR HOSE
7. EGR MODULATOR
8. EGR HOSE: EGR VALVE TO MODULATOR
9. MAP SENSOR
10. ACCELERATOR CABLE
11. EGR HOSE: MODULATOR TO EGR VALVE
12. EGR VALVE
13. THROTTLE VALVE
14. EGR PIPE
15. AIR DUCT
16. AIR CLEANER
17. FUEL FILTER
18. FUEL FEED HOSE
19. IGNITION COIL
20. PCV HOSE: CYLINDER HEAD COVER TO AIR DUCT
21. FUEL RETURN PIPE
22. DISTRIBUTOR
23. FUEL RAIL
24. OXYGEN SENSOR
25. CYLINDER HEAD COVER
26. PCV HOSE: CYLINDER HEAD COVER TO COMMON CHAMBER
27. VACUUM HOSE: PRESSURE REGULATOR TO COMMON CHAMBER
28. CANISTER HOSE: TO THROTTLE VALVE
29. CANISTER HOSE
3O. CANISTER
