Home >> Geo >> 1991 >> Prizm L4-1600cc 1.6L DOHC VIN 5 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cooling System >> System Diagram

System Diagram

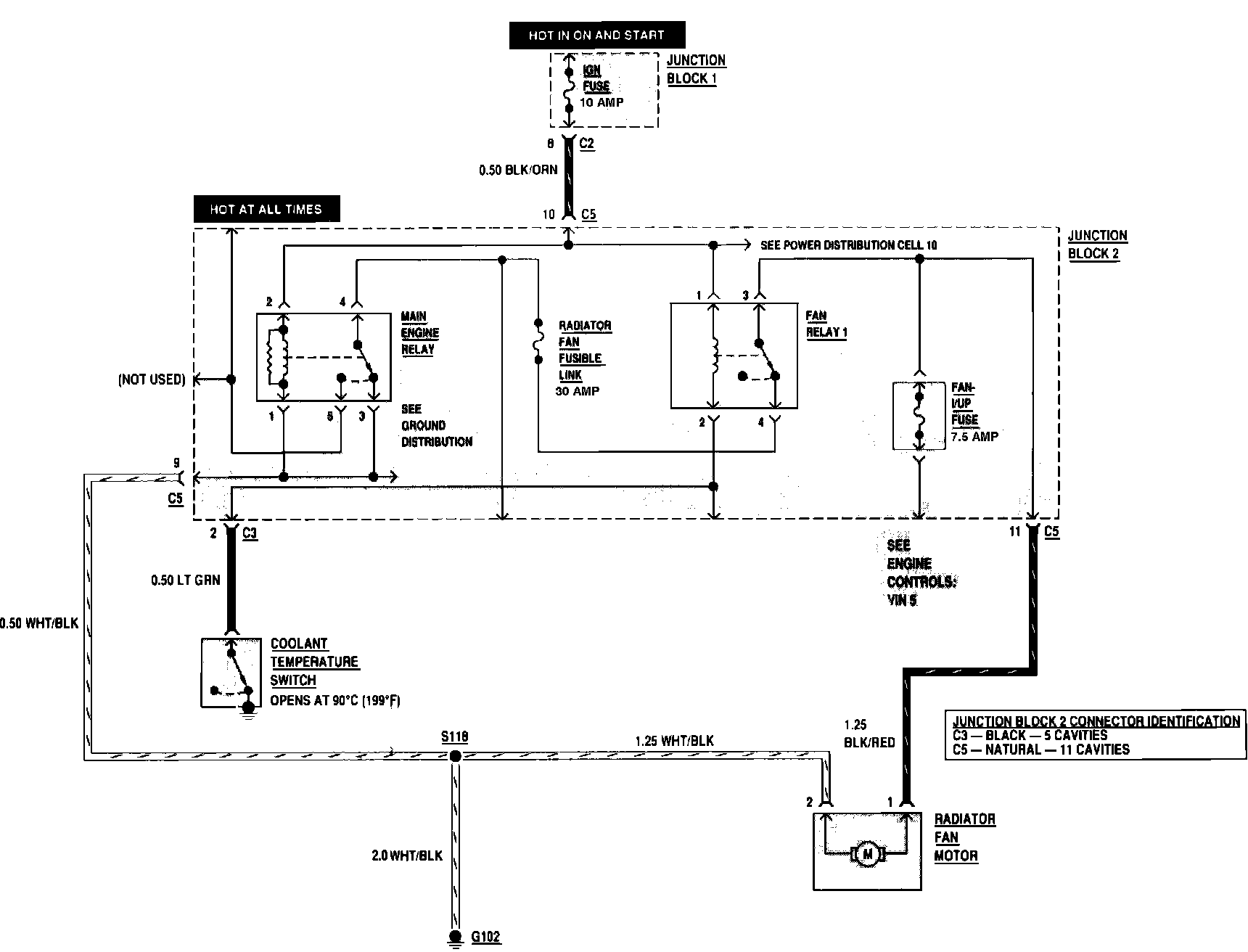

Fig. 132 Coolant Fan Wiring Circuit. 1991 Prizm Less A/C:

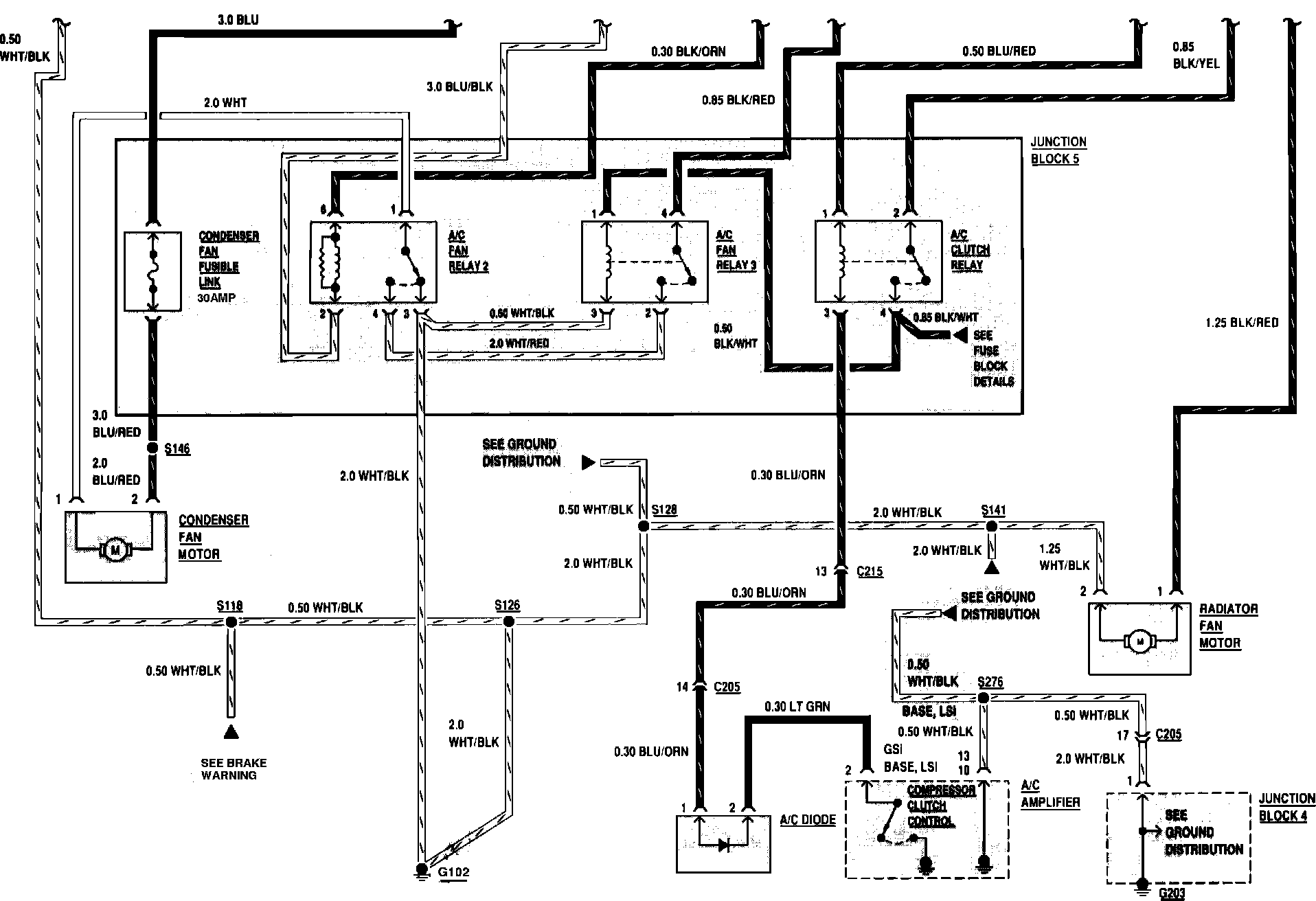

Fig. 133 Coolant Fan Wiring Circuit (Part 1 Of 2). 1991 Prizm With A/C:



Fig. 133 Coolant Fan Wiring Circuit (Part 2 Of 2). 1991 Prizm With A/C:
