Operation CHARM: Car repair manuals for everyone.

Home >> Geo >> 1991 >> Prizm L4-1600cc 1.6L DOHC VIN 5 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Tail Lamp

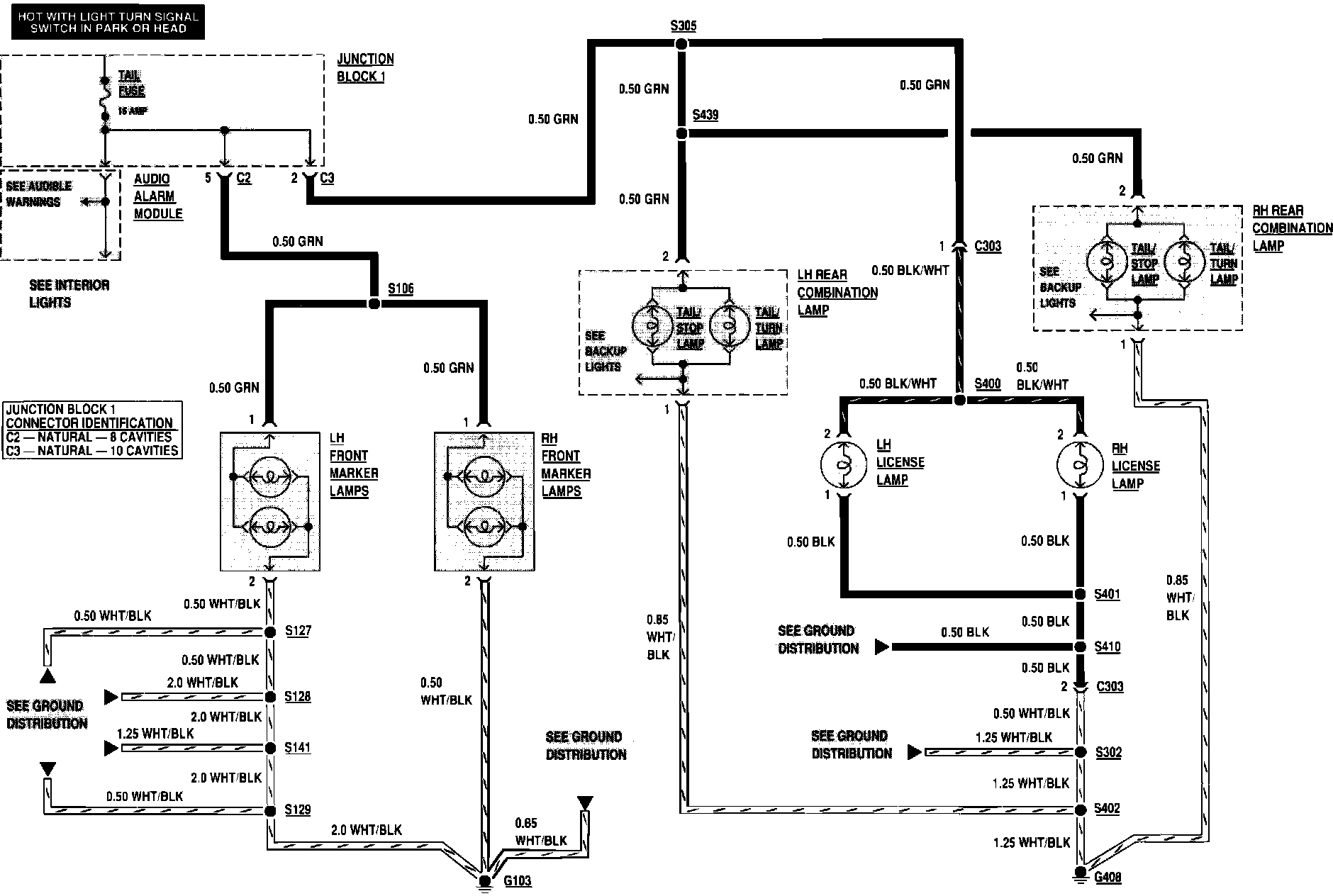

Tail Lamp

Park, Front Marker, Tail, Rear Marker, License (Sedan):
