Home
>>
Geo
>>
1991
>>
Prizm L4-1600cc 1.6L DOHC VIN 5
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>

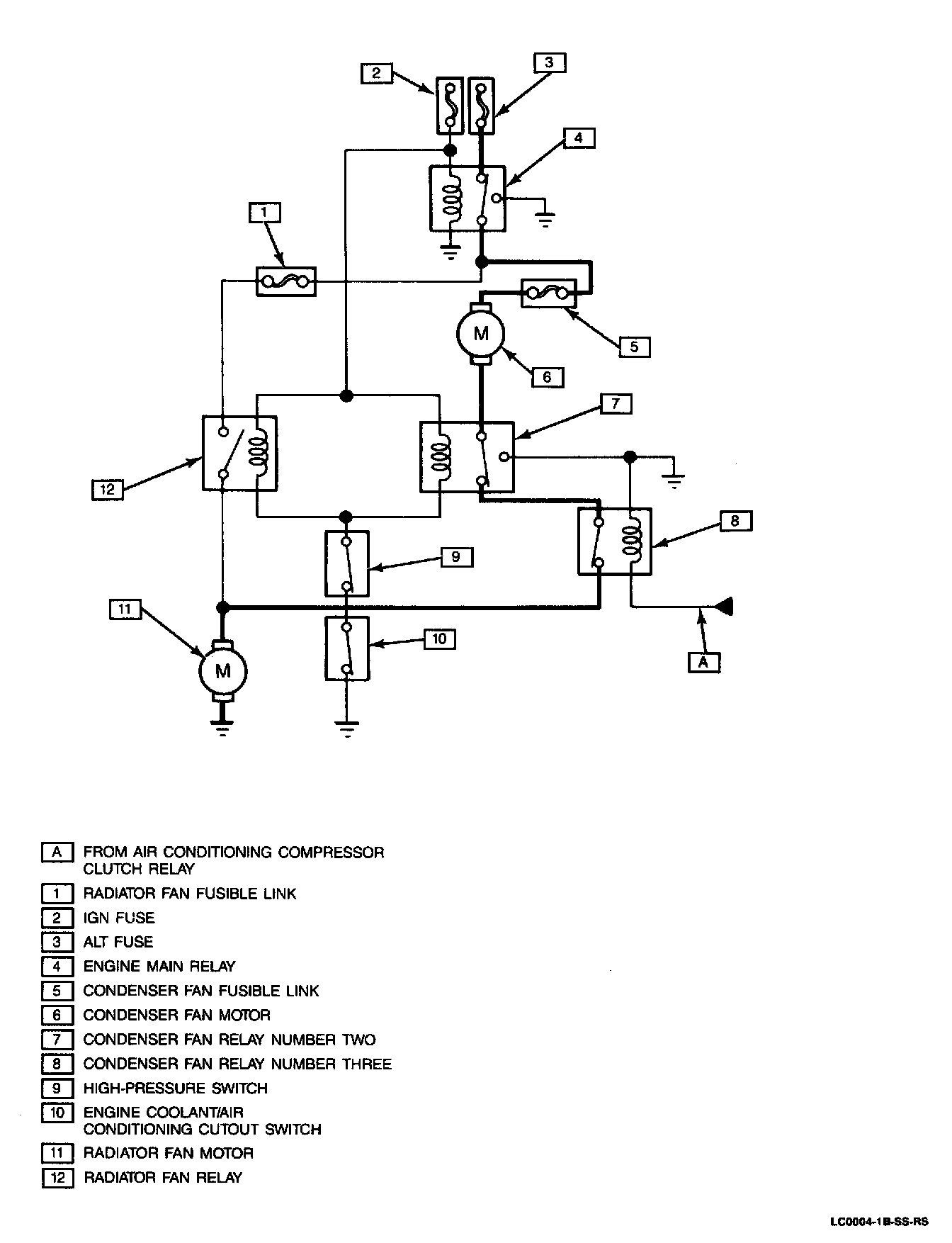

Condenser and Radiator Fan Circuitry
Condenser and Radiator Fan Circuitry
Condenser & Radiator Fan Circuitry:
