Home >> Geo >> 1991 >> Prizm L4-1600cc 1.6L DOHC VIN 5 >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Diagrams >> Electrical Diagrams

Electrical Diagrams

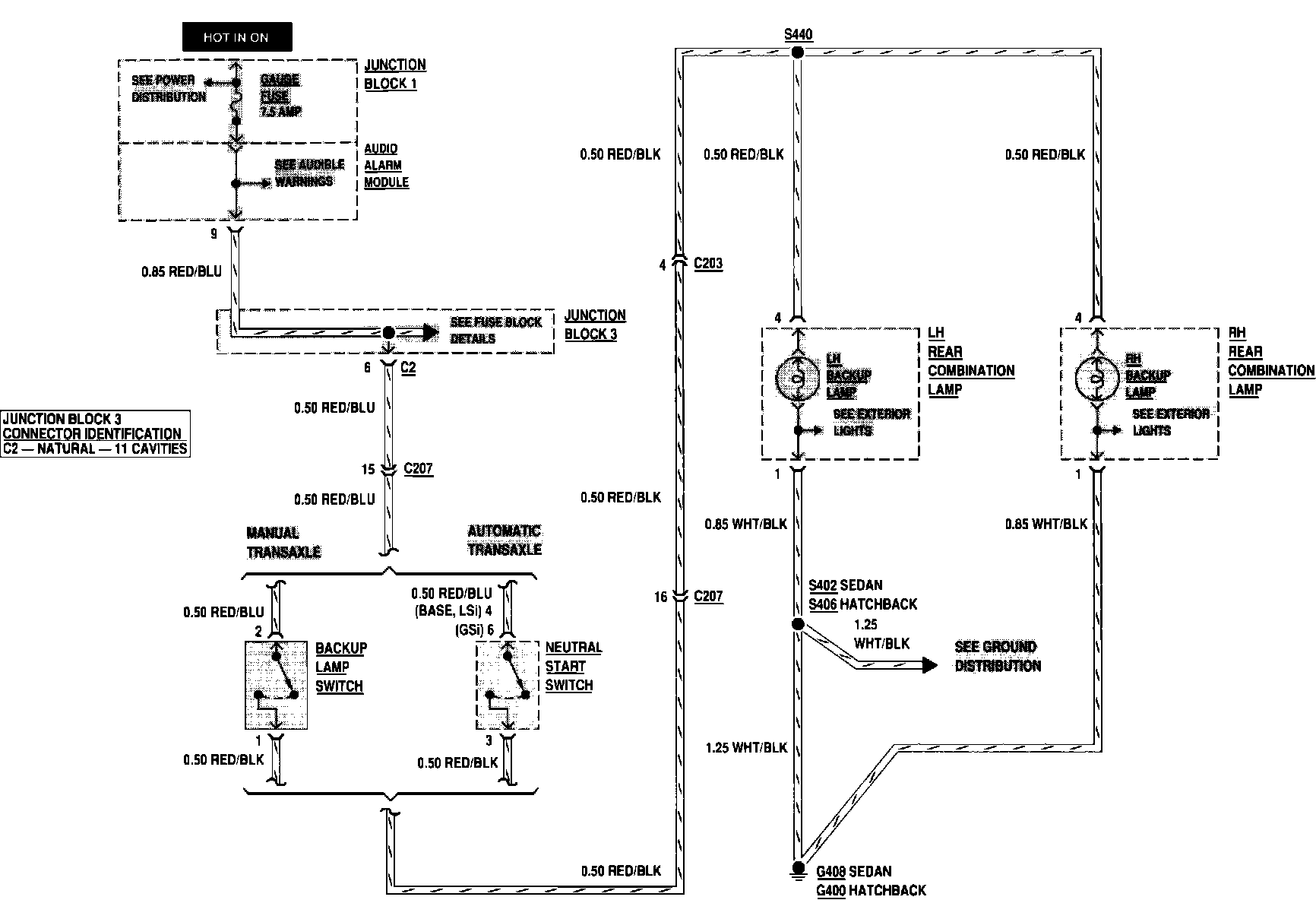

Backup Lights:
