Engine Main Relay
Engine Main Relay

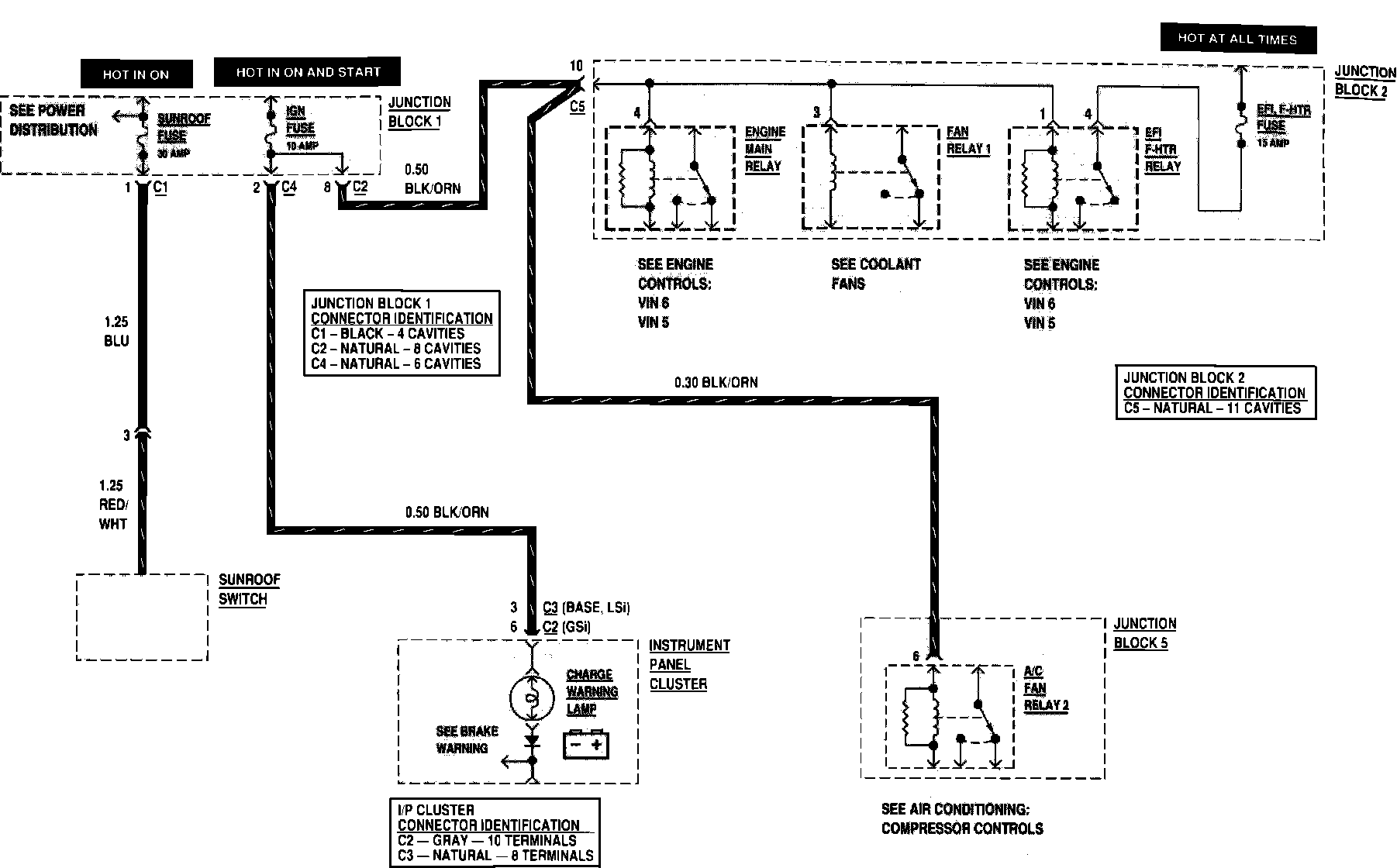

Fuse Block Details - Sunroof And Ignition Fuses And Engine Main Relay:
