Fuel Injectors & Fuel Pump Control

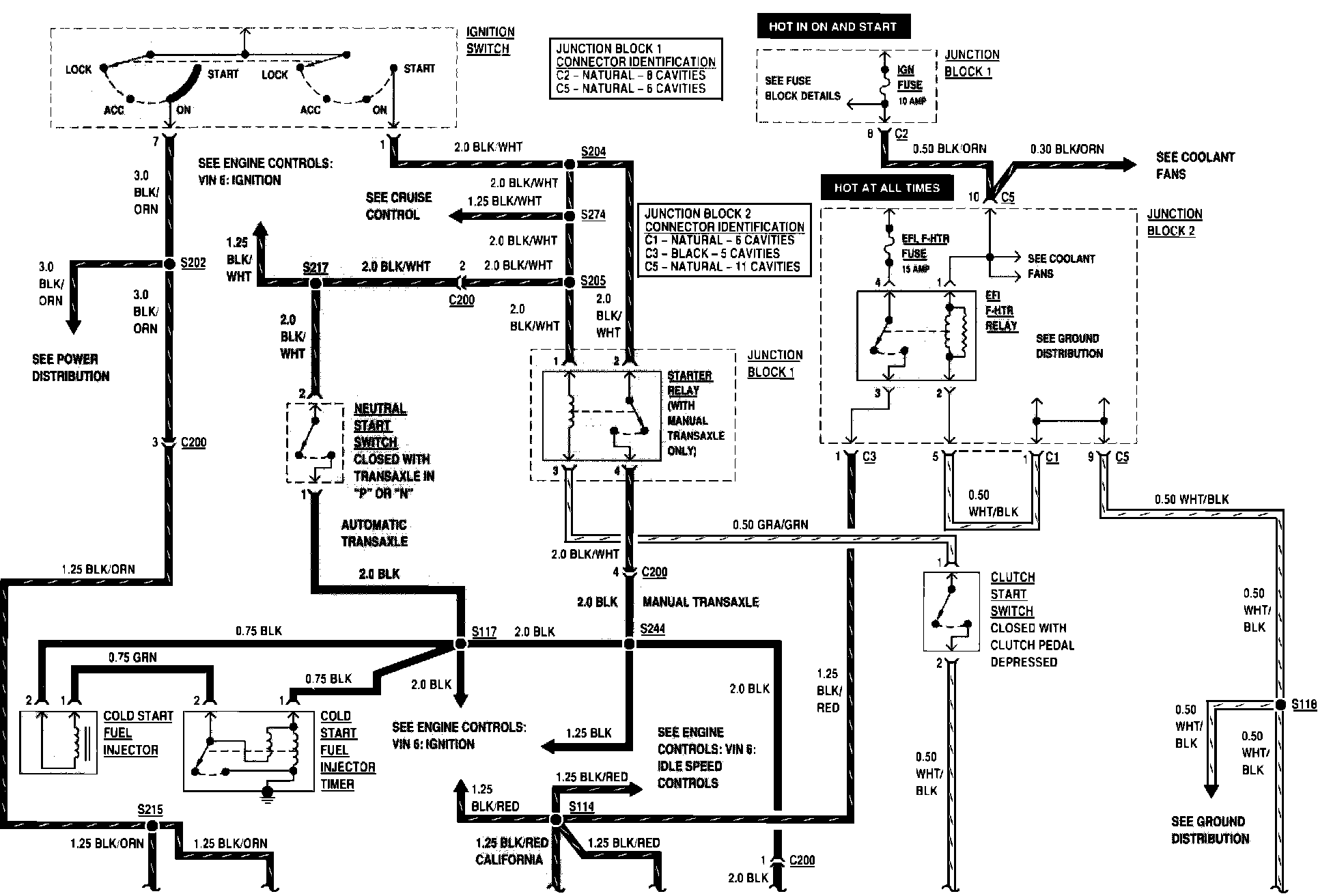

VIN 6 - Fuel Injector And Fuel Pump Controls:



VIN 6 - Fuel Injector And Fuel Pump Controls:



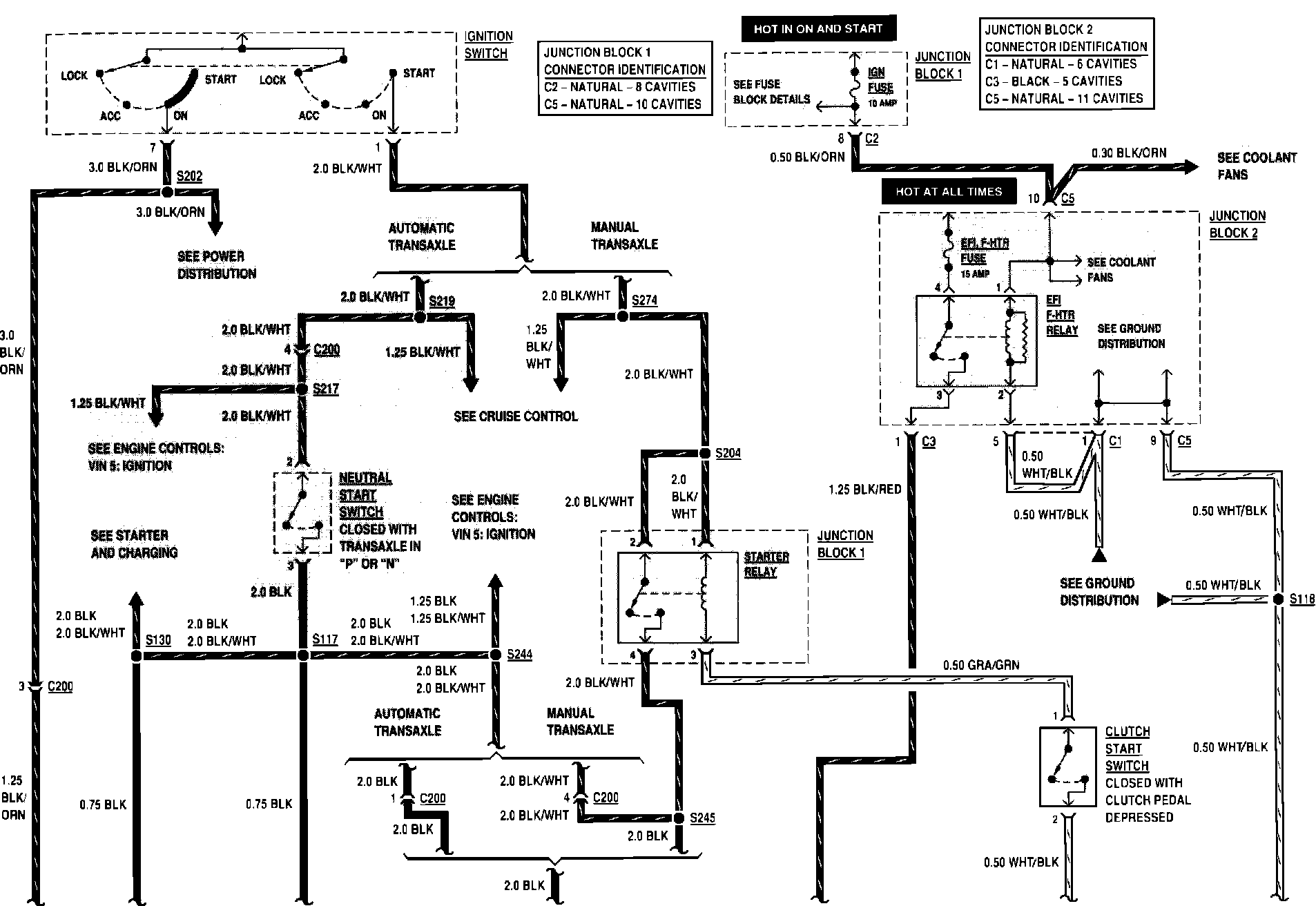

VIN 5 - Fuel Injector And Fuel Pump Controls:

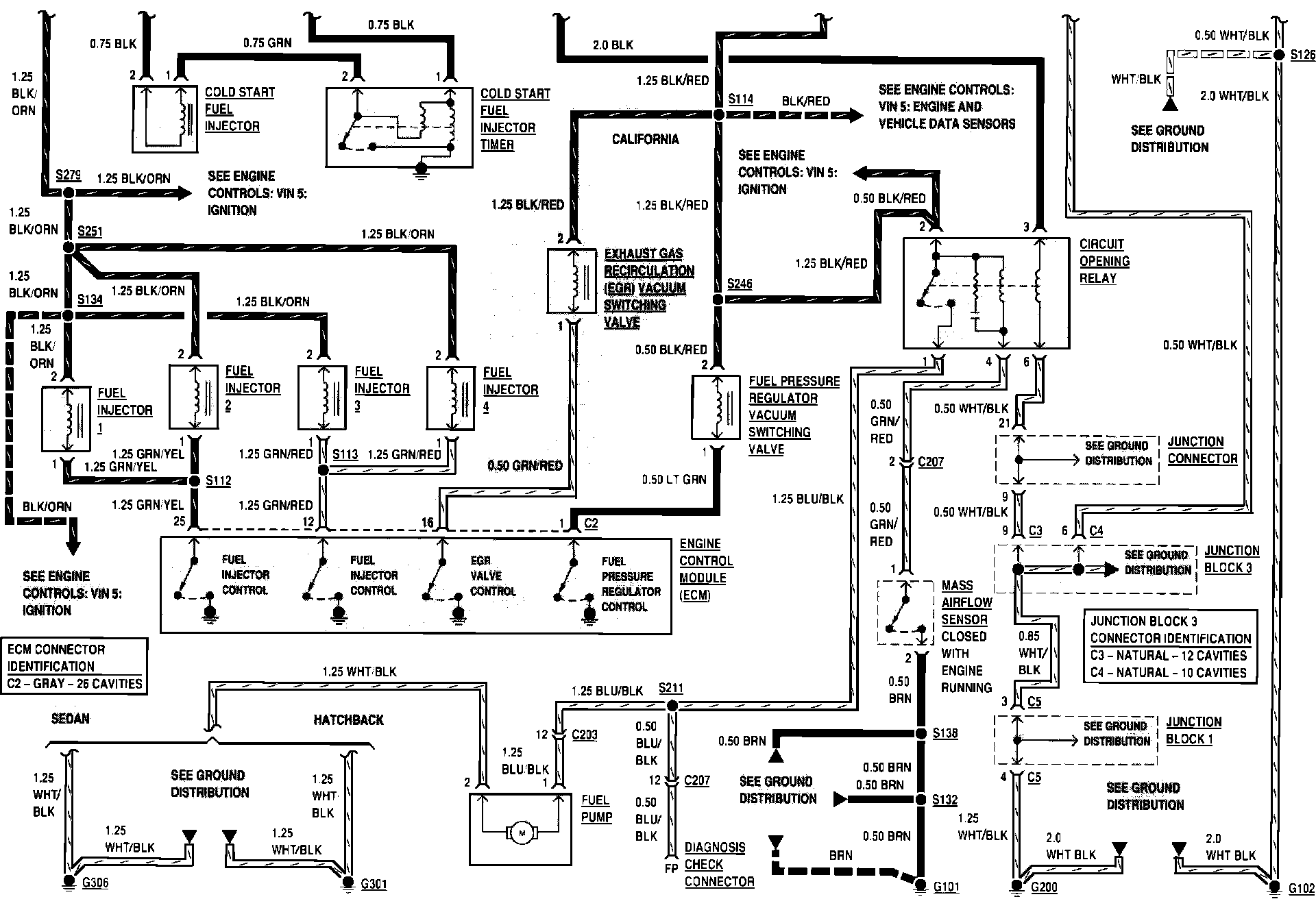

VIN 5 - Fuel Injector And Fuel Pump Controls:
