1991
>>
Storm L4-1600cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

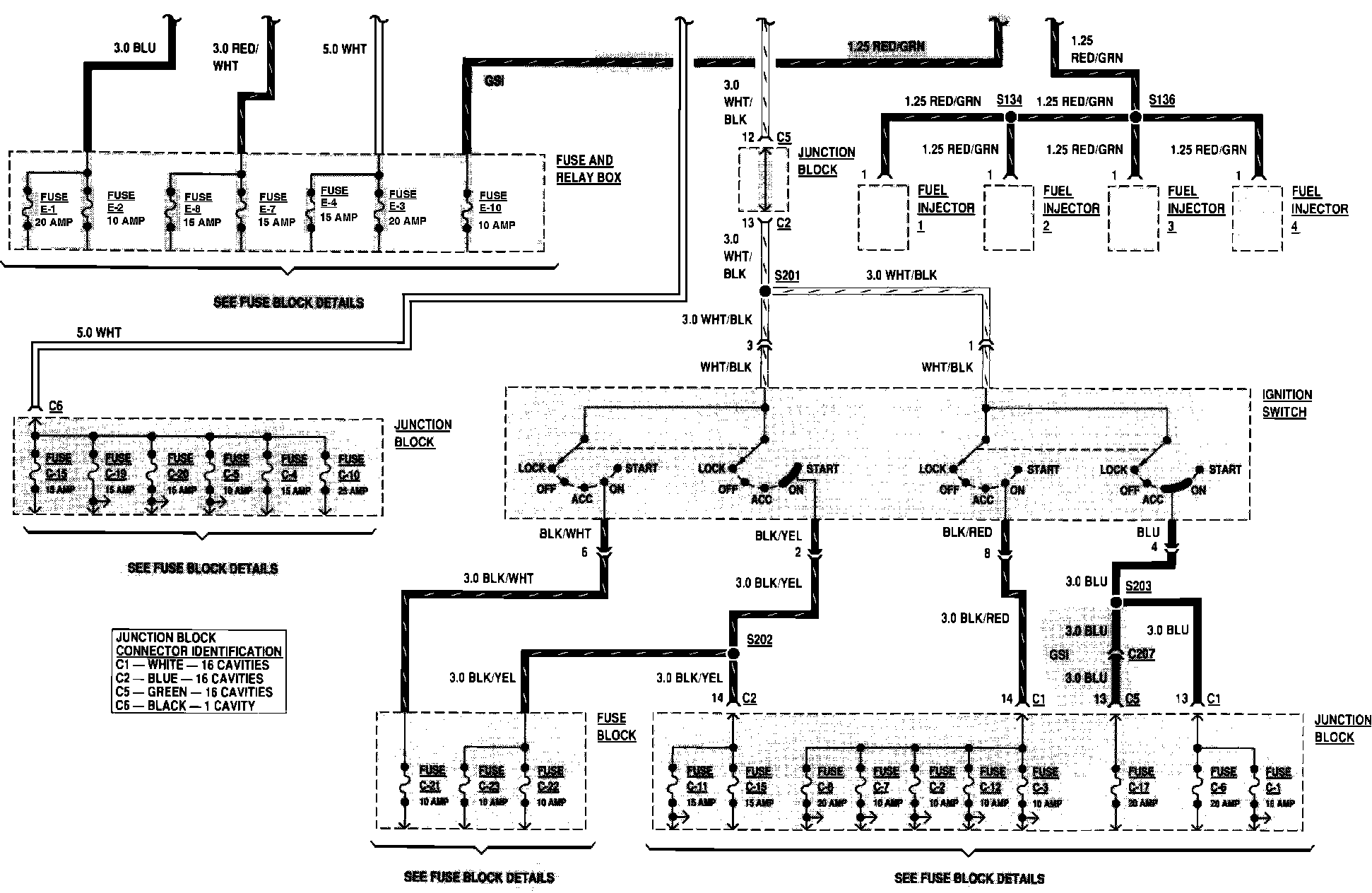

Power Distribution Wiring Circuit
Power Distribution Wiring Circuit
Power Distribution:
Power Distribution:
