Fuel Injectors & Fuel Pump Control

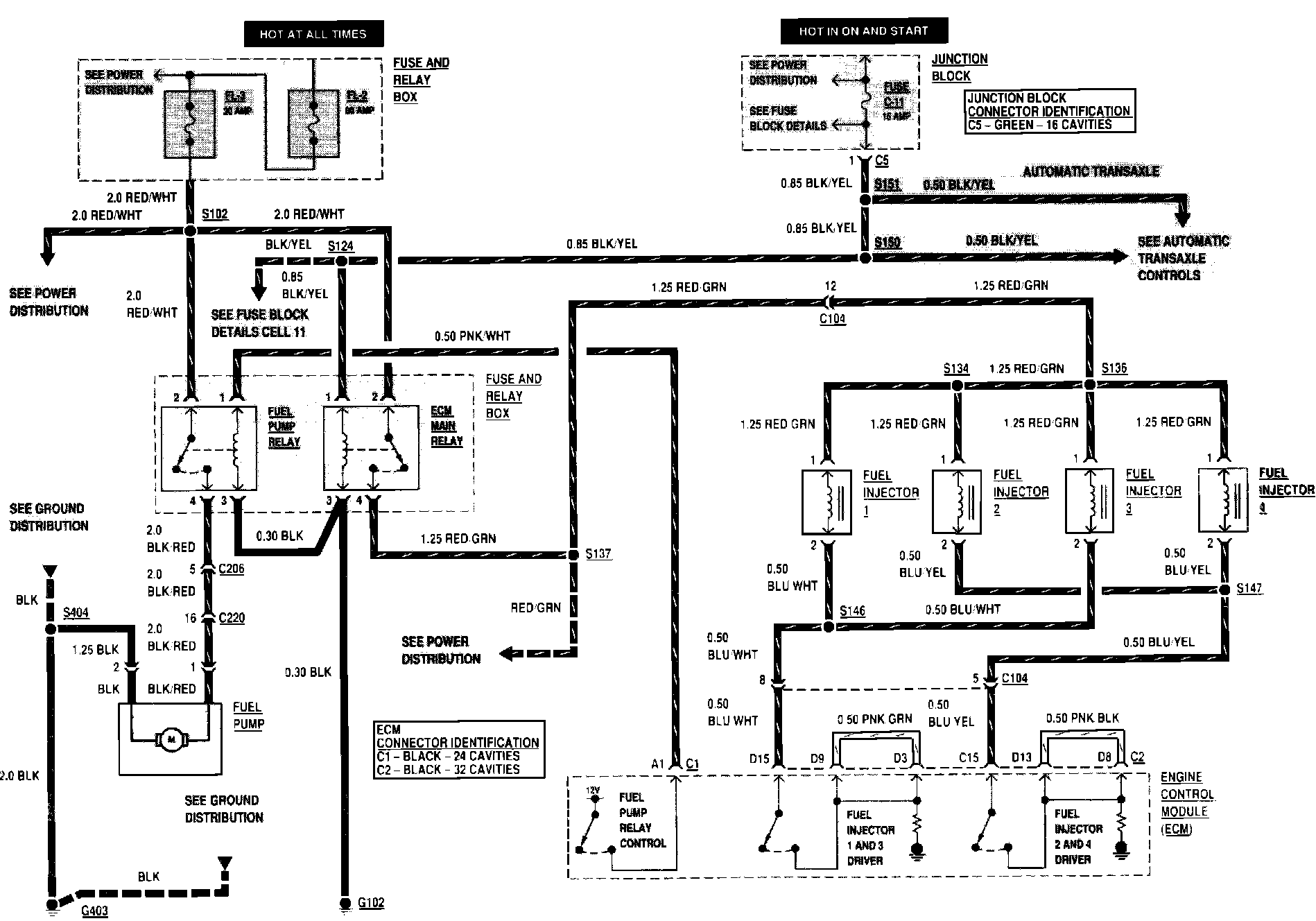

Engine Controls: VIN 6 Fuel Injector And Fuel Pump Controls:

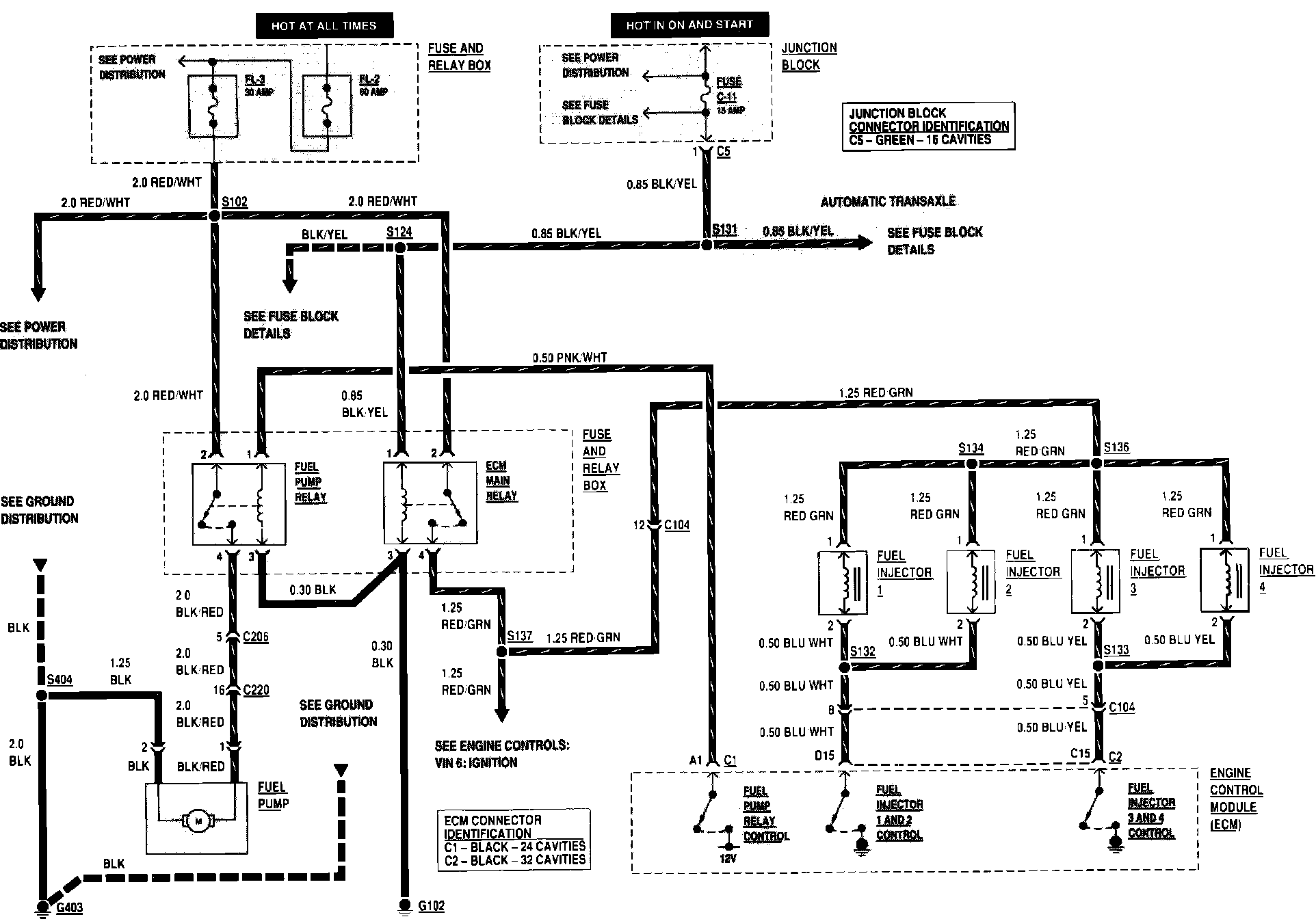

Engine Controls: VIN 5 Fuel Injector And Fuel Pump Controls:
