Home >> Geo >> 1991 >> Storm L4-1600cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Transaxle & Idle Speed Controls (ISC)

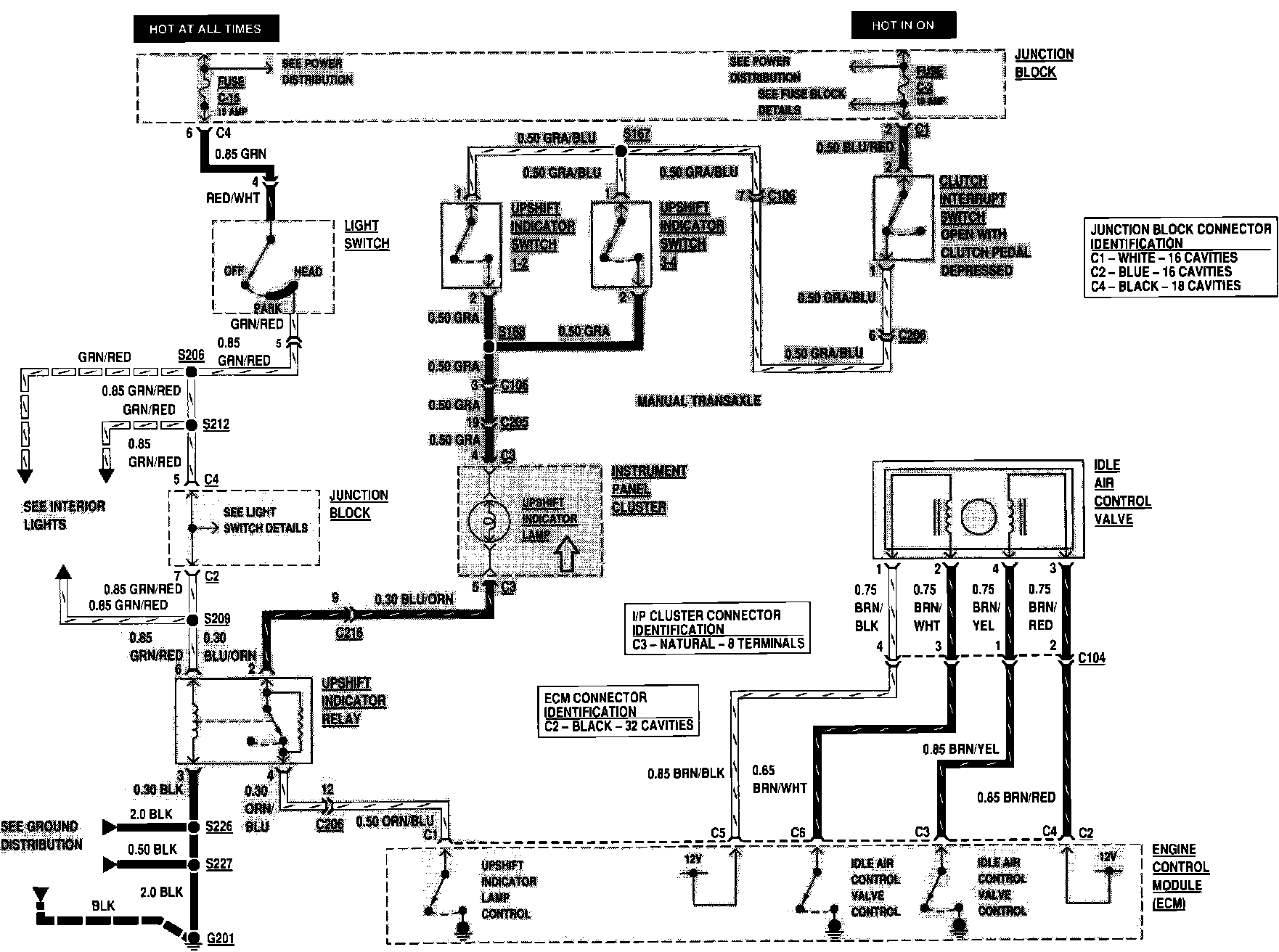

Transaxle & Idle Speed Controls (ISC)

Engine Controls: VIN 6 Transaxle And Idle Speed Controls:
