1991
>>
Storm L4-1600cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Without Pulse
Without Pulse

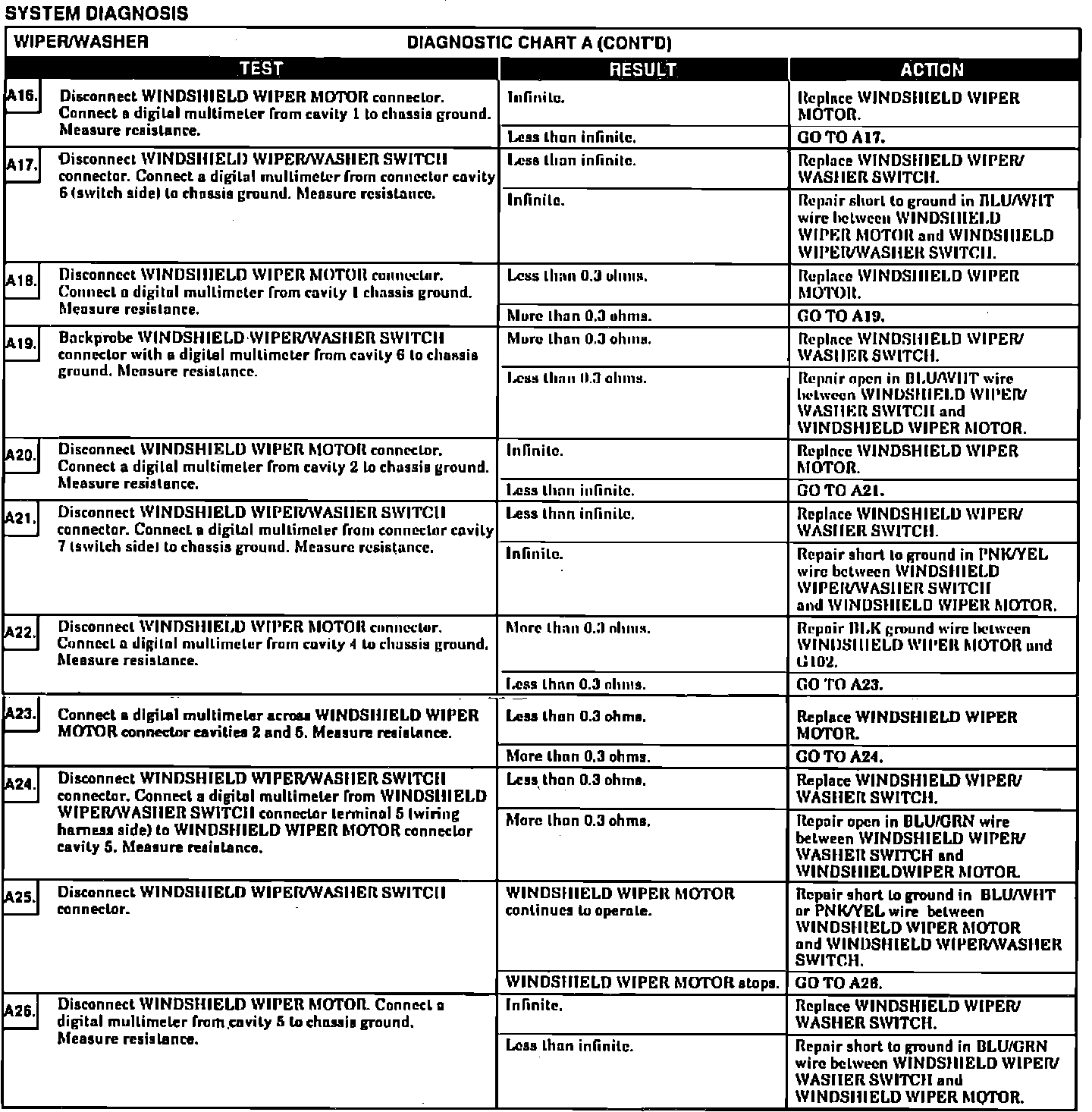

Fig. 34 System Diagnosis Chart (Part 1 Of 2). Less Pulse Wiper:
Fig. 34 System Diagnosis Chart (Part 2 Of 2). Less Pulse Wiper:
