Home
>>
Geo
>>
1992
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Belt Systems
>>
Seat Belt Control Module
Seat Belt Control Module

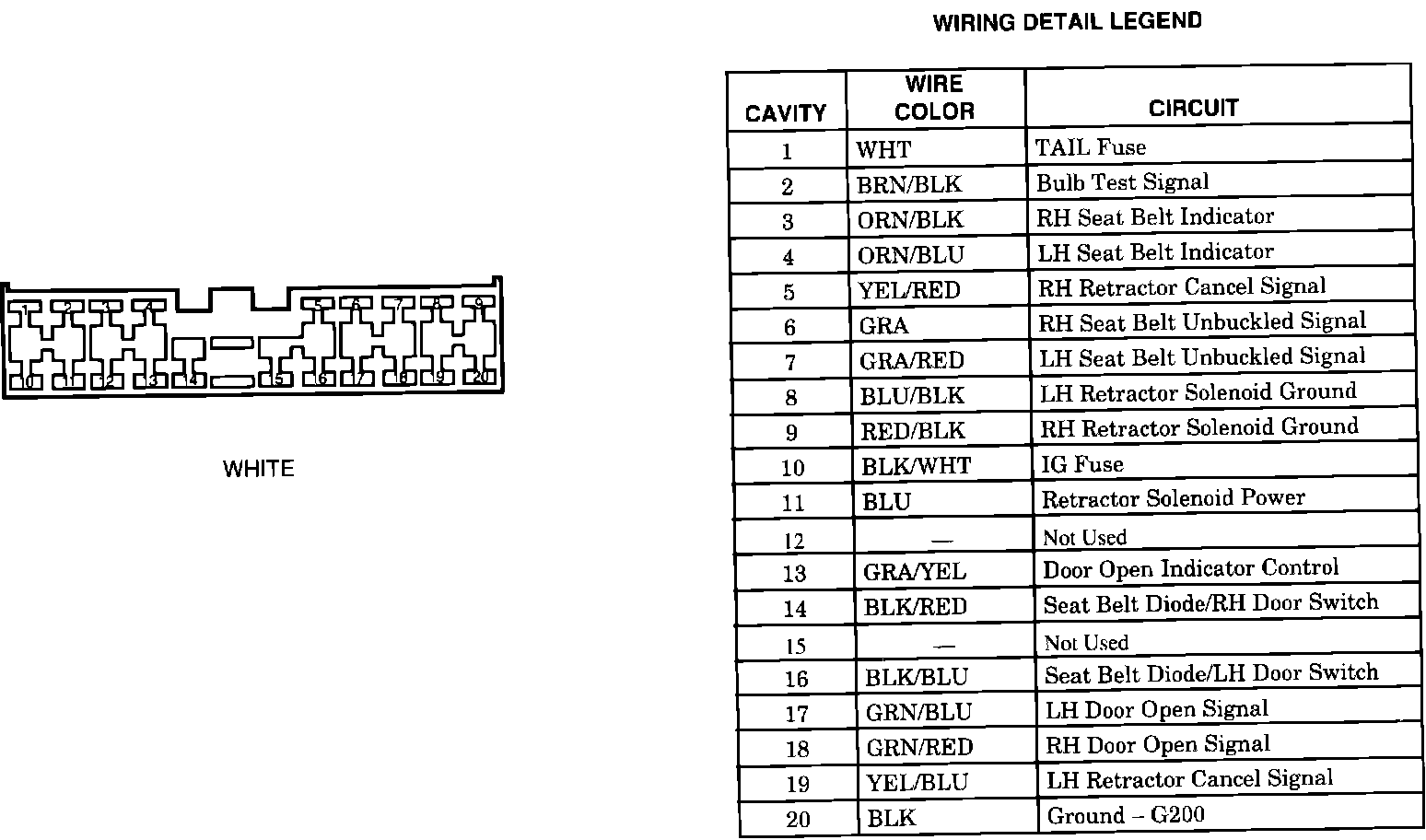

Seat Controller Connector:
