1992
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>

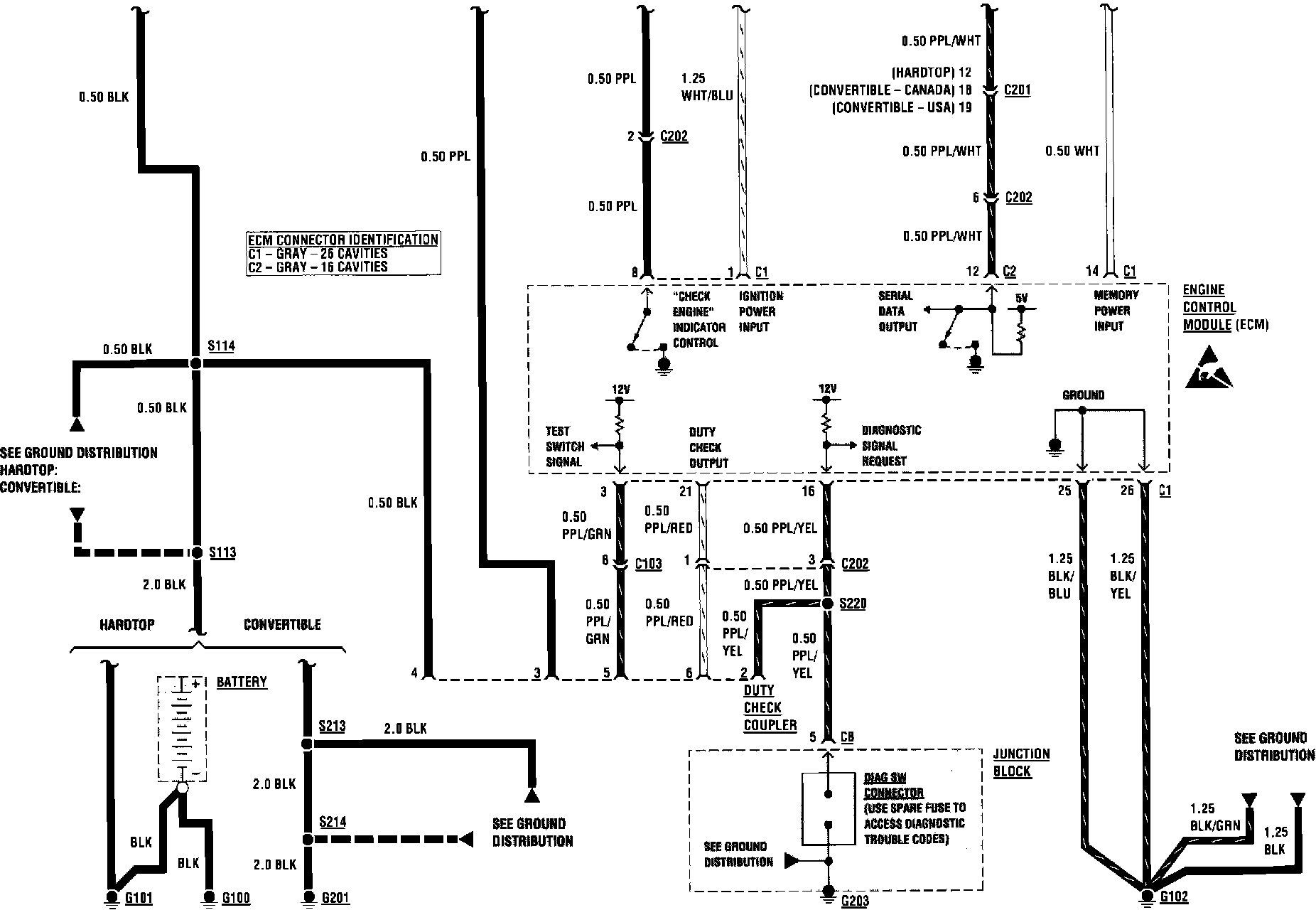

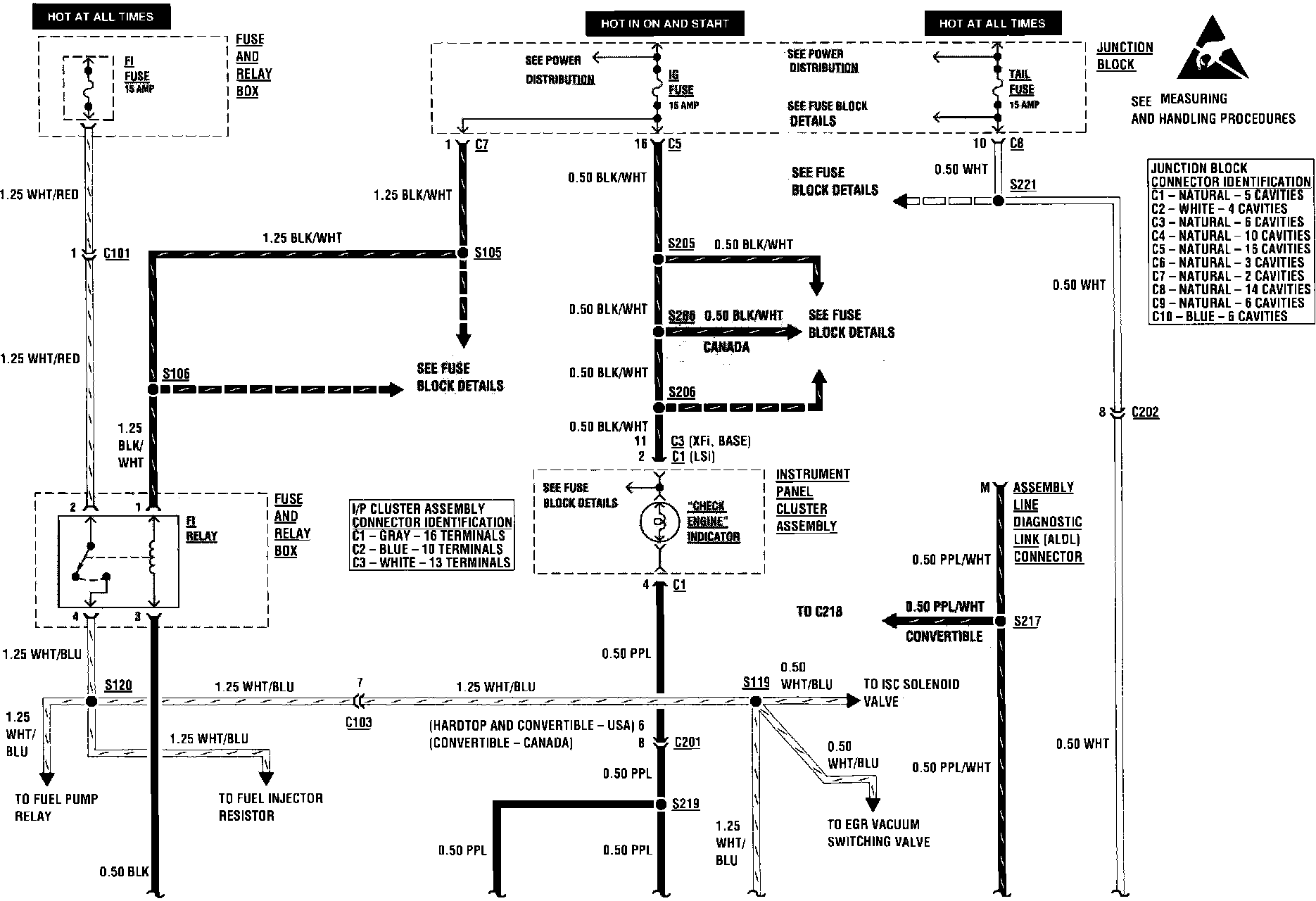

Malfunction Indicator Lamp
Malfunction Indicator Lamp
Engine Controls:
Engine Controls:
