Tail Lamp

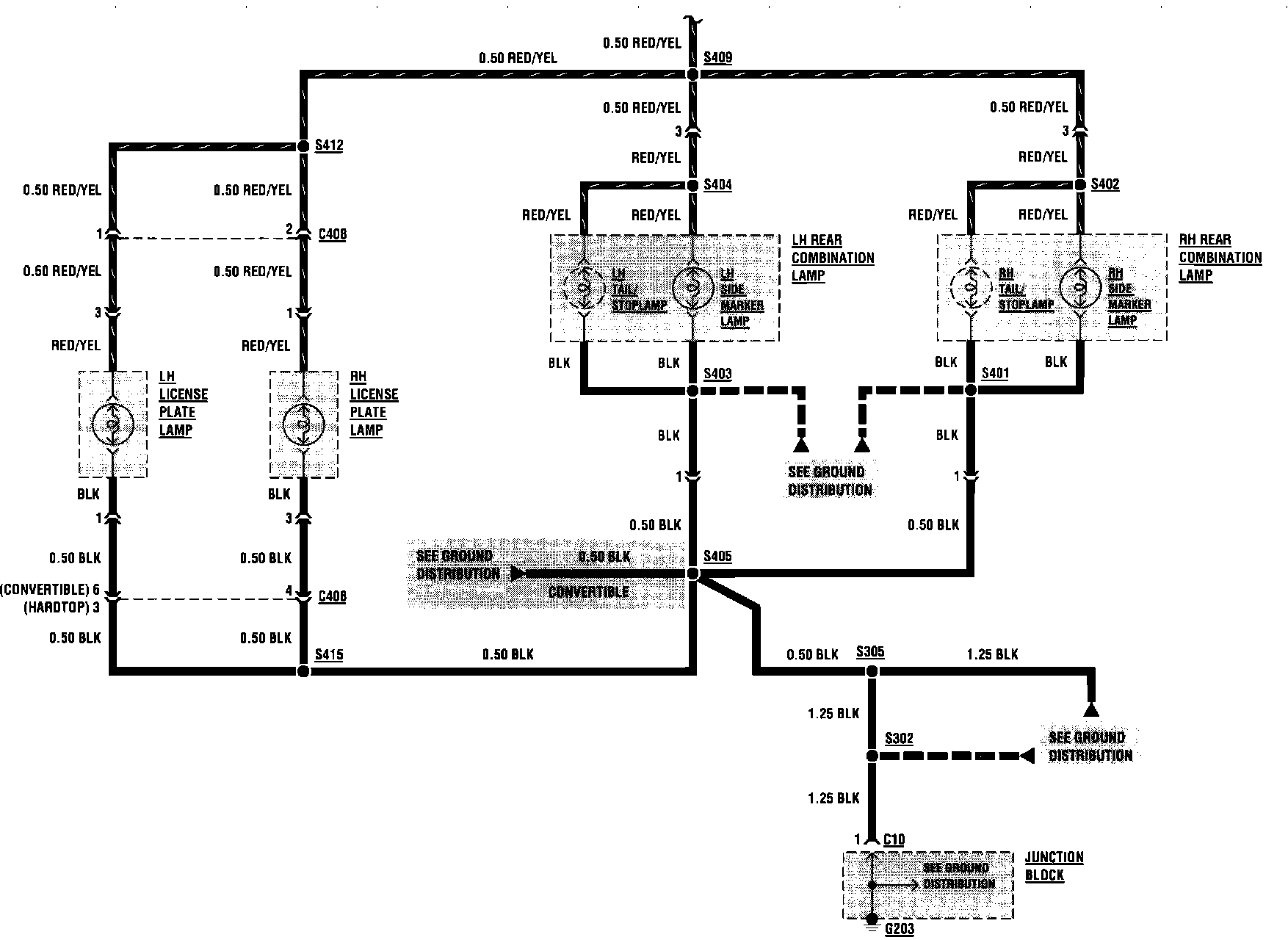

Parking/Tail/Stop/Rear Side Marker/License Plate:



Parking/Tail/Stop/Rear Side Marker/License Plate:
