1992
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Base and Xfi
Base and Xfi

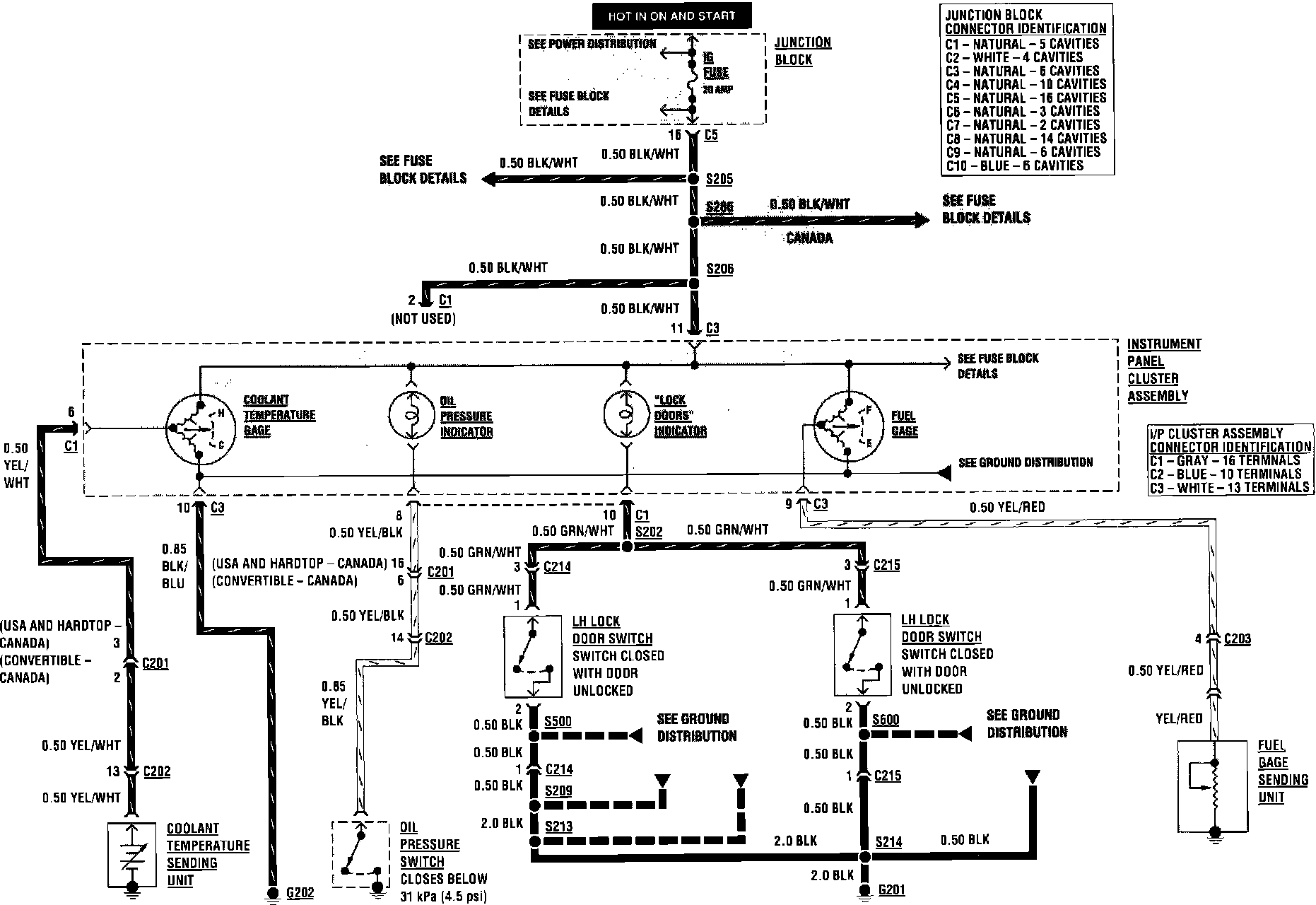

Instrument Panel:
