Home >> Geo >> 1992 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> LSI

LSI

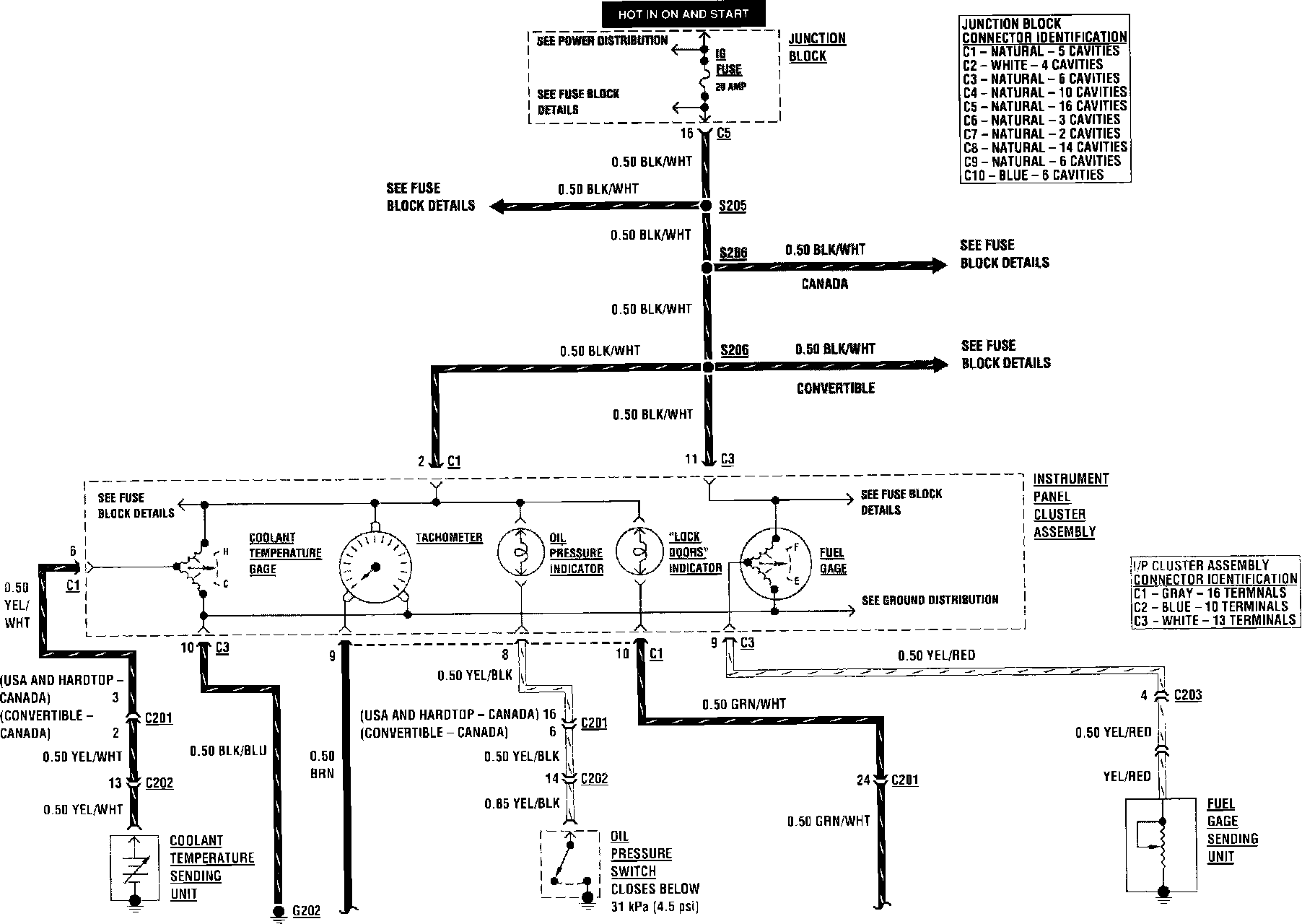

Instrument Panel:

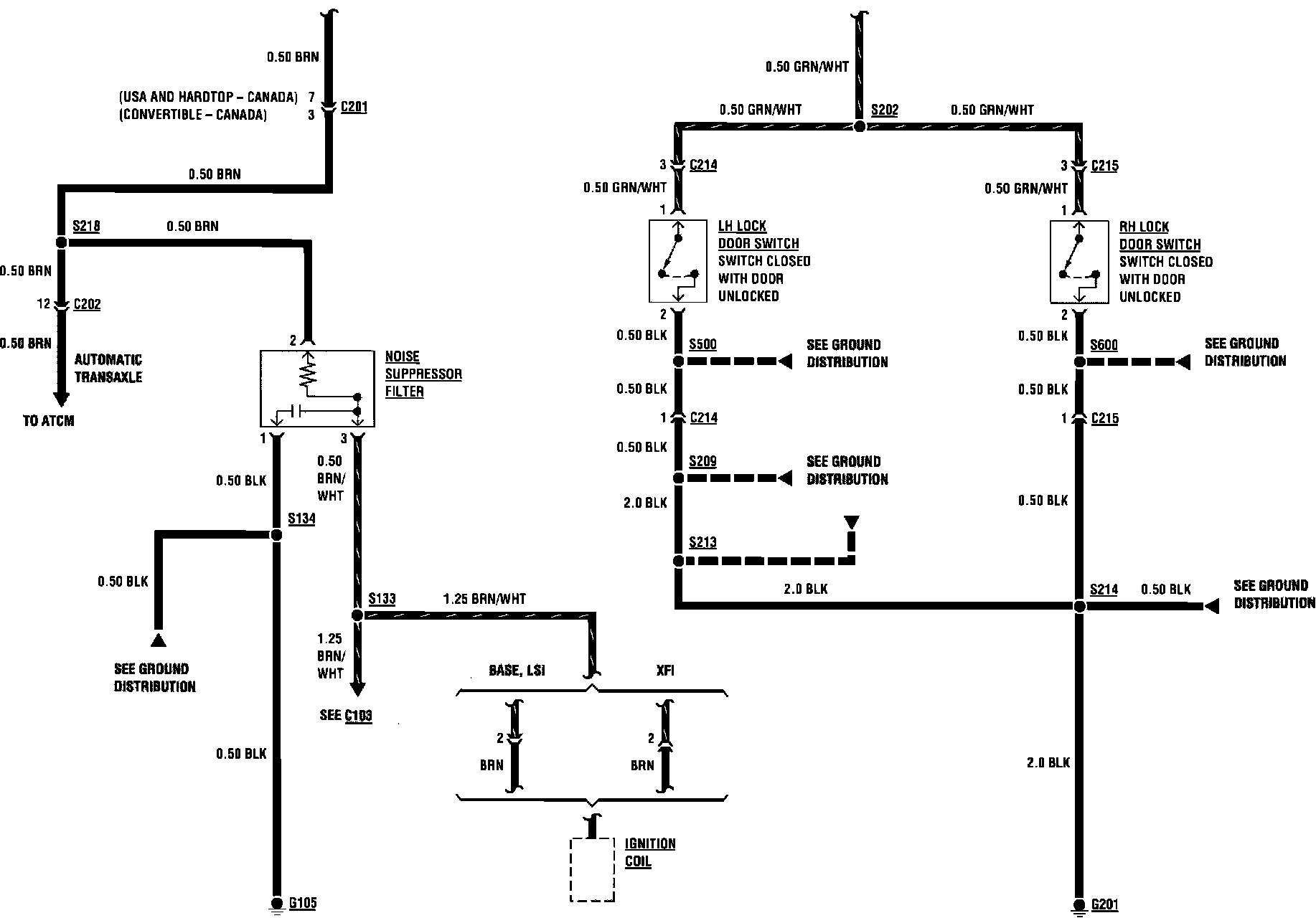

Instrument Panel:
