Electrical Diagrams

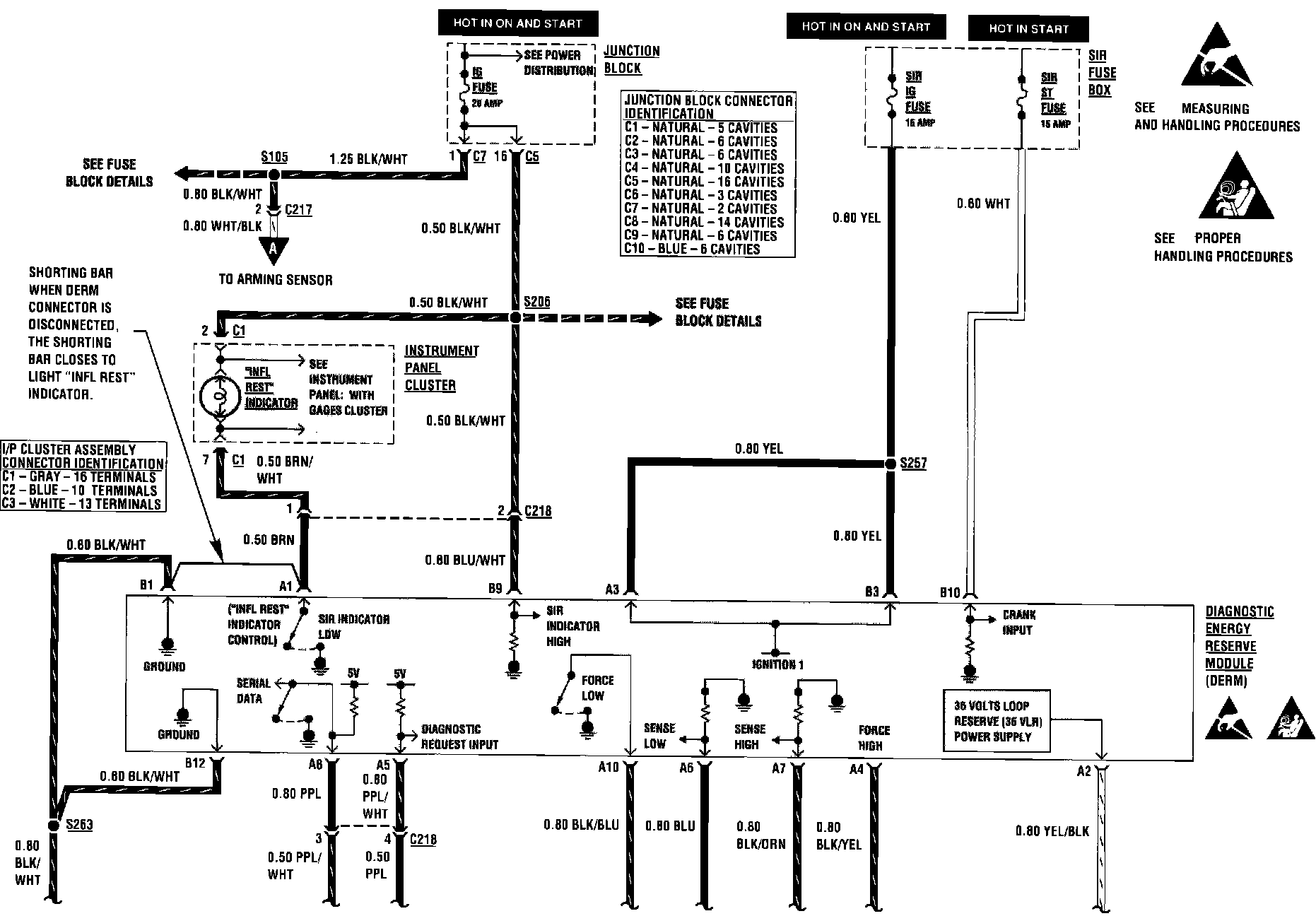

SIR Wiring Circuit (Part 1 Of 2):

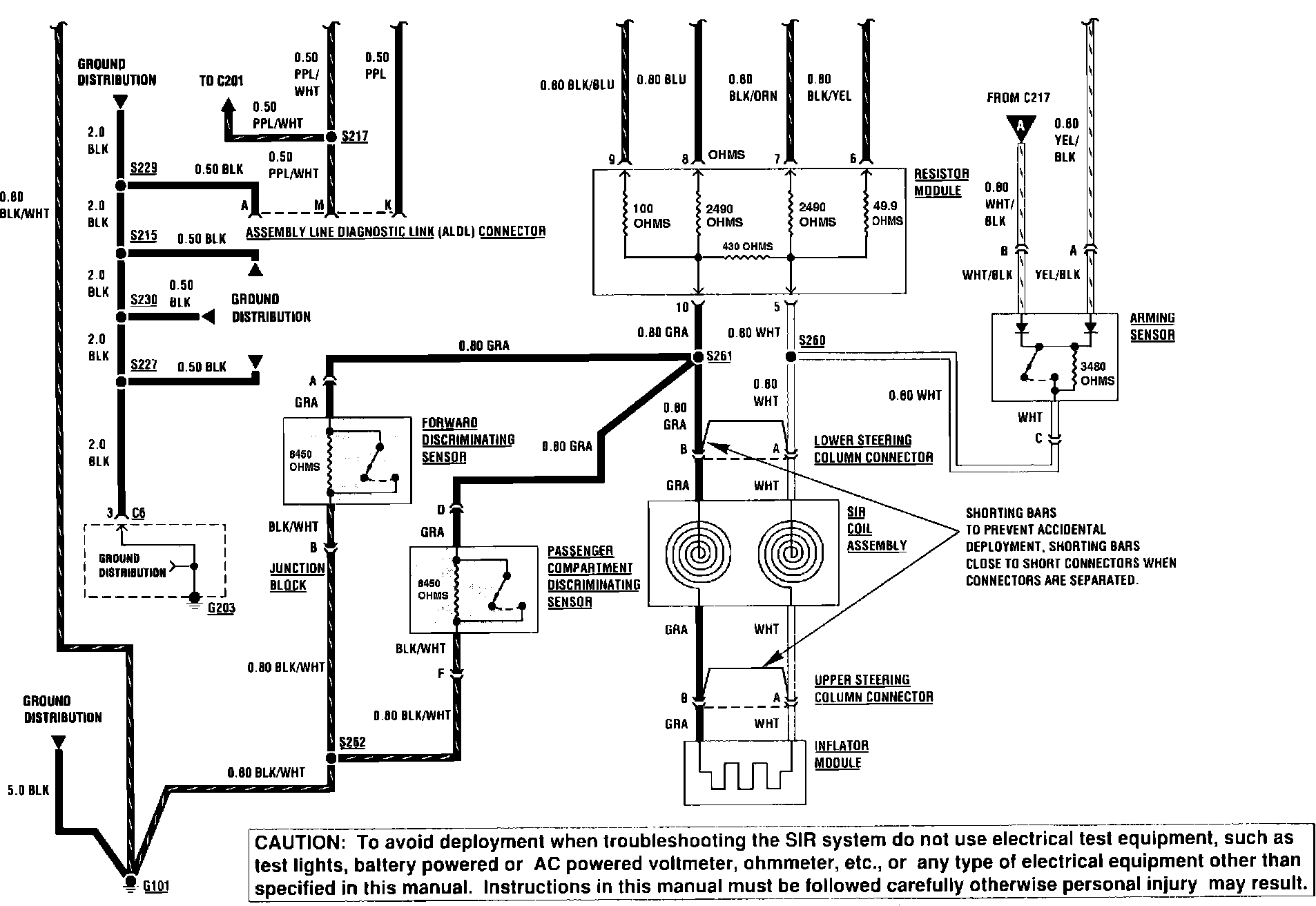

SIR Wiring Circuit (Part 2 Of 2):

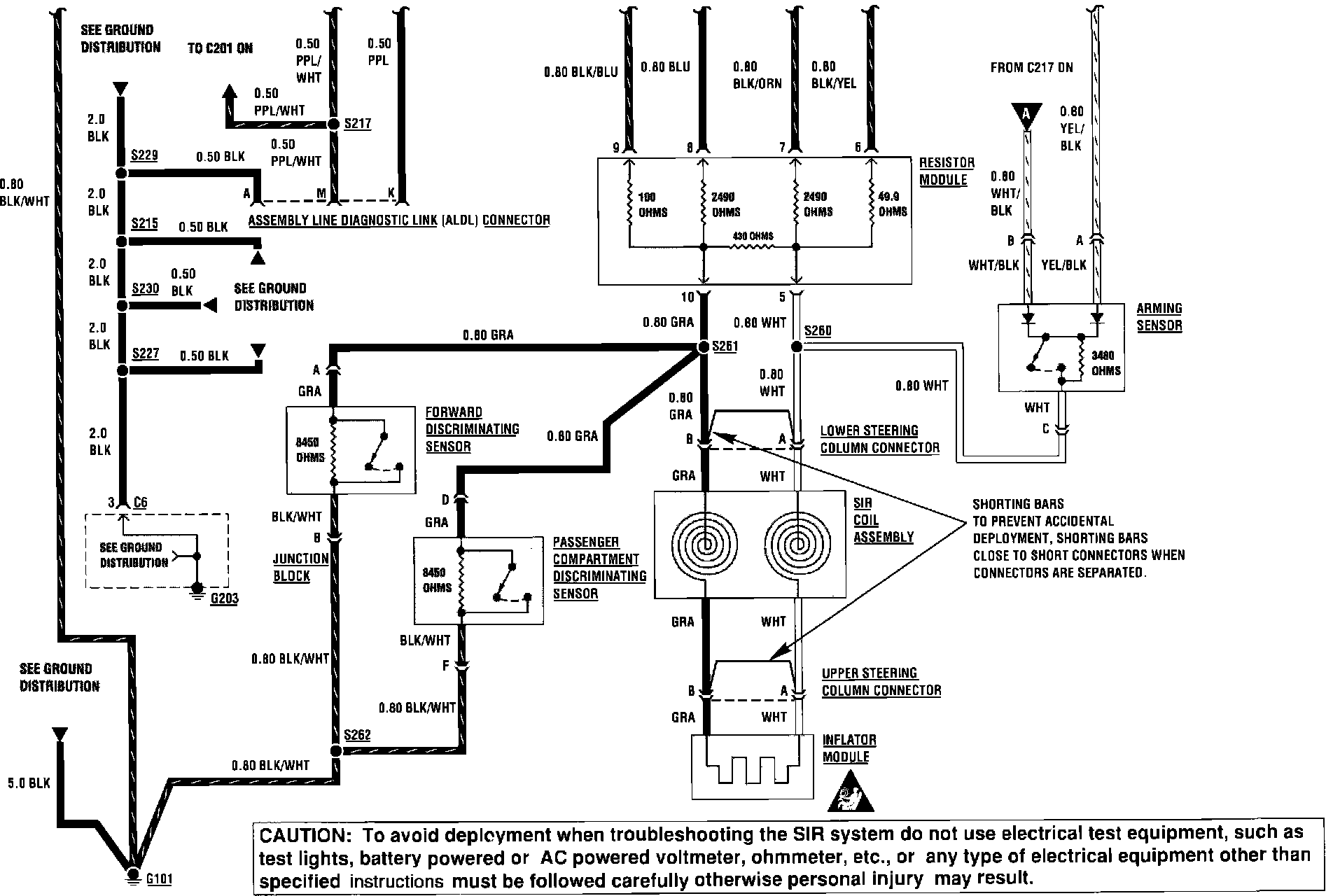

Supplemental Inflatable Restraint:



Supplemental Inflatable Restraint:
