SIR - Code 51 Chart Revised

Number: 93-17A-9J
Section: 9J
Date: OCT. 1992
Corporate Bulletin No.: 219007
ASE No.: B1

Subject:
SUPPLEMENTAL INFLATABLE RESTRAINT (SIR) CODE 51 CHART REVISED

Model and Year:
1990-93 STORM, 1992 CAMARO AND CORVETTE, 1992-93 CAPRICE, CORSICA, BERETTA AND METRO

THIS BULLETIN CANCELS AND SUPERSEDES DEALER SERVICE BULLETIN NO. 93-17-9J, DATED OCT. 1992. THE ARTWORK HAS BEEN ADDED. ALL COPIES OF 93-17-9J SHOULD BE DISCARDED.

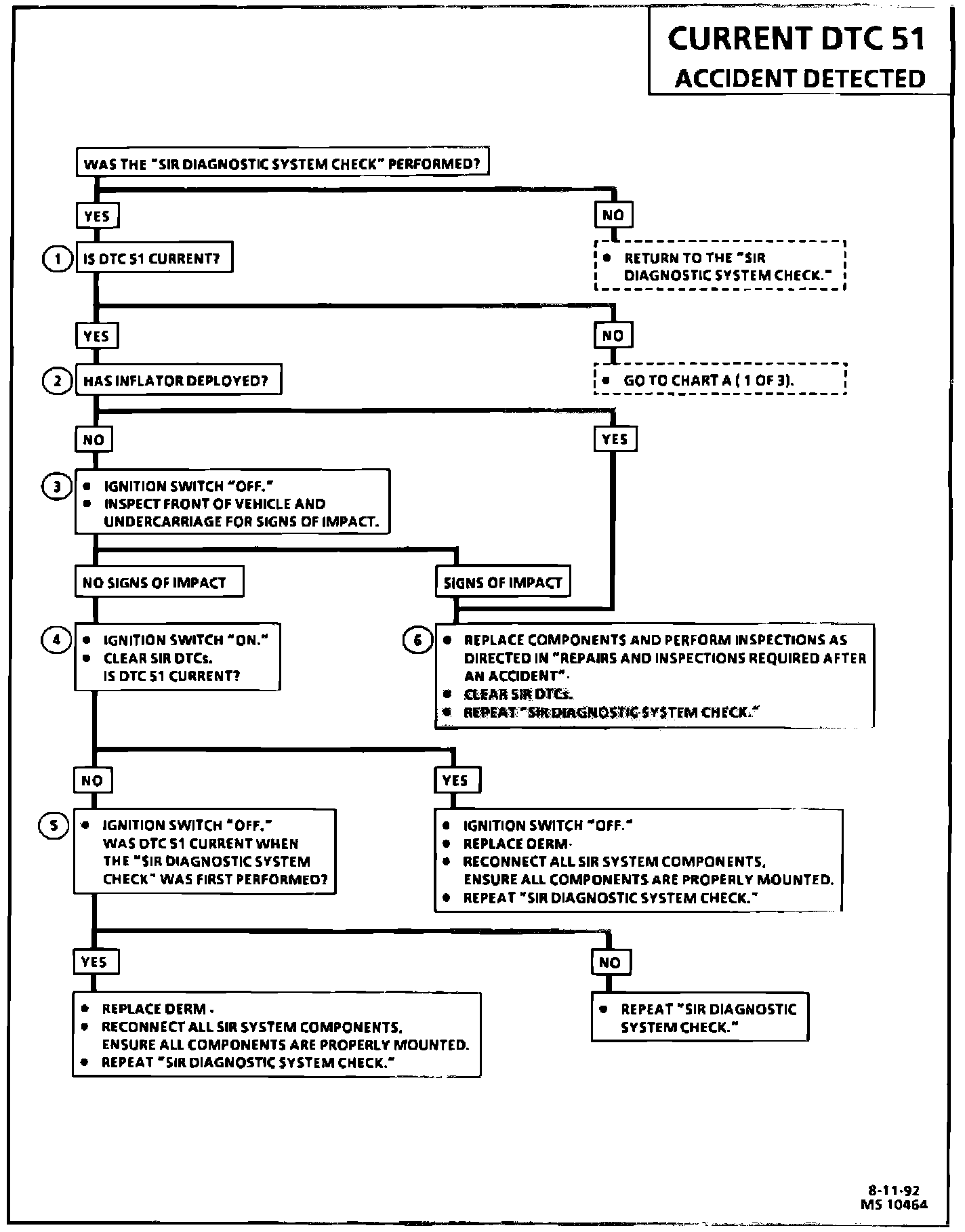

The following procedure (see illustration) is necessary after air bag deployment. DTC 51 (Accident Detected) will be set when a frontal crash with air bag deployment has occurred. After replacing SIR components DTC 51 will need to be cleared from the DERM. If DTC 51 is not cleared the SIR warning lamp will stay "ON."
