Prizm L4-1600cc 1.6L DOHC VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, A/T
Control Module, A/T

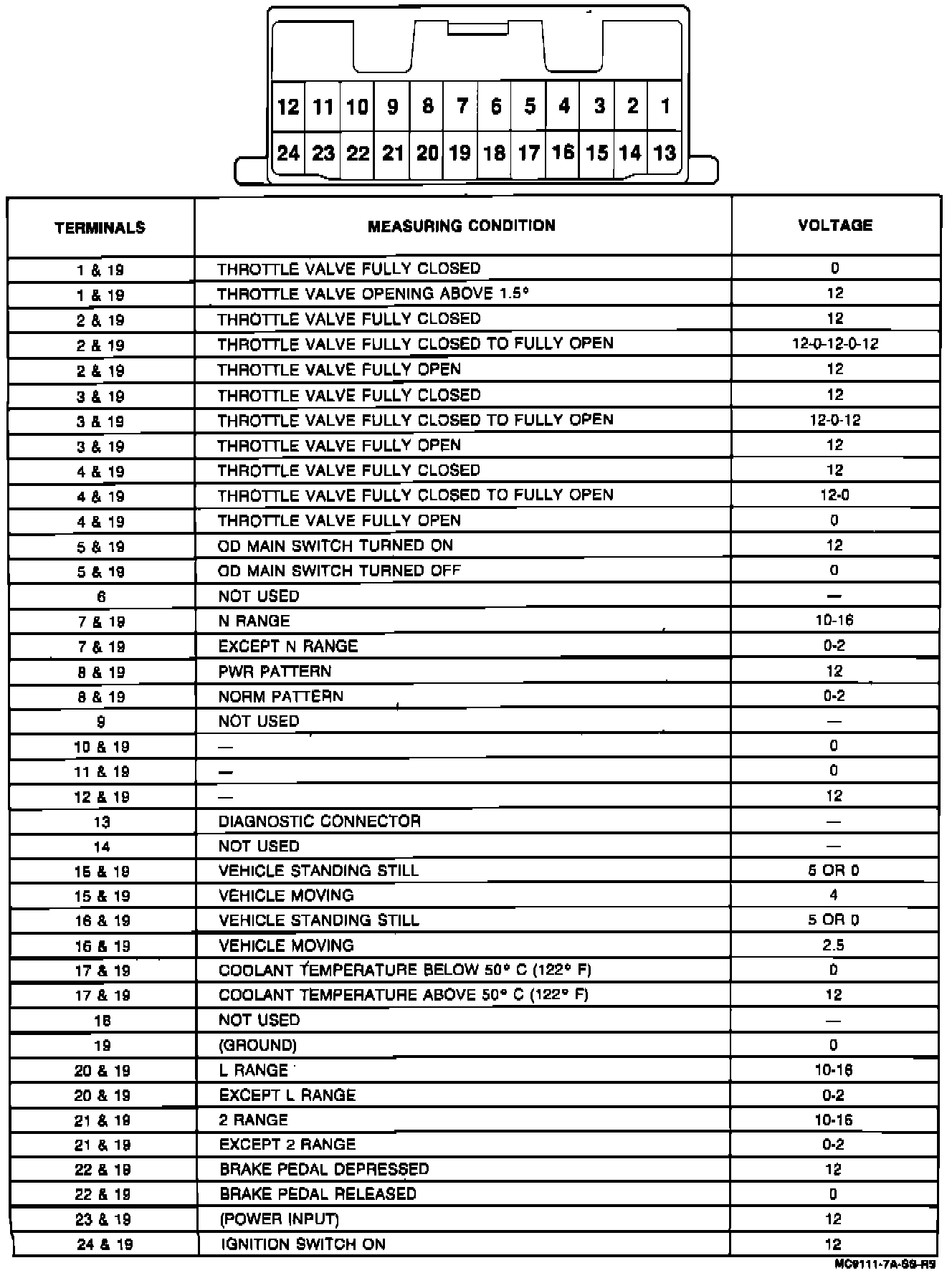

Automatic Transaxle Control Module (ATCM) Connector:
Voltage Readings - Automatic Transaxle Control Module Connector Cavities:
