Component Tests and General Diagnostics

Voltage Readings - Automatic Transaxle Control Module Connector Cavities:

Note:
- The following charts are for diagnosing automatic transaxle malfunction codes 42, 61, 62, 63, and 64.
- Start at Chart 1.

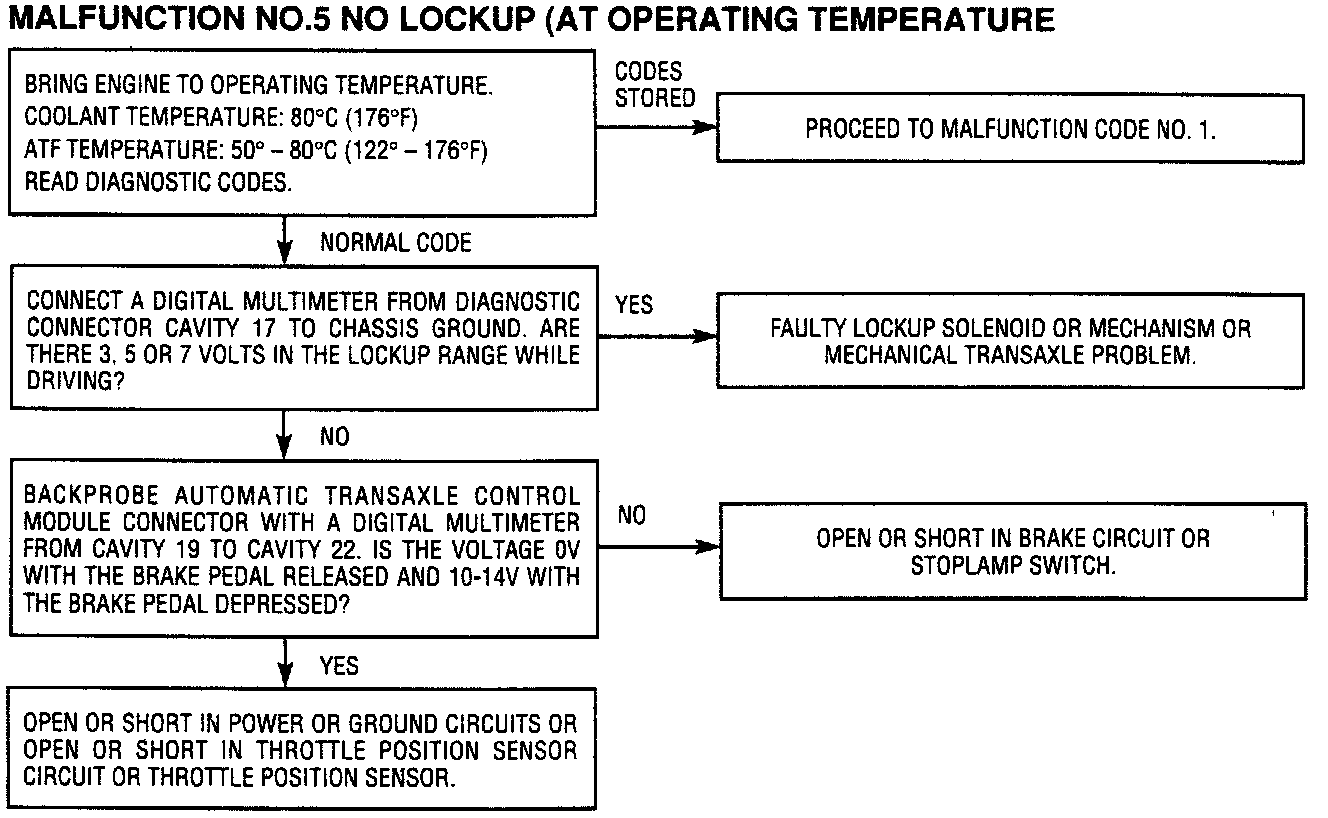

Automatic Transaxle Control Module Diagnostic Chart (1 of 4):

1 of 4

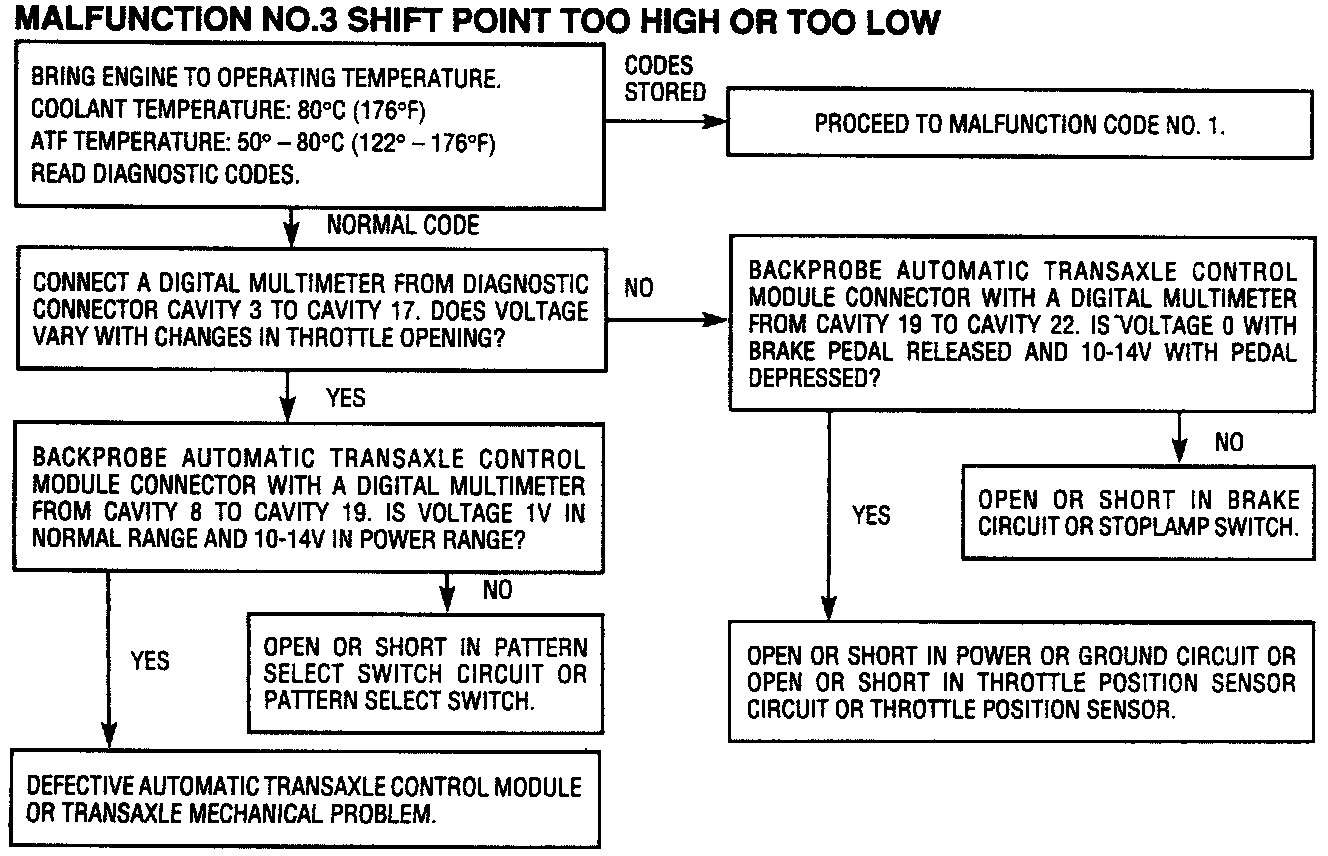

Automatic Transaxle Control Module Diagnostic Chart (2 of 4):

2 of 4

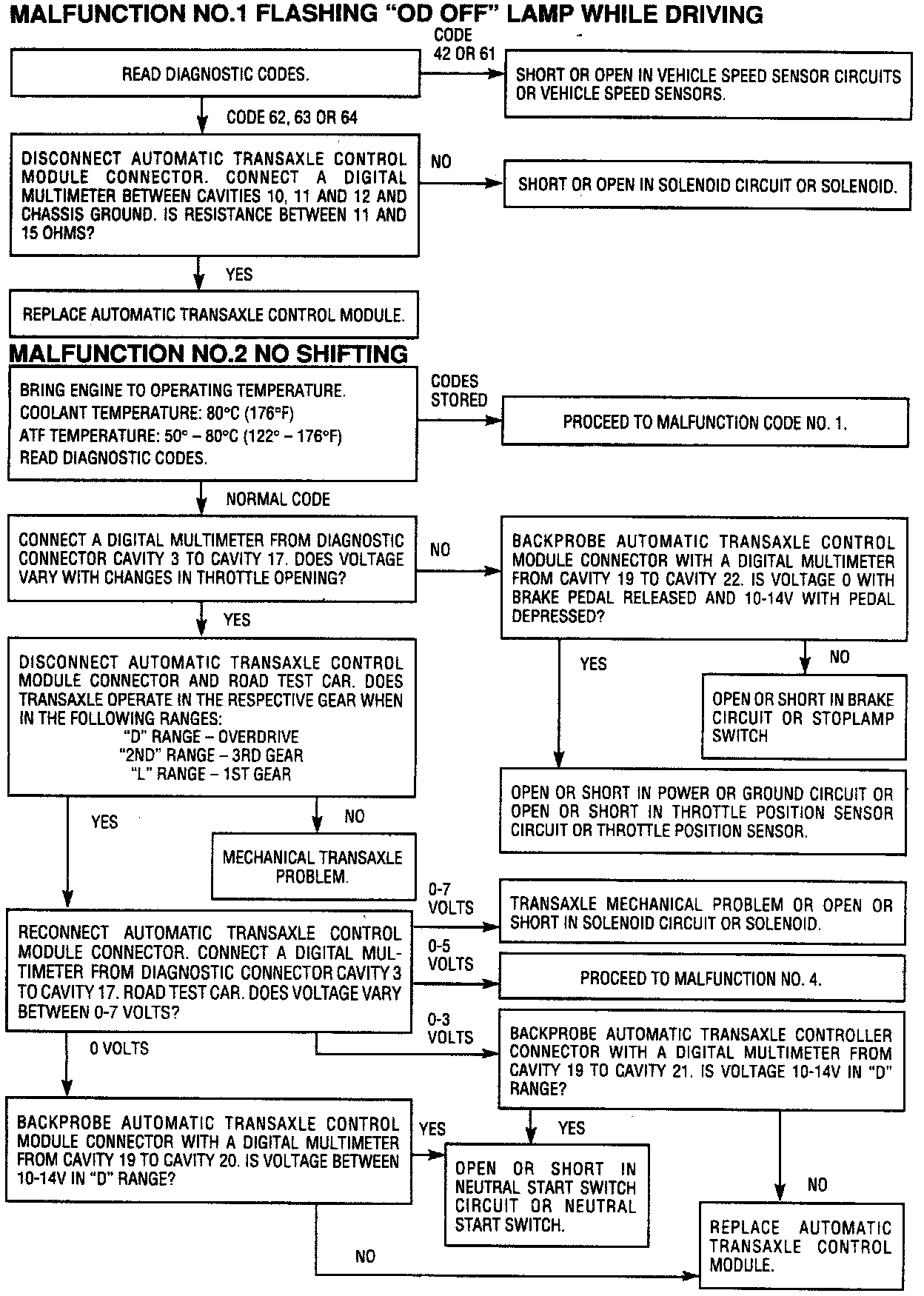

Automatic Transaxle Control Module Diagnostic Chart (3 of 4):

3 of 4

Automatic Transaxle Control Module Diagnostic Chart (4 of 4):

4 of 4
