Home >> Geo >> 1992 >> Prizm L4-1600cc 1.6L DOHC VIN 6 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Tail Lamp

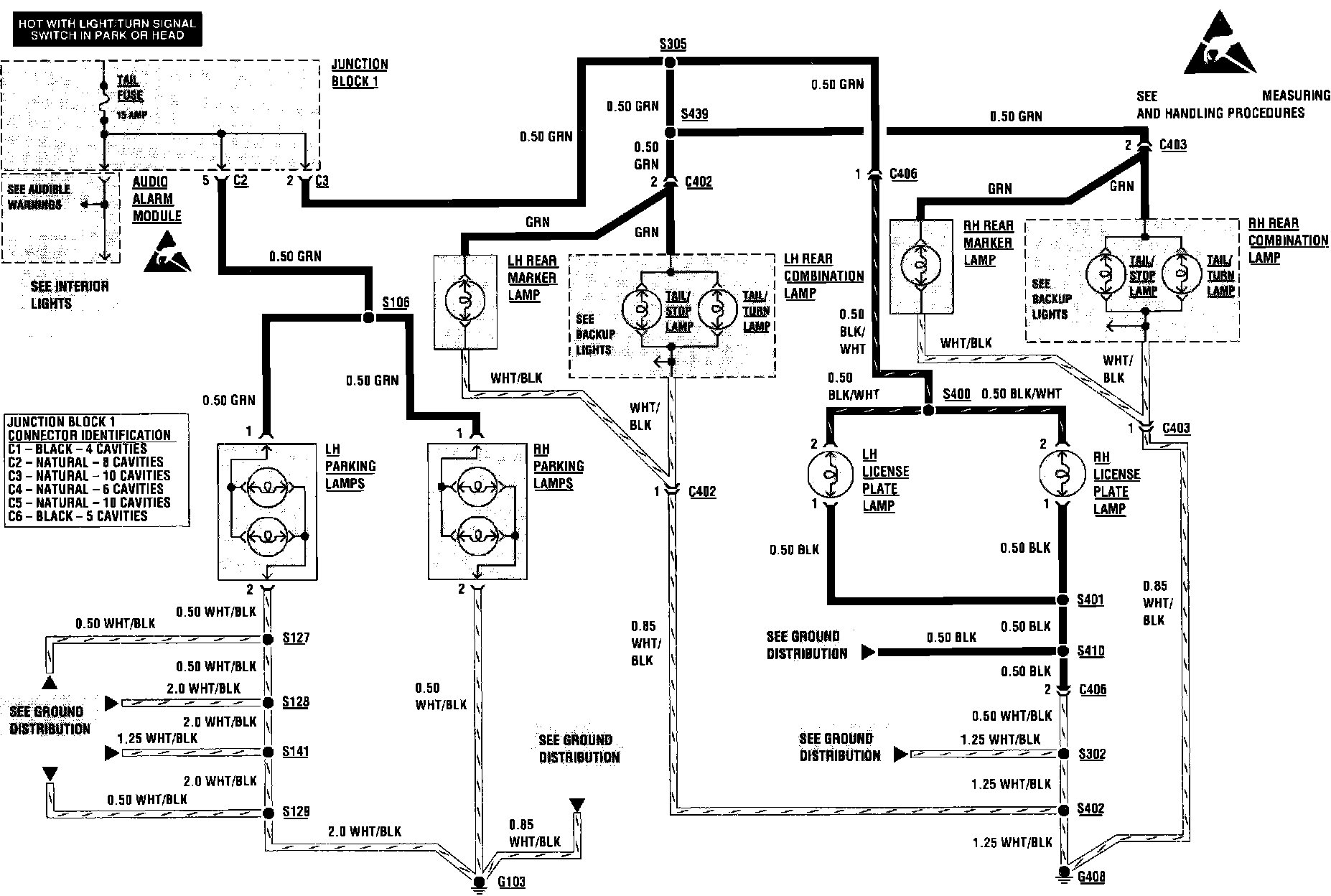

Tail Lamp

Exterior Lamps: Parking/Tail/Rear Marker/License:
