Compressor Controls

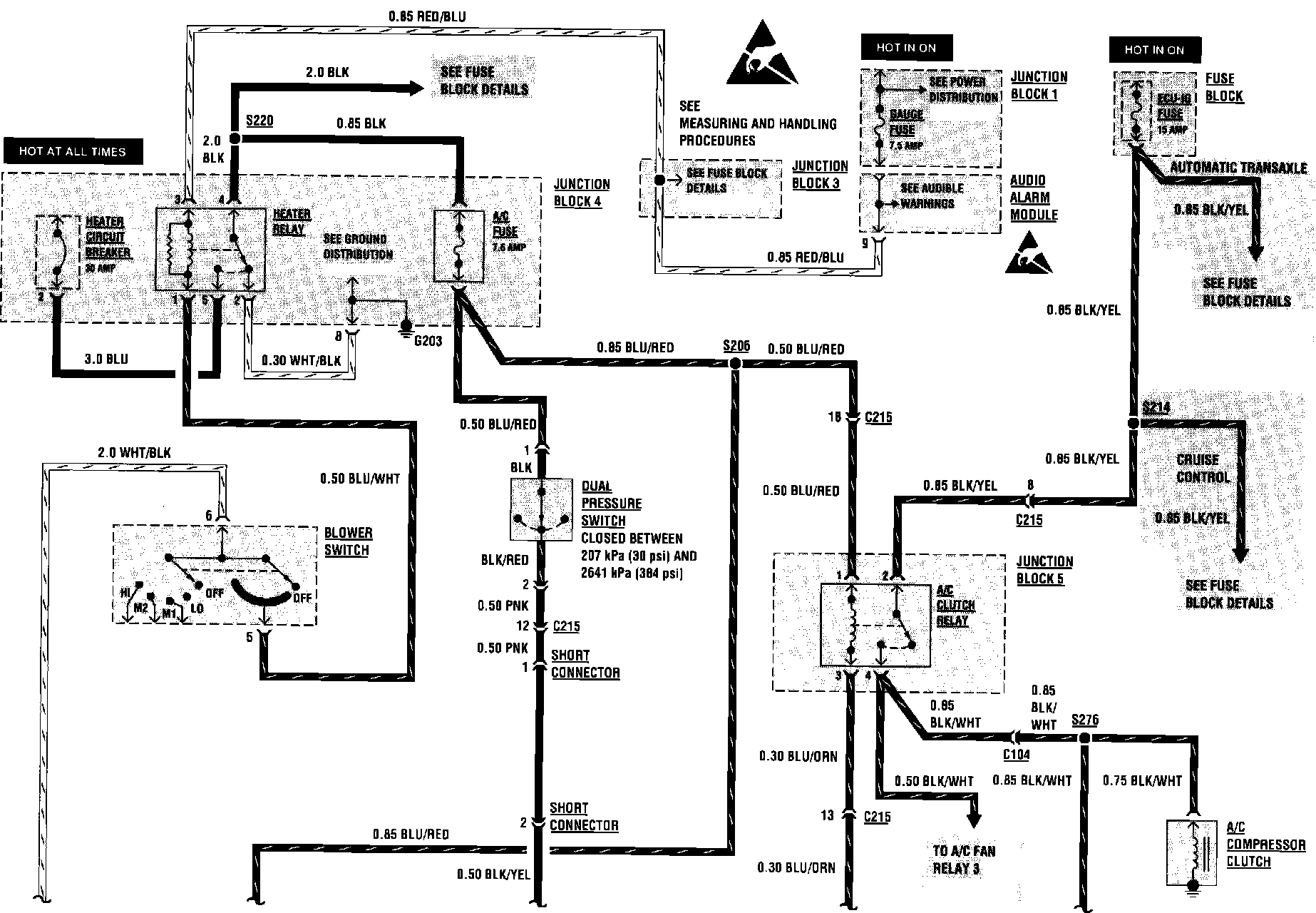

Air Conditioning: Compressor Controls (Base And LSi):

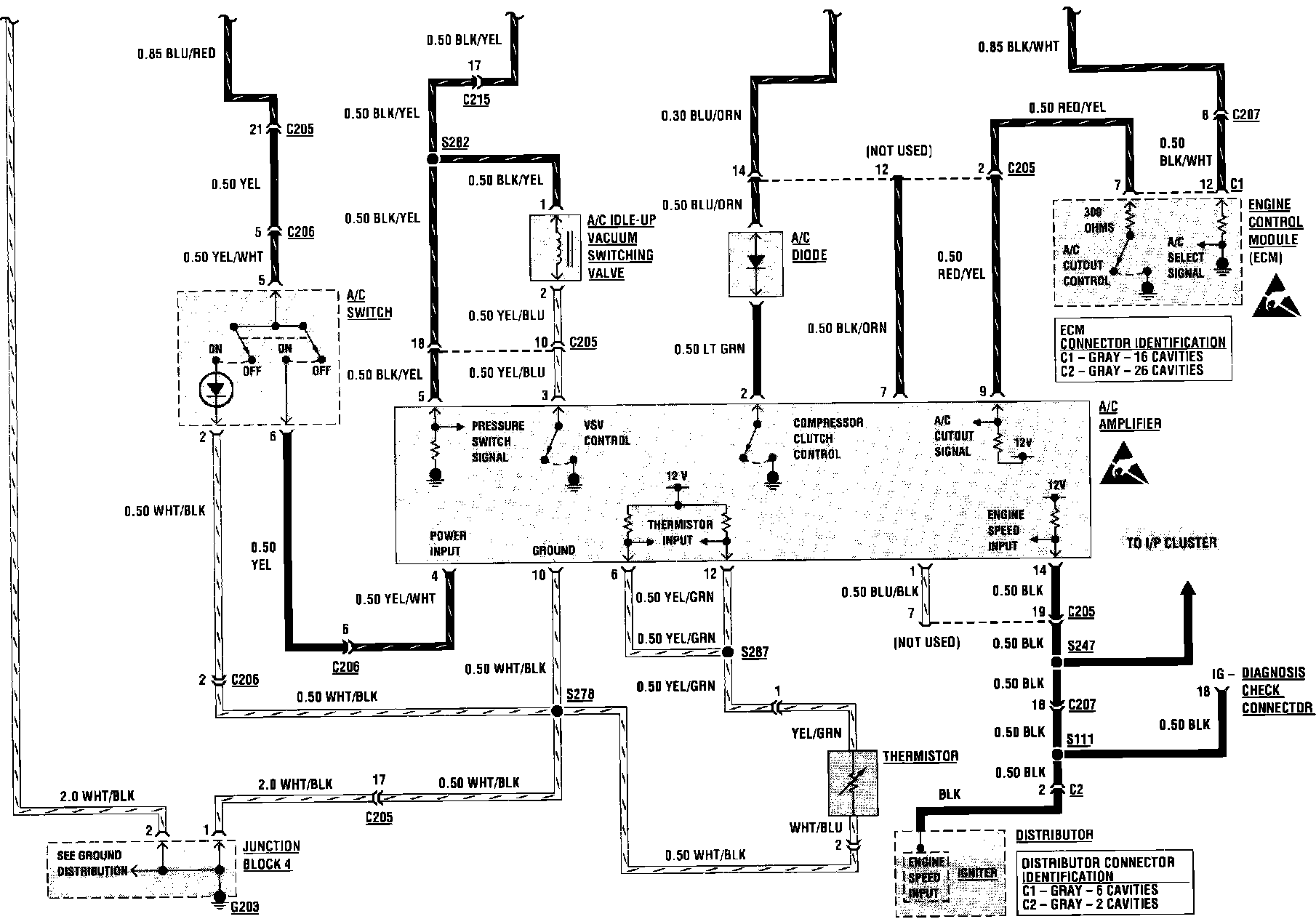

Air Conditioning: Compressor Controls (Base And LSi):
