Home
>>
Geo
>>
1992
>>
Prizm L4-1600cc 1.6L DOHC VIN 6
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power, Ground, Check Engine Indicator and Diagnostics
Power, Ground, Check Engine Indicator and Diagnostics

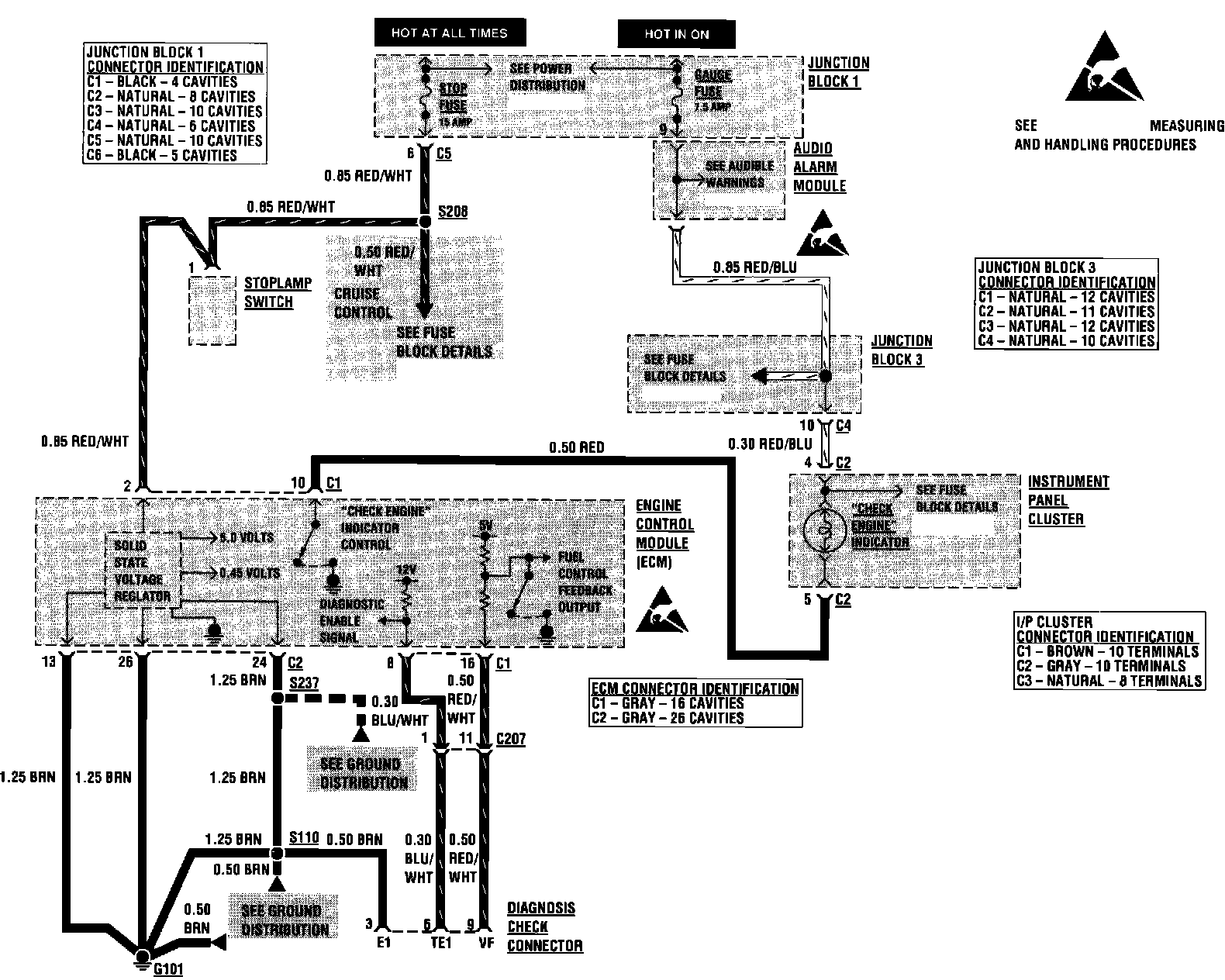

Engine Management: Power, Ground, Check Engine Indicator And Diagnostics:
