Fuel Injectors & Fuel Pump Control

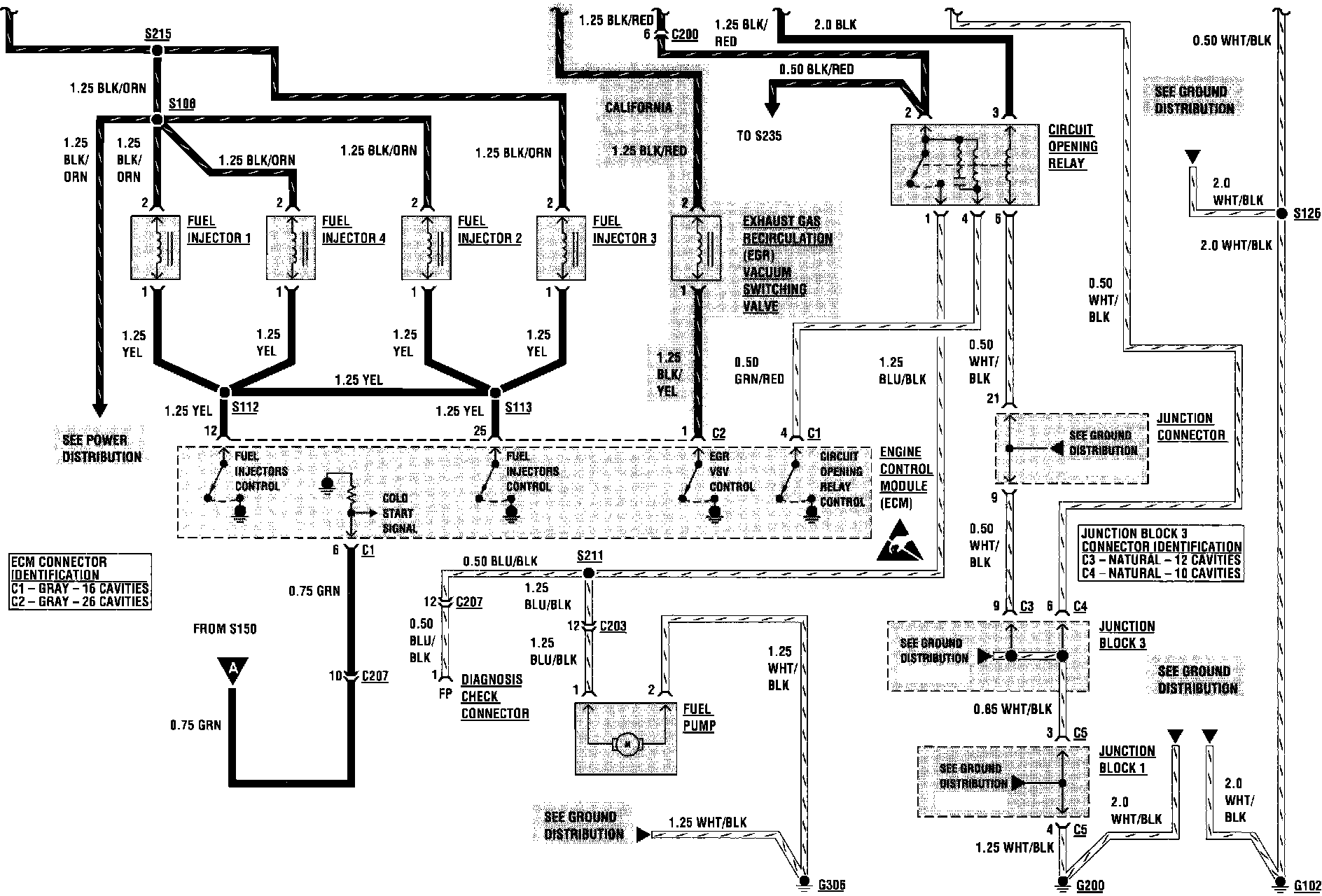

Engine Management: Fuel Injector And Fuel Pump Controls:



Engine Management: Fuel Injector And Fuel Pump Controls:
