DTC 35

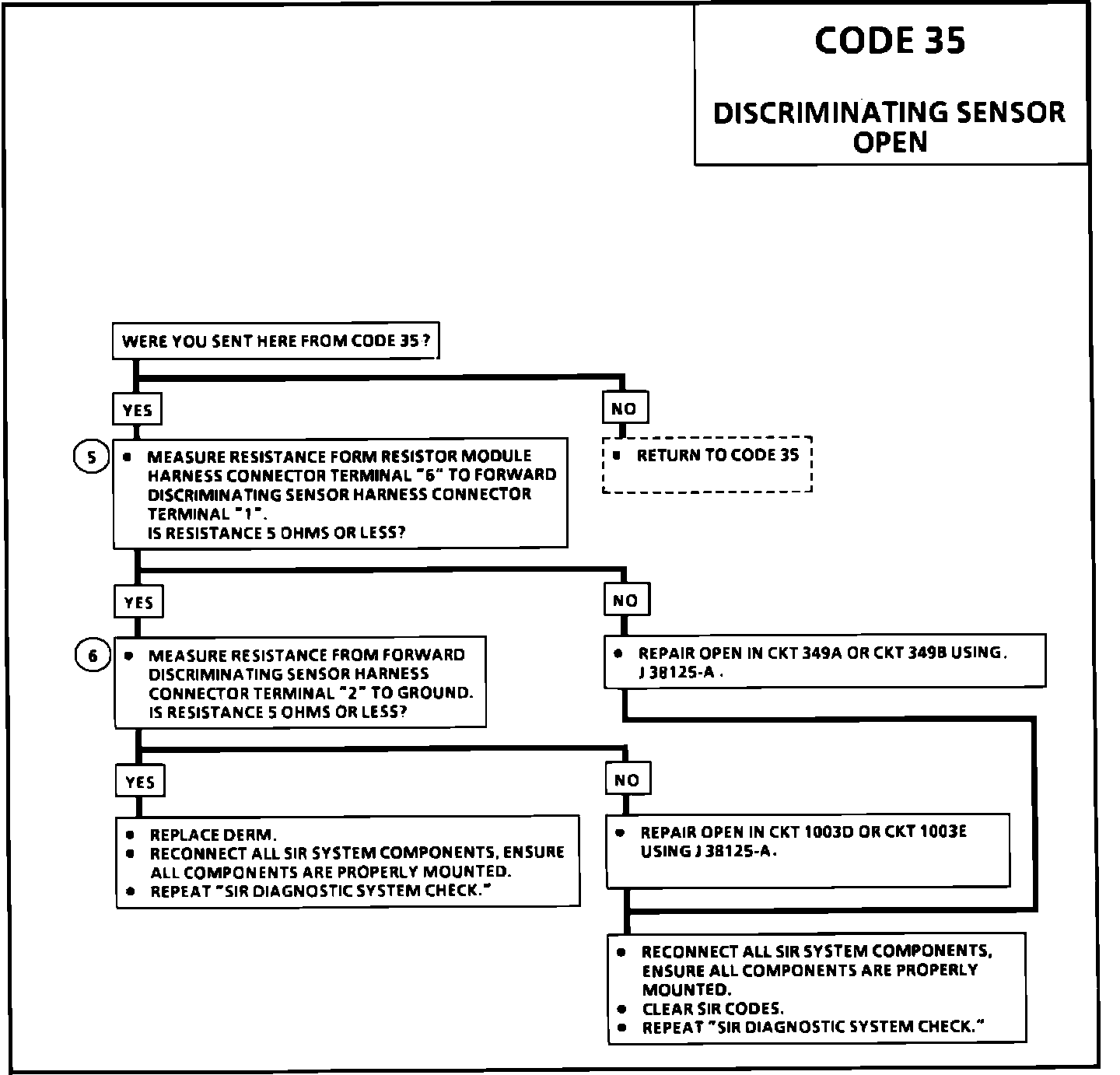

Fig. 532 Code 35, Discriminating Sensor Open (Part 1 Of 4):

Fig. 532 Code 35, Discriminating Sensor Open (Part 2 Of 4):

Fig. 532 Code 35, Discriminating Sensor Open (Part 3 Of 4):

Fig. 532 Code 35, Discriminating Sensor Open (Part 4 Of 4):
