1992
>>
Storm L4-1600cc 1.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
Connector C5 (16 Cavities)
Connector C5 (16 Cavities)

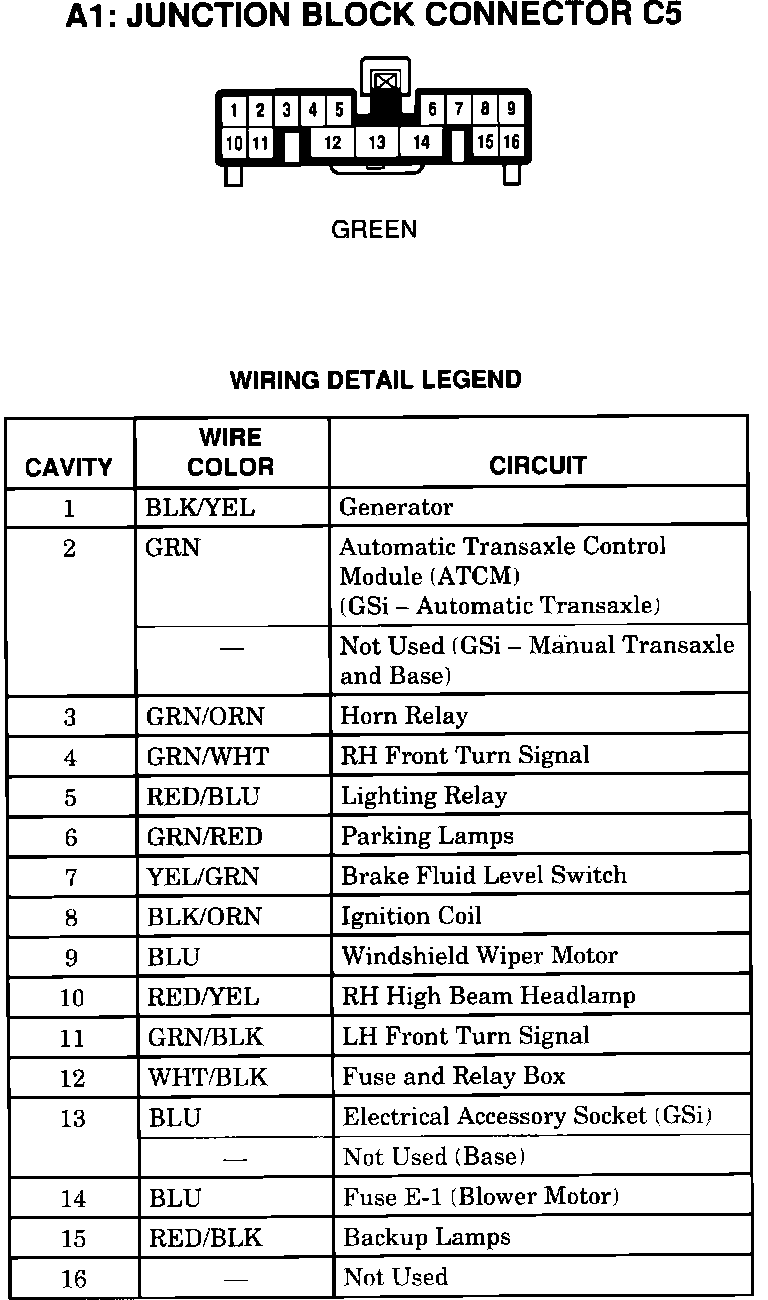

Junction Block Connector C5:
