Home >> Geo >> 1992 >> Storm L4-1600cc 1.6L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> ECM Connectors

ECM Connectors

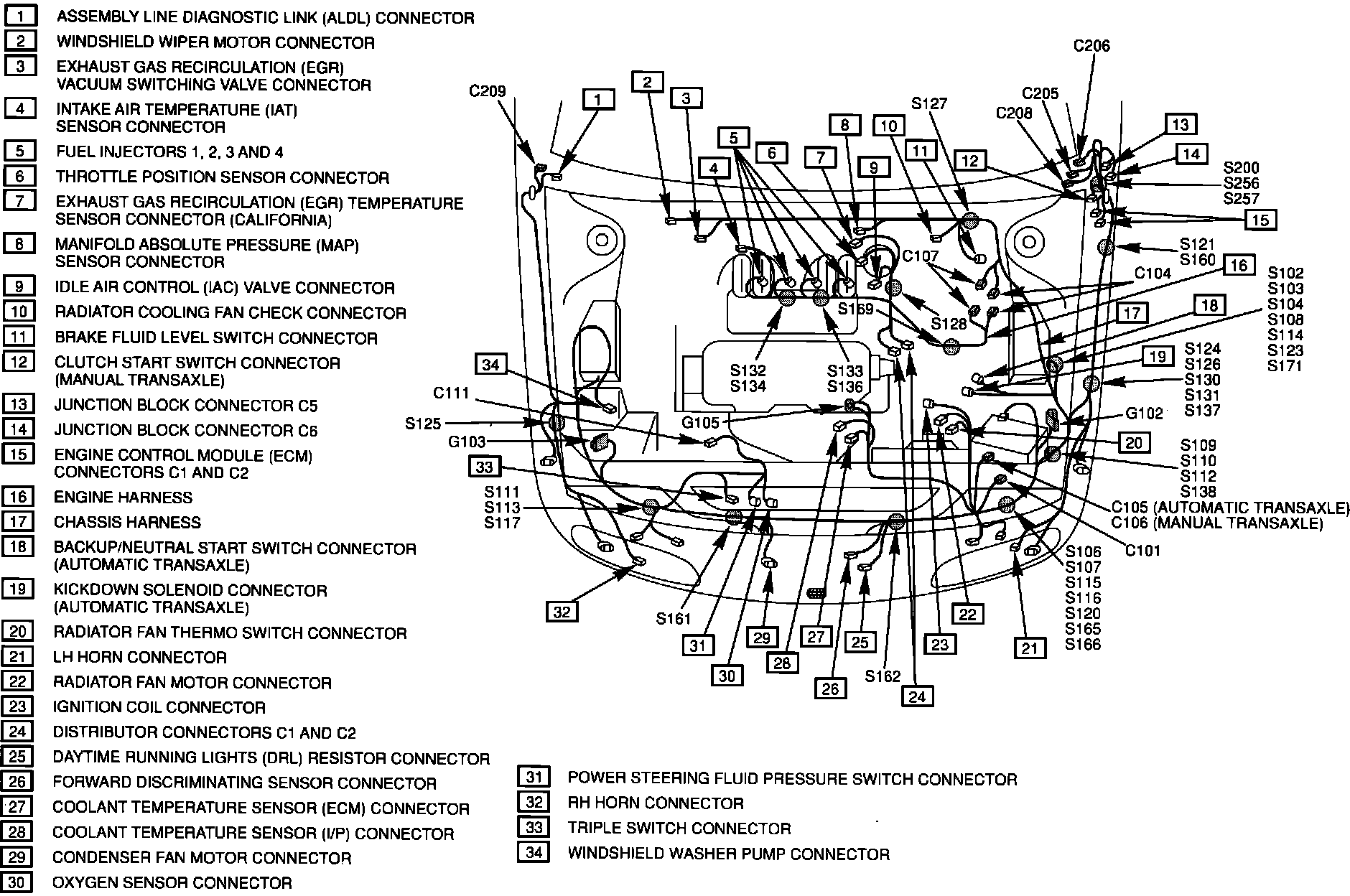

Engine And Chassis Harnesses (Base):
