Diagnostic Charts

Step A1: Backup Lamp Diagnosis:

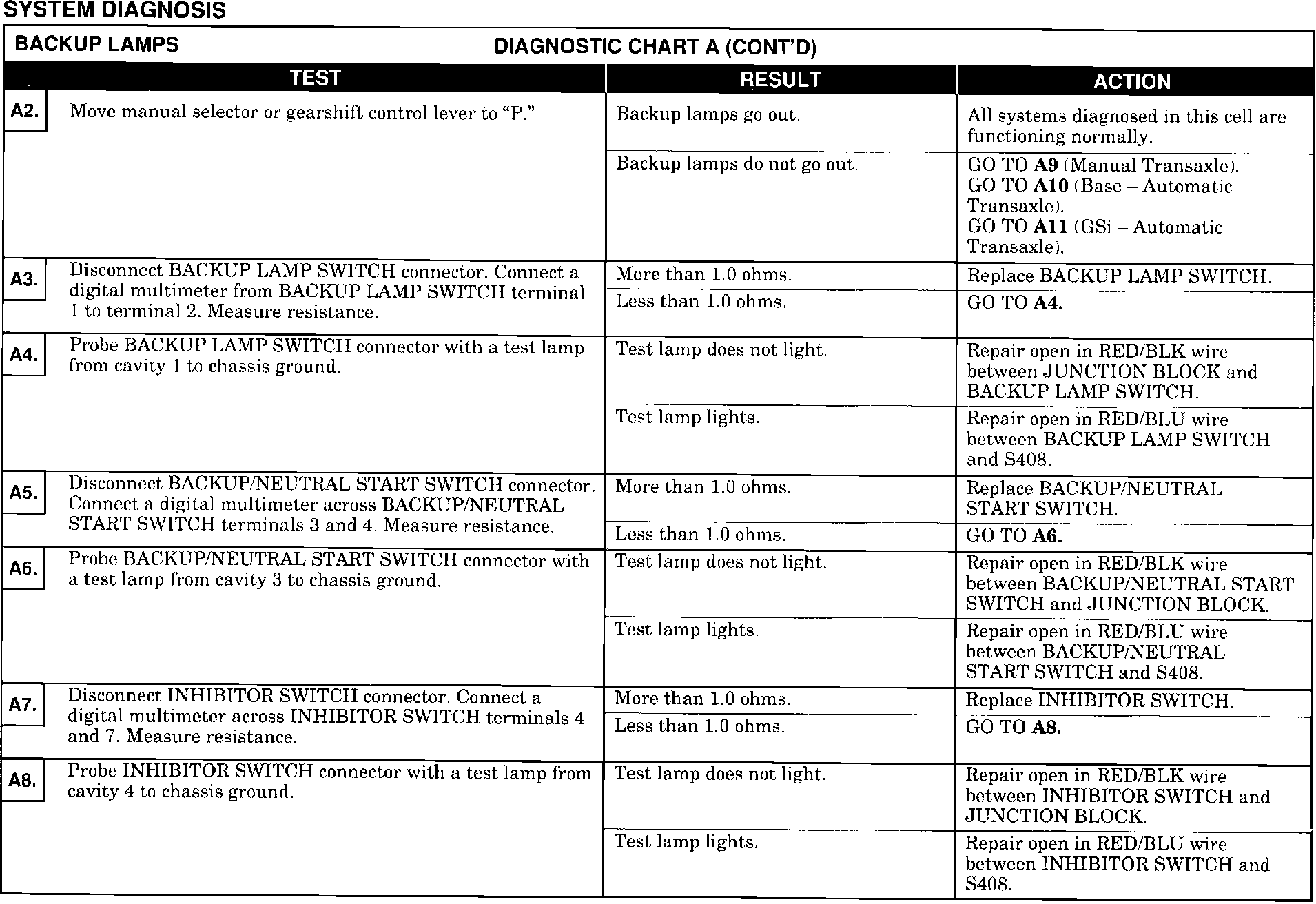

Steps A2-A8: Backup Lamps Diagnosis:





Steps A9-A11: Backup Lamps Diagnosis:
