Home >> Geo >> 1992 >> Storm L4-1600cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

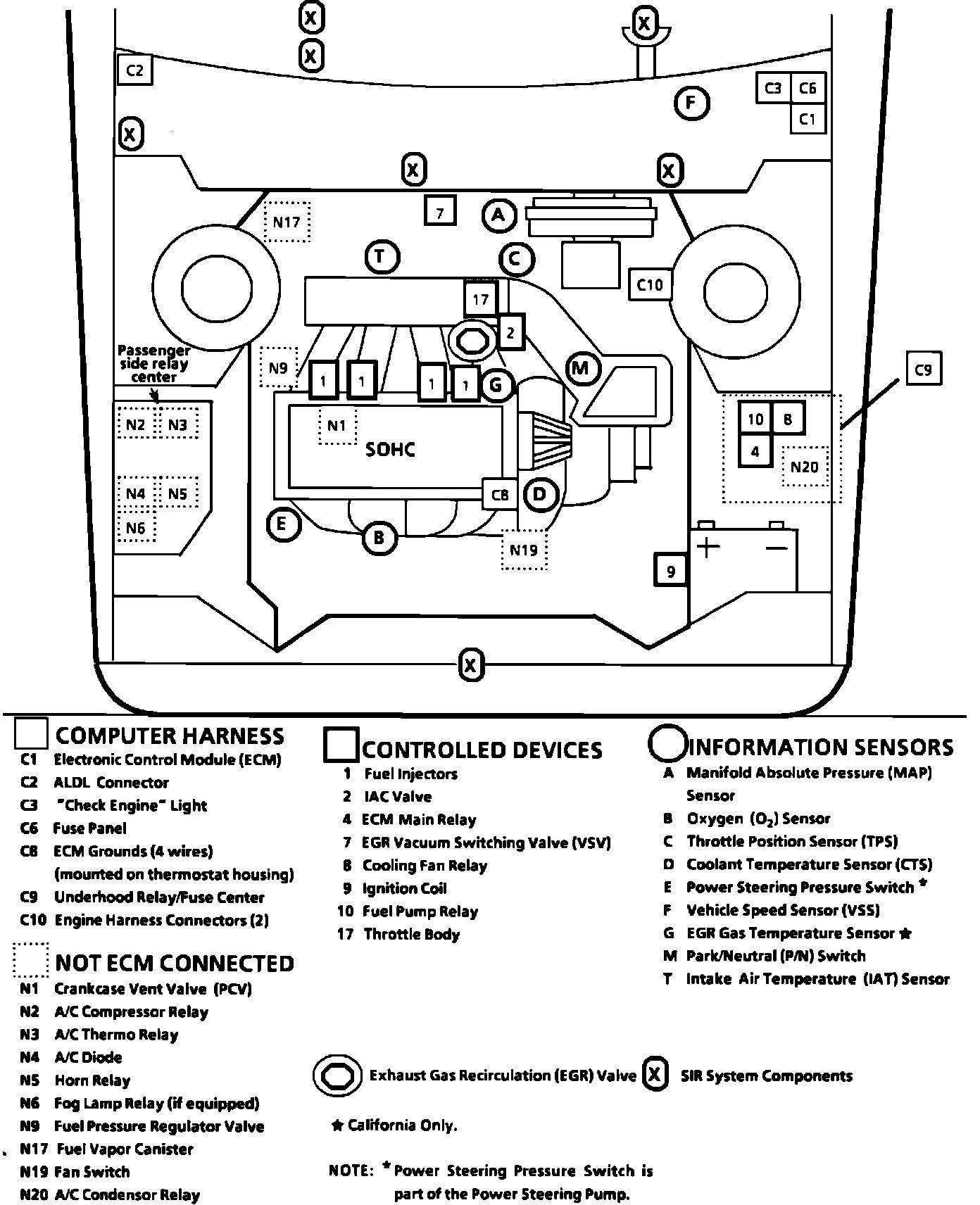

Underhood Block Diagram:
