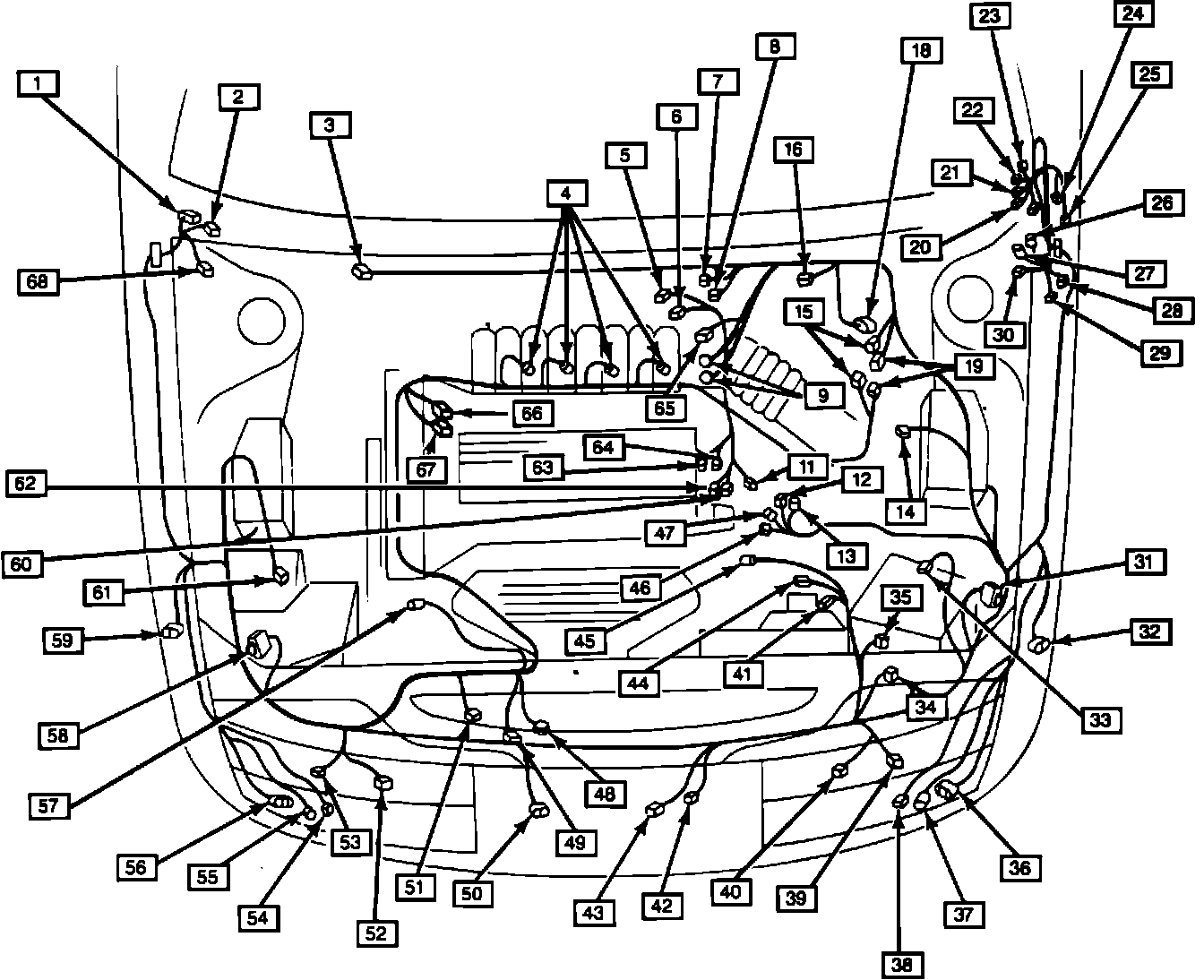

Underhood Block Diagram

Underhood Block Diagram:

1 = C209
2 = ALDL CONNECTOR
3 = TO WINDSHIELD WIPER MOTOR
4 = TO FUEL INJECTORS
5 = TO IAT SENSOR
6 = TO EGR TEMPERATURE SENSOR (CALIFORNIA)
7 = TO MAP SENSOR
8 = TO THROTTLE POSITION SENSOR
9 = GROUND G104
11 = TO COOLANT TEMPERATURE SENSOR (I/P)
12 = TO VEHICLE SPEED SENSOR (AUTOMATIC TRANSAXLE)
13 = TO INHIBITOR SWITCH (AUTOMATIC TRANSAXLE)
14 = TO DROPPING RESISTOR (AUTOMATIC TRANSAXLE)
15 = C103
16 = RADIATOR COOLING FAN CHECK CONNECTOR
18 = TO BRAKE FLUID LEVEL SWITCH
19 = C108
20 = TO INTERMITTENT WIPER RELAY
21 = C205
22 = C207
23 = C208
24 = TO JUNCTION BLOCK
25 = TO JUNCTION BLOCK
26 = TO ATCM (AUTOMATIC TRANSAXLE)
27 = TO ATCM (AUTOMATIC TRANSAXLE)
28 = TO ECM
29 = TO ECM
30 = TO JUNCTION BLOCK
31 = GROUND G102
32 = TO LH SIDE MARKER LAMP
33 = GROUND
34 = C100
35 = C102 (AUTOMATIC TRANSAXLE) C109 (MANUAL TRANSAXLE)
36 = TO LH FRONT COMBINATION LAMP
37 = TO LH FOG LAMP
38 = TO LH HORN
39 = TO LH LOW BEAM HEADLAMP
40 = TO LH HIGH BEAM HEADLAMP
41 = TO RADIATOR FAN MOTOR
42 = TO DAYTIME RUNNING LIGHTS (DRL) RESISTOR
43 = TO FORWARD DISCRIMINATING SENSOR
44 = TO RADIATOR FAN THERMO SWITCH
45 = TO IGNITION COIL
46 = TO TRANSAXLE SOLENOID ASSEMBLY (AUTOMATIC TRANSAXLE)
47 = TO INHIBITOR SWITCH (AUTOMATIC TRANSAXLE)
48 = TO OXYGEN SENSOR
49 = TO POWER STEERING FLUID PRESSURE SWITCH
50 = TO CONDENSER FAN MOTOR
51 = TO TRIPLE SWITCH
52 = TO RH HIGH BEAM HEADLAMP
53 = TO RH LOW BEAM HEADLAMP
54 = TO RH HORN
55 = TO RH FOG LAMP
56 = TO RH FRONT COMBINATION LAMP
57 = TO A/C COMPRESSOR CLUTCH
58 = GROUND G103
59 = TO RH SIDE MARKER LAMP
60 = TO DISTRIBUTOR
61 = TO WINDSHIELD WASHER PUMP
62 = TO DISTRIBUTOR
63 = TO A/C THERMO SWITCH
64 = TO COOLANT TEMPERATURE SENSOR (ECM)
65 = TO IDLE AIR CONTROL (IAC) VALVE
66 = TO CANISTER PURGE VACUUM SWITCHING VALVE
67 = TO EGR VACUUM SWITCHING VALVE
68 = TO TRANSAXLE DIAGNOSTIC CONNECTOR (AUTOMATIC TRANSAXLE)
