1992
>>
Storm L4-1800cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
>>

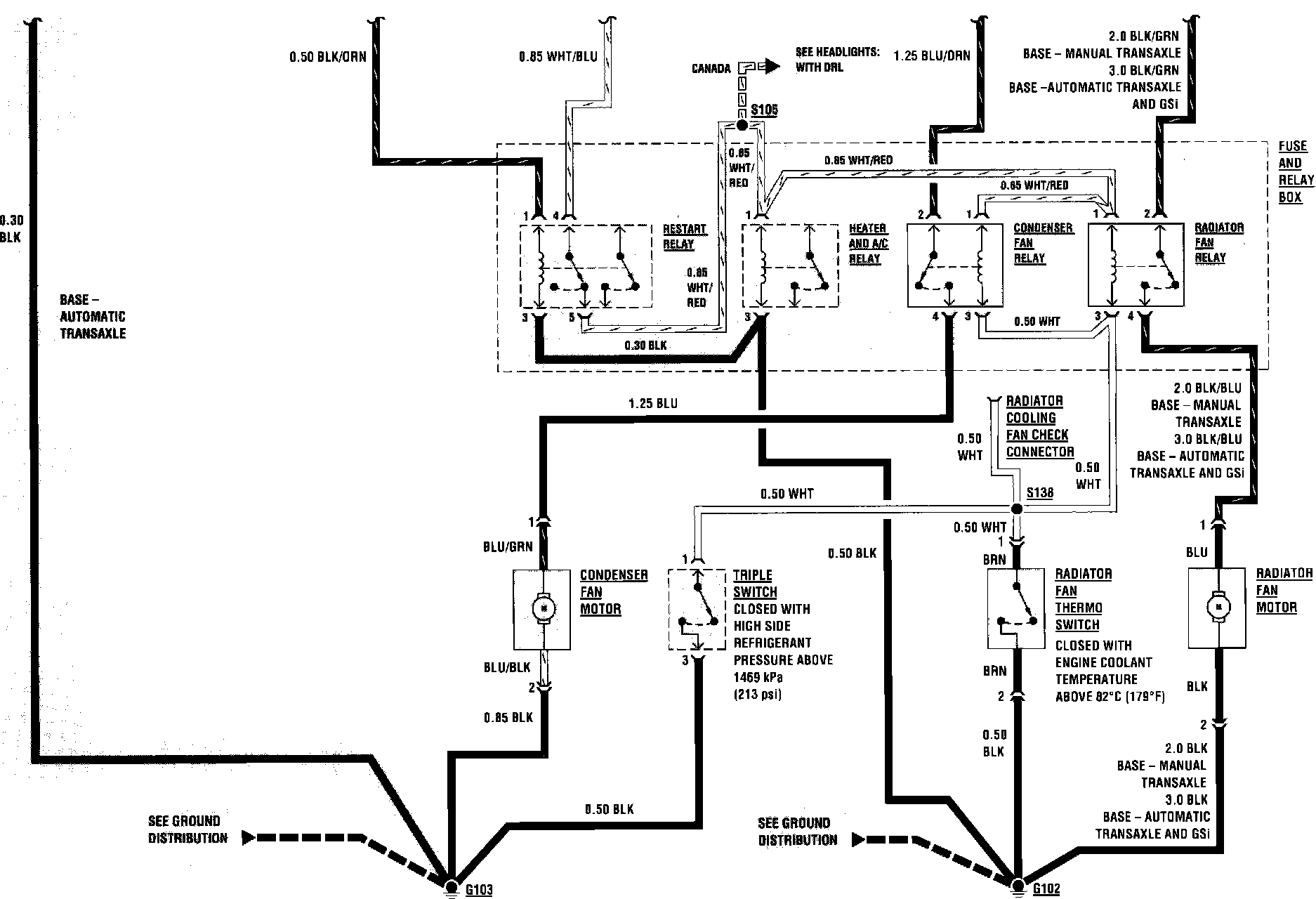

Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

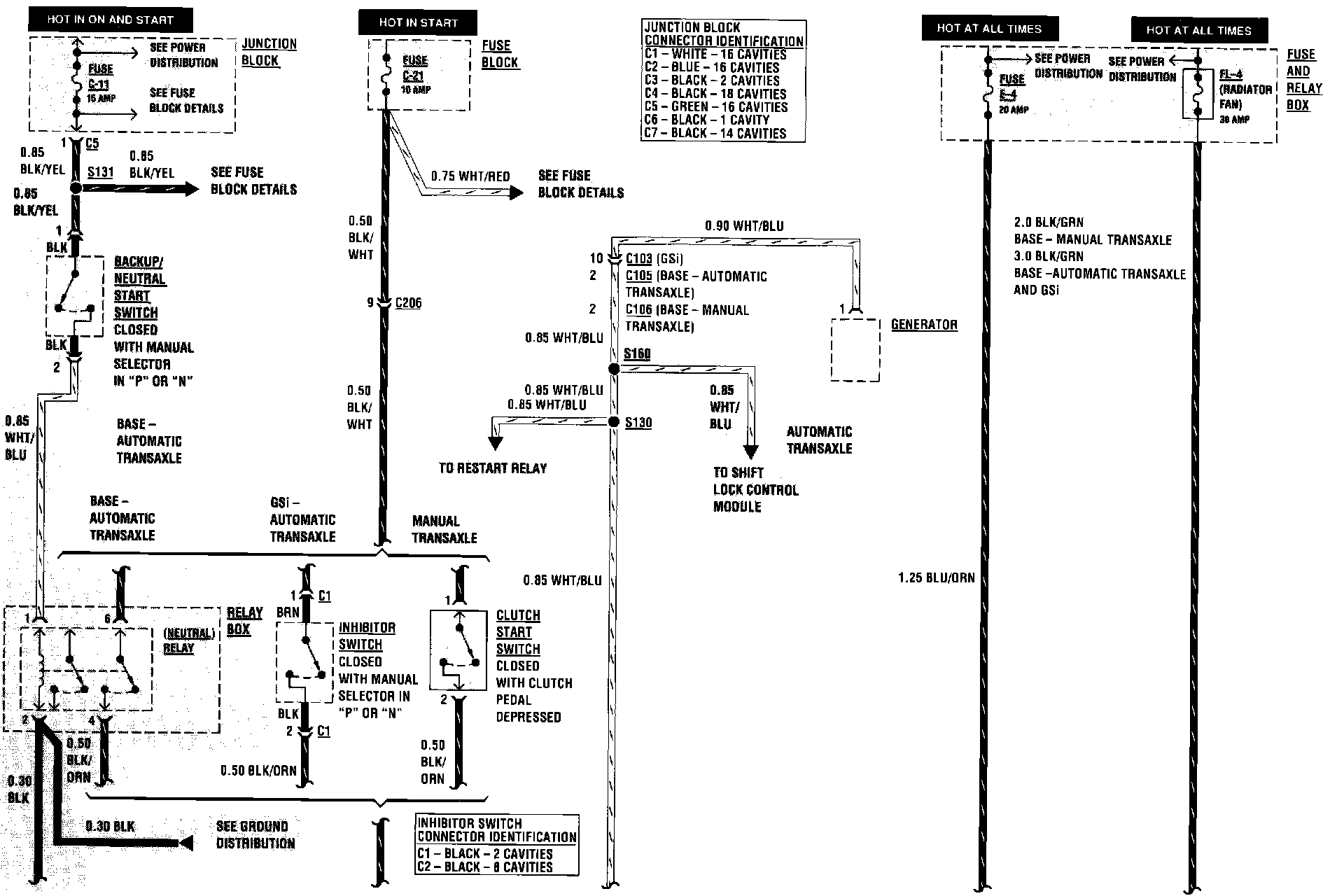

Cooling Fan:
Cooling Fan:
