Storm L4-1800cc 1.8L DOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>

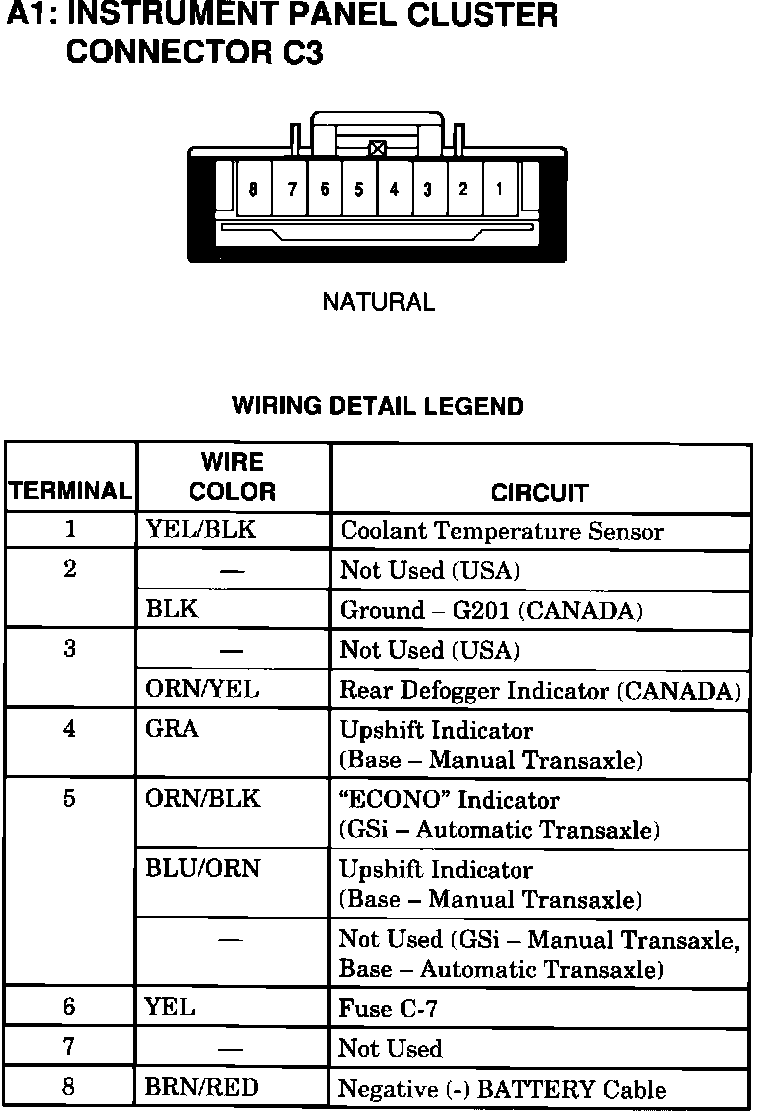

Instrument Cluster Connector
>>
C3 (8 Cavities)
C3 (8 Cavities)
Instrument Panel Cluster:
