1993
>>
Metro L3-61 1.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C8
C8

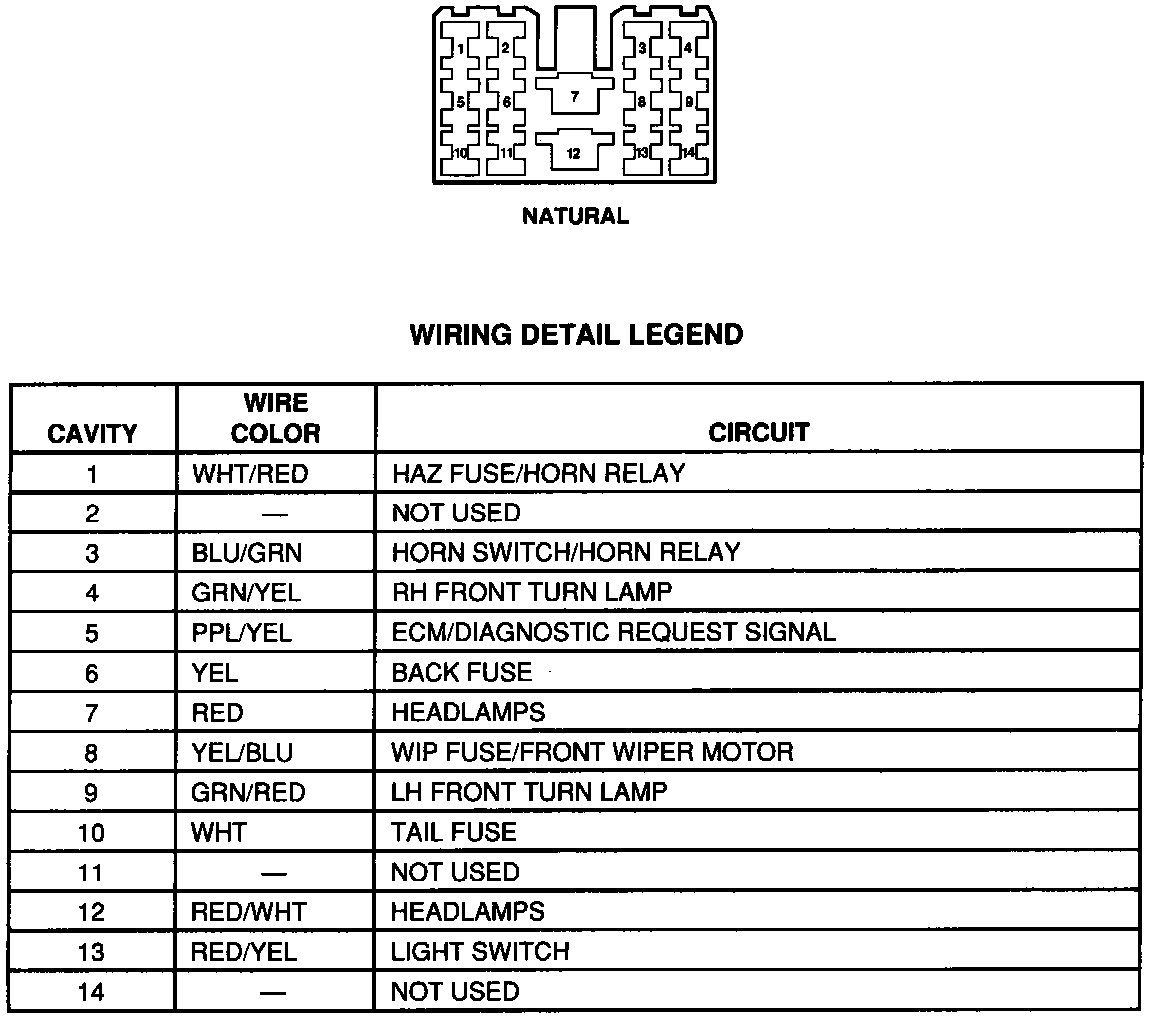

Harness Connector Faces: Junction Block C8, & Wiring Legend:
