Electronic/Powertrain Control Module (ECM/PCM)

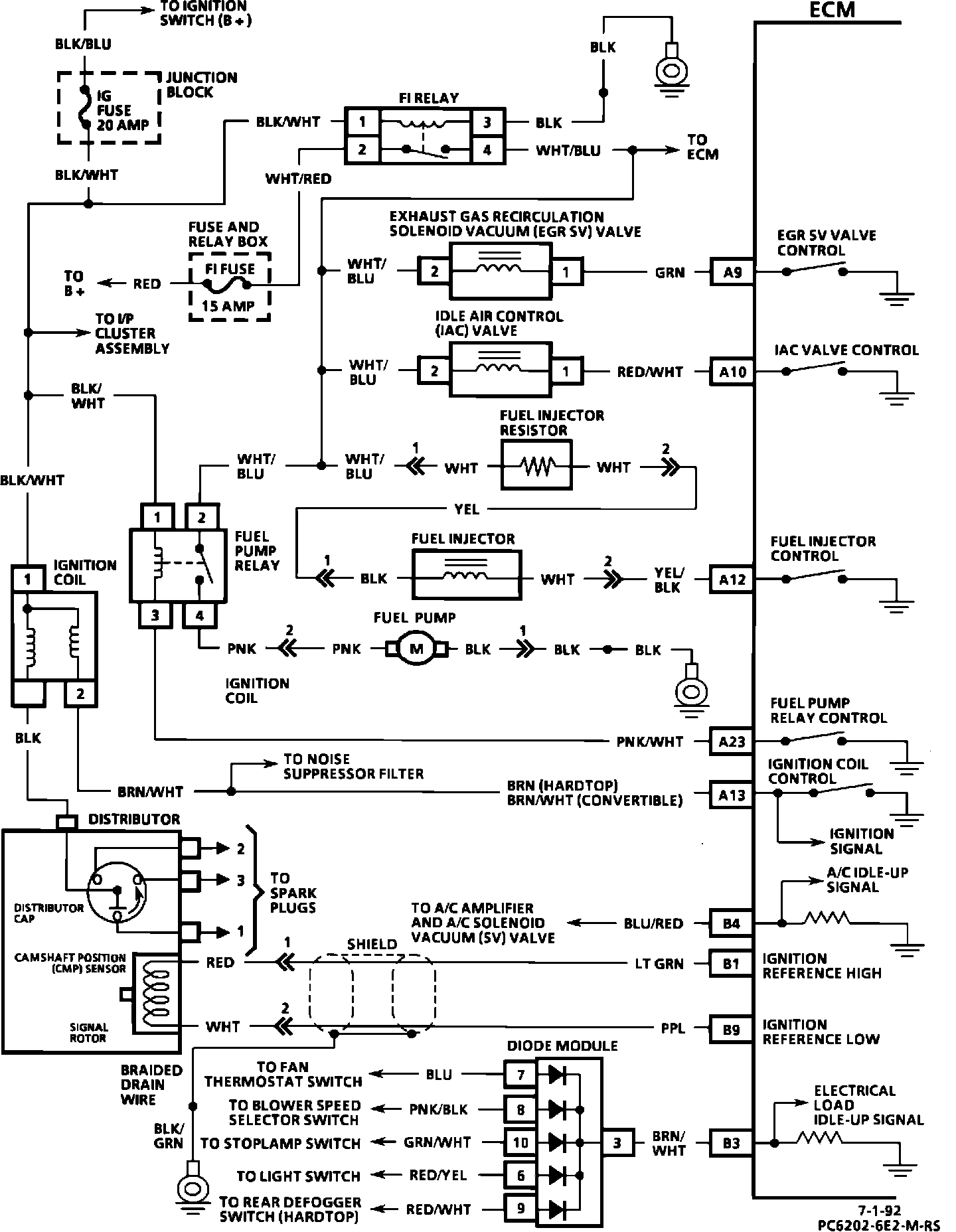

ECM Wiring 93 Metro:



ECM Wiring 93 Metro:



ECM Wiring 93 Metro:
