Chart E Warning Lamp Does Not Come "ON" Steady During Crank

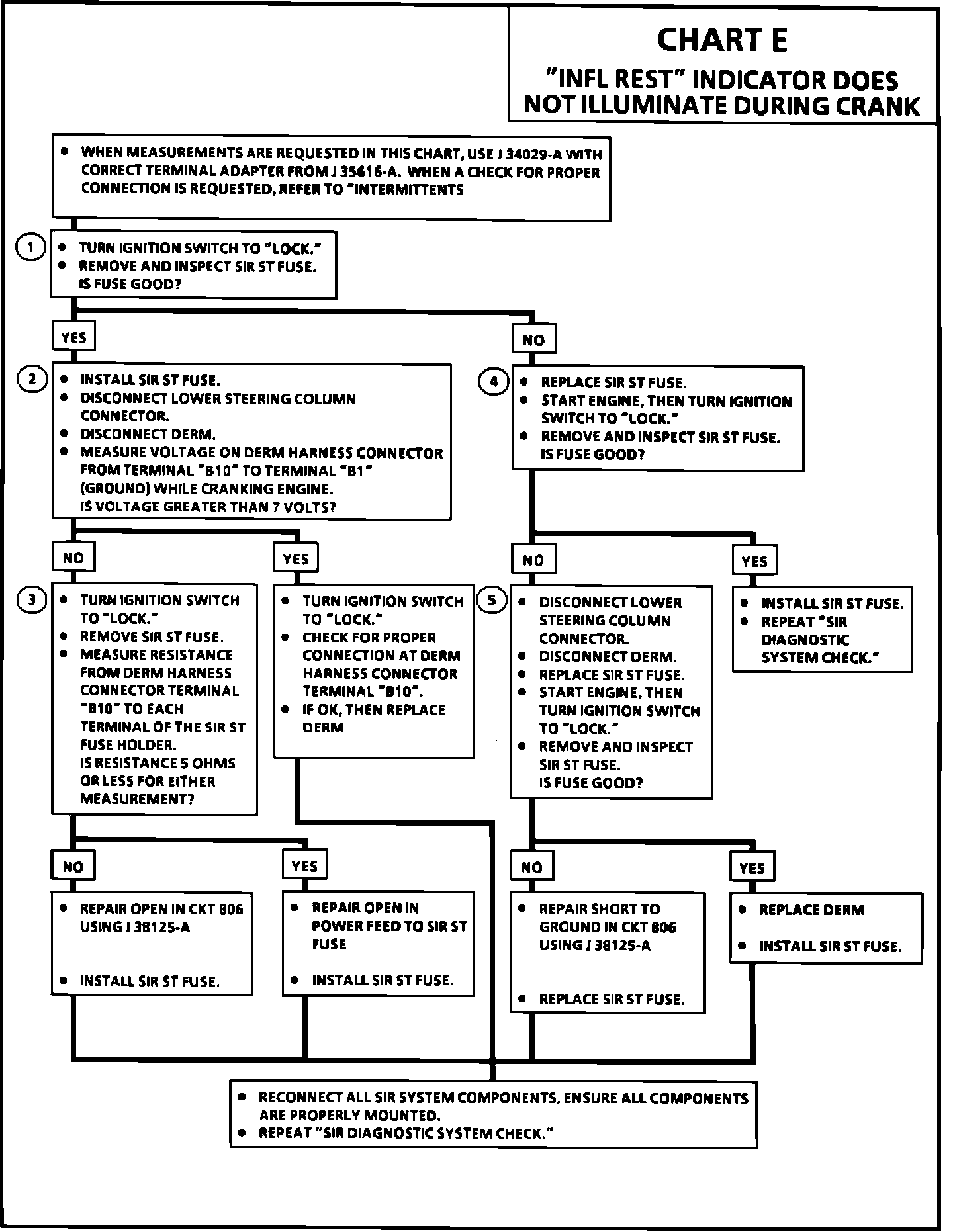

Fig. 370 Chart E, INFL REST Indicator Does Not Illuminate During Crank (Part 1 of 2):



Fig. 370 Chart E, INFL REST Indicator Does Not Illuminate During Crank (Part 2 of 2):
