Home >> Geo >> 1993 >> Metro L3-61 1.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G100 and G101 >> Hardtop

Hardtop

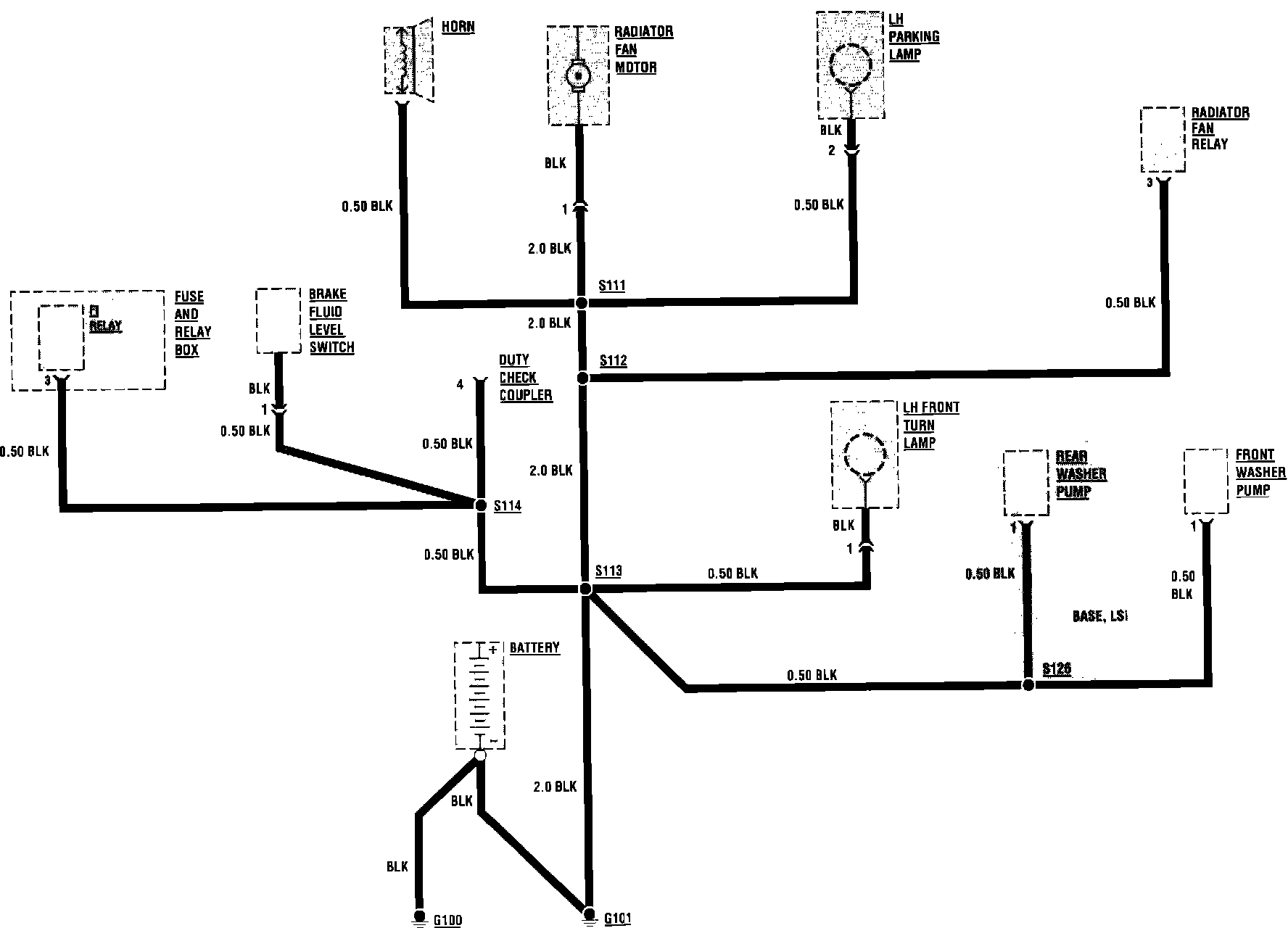

Ground Distribution:
